Sony HCD-GRX5 - Schematic Diagram - MAIN Section (4;4)

– 51 –
– 52 –
HCD-GRX5/RX66

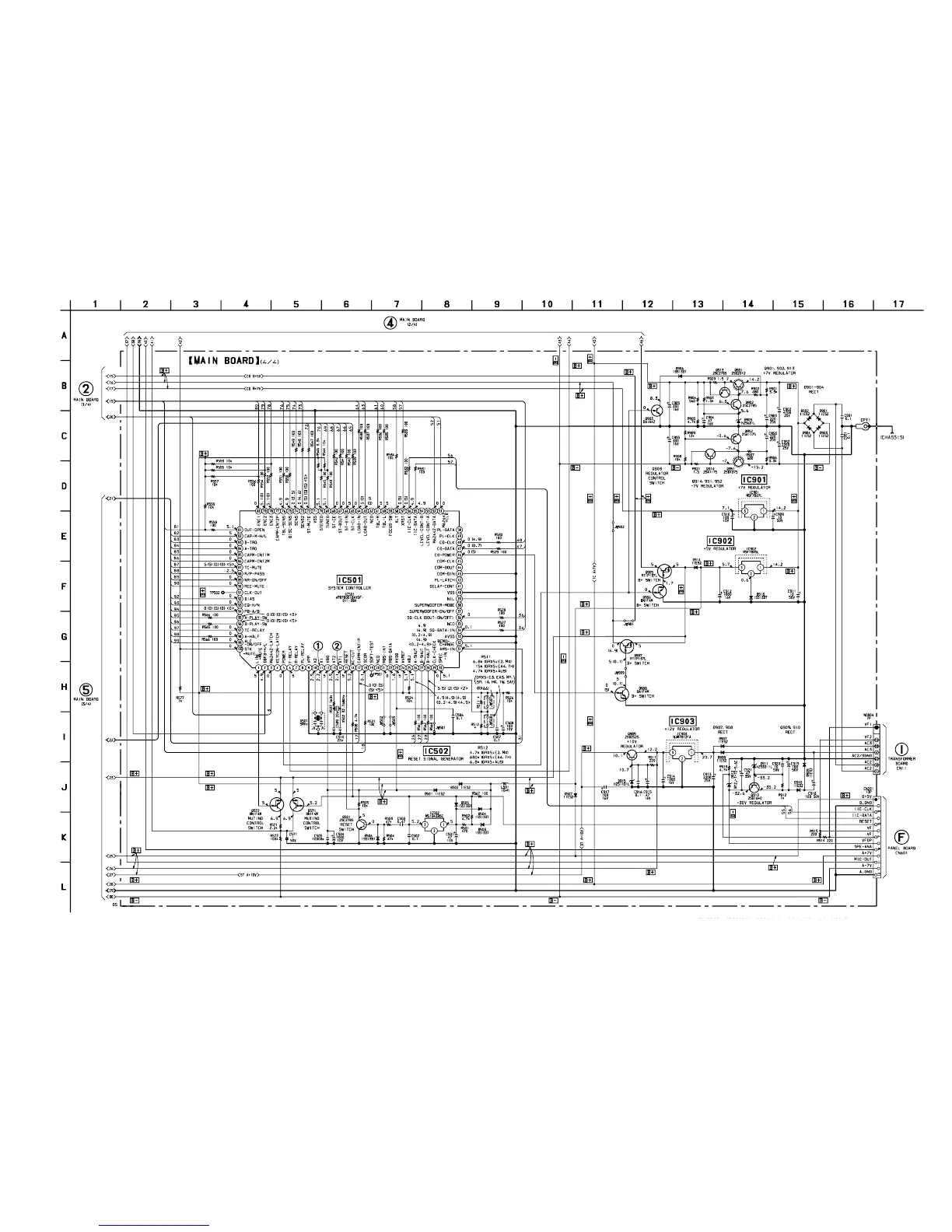

7-17. SCHEMATIC DIAGRAM – MAIN Section (4/4) –
• See page 28 for Waveforms. • See page 27 for Note on Schematic Diagram. • See page 43 and 44 for Printed Wiring Board.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM { } : PB (DECK A)
( ) : CD [ ] : PB (DECK B)
< > : REC
(page 46)
(page 47)
(page 64)
(page 50)
(page 56)
