– 6 –

SECTION 2

GENERAL

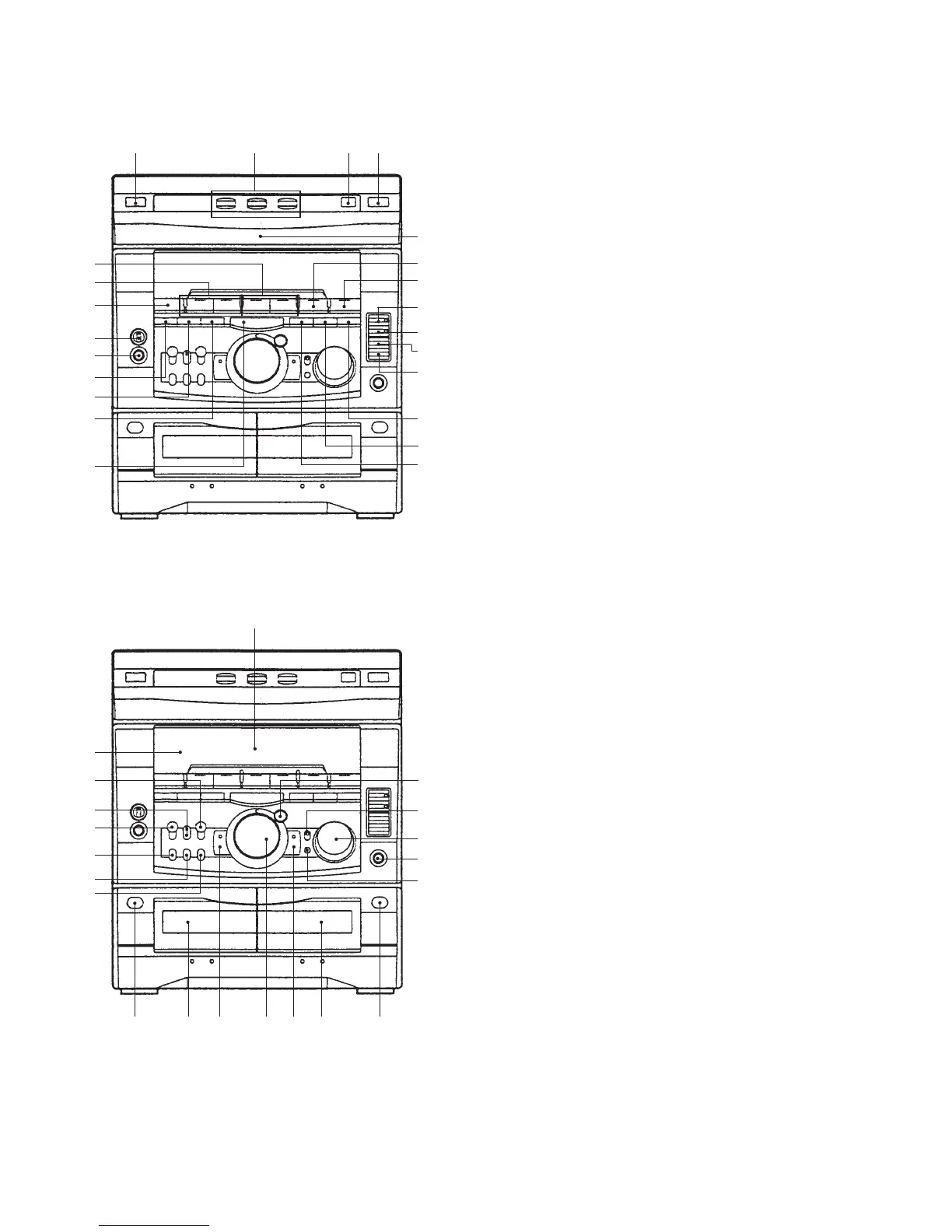

LOCATION OF CONTROLS

1 2 3 4

!¶

!§

!∞

!•

!ª

@º

@¡

@™

@£

!º

!¡

!™

!£

!¢

@¢

#º

#¡

#™

#£

#¢

#∞

#§

@∞

@§

@¶

@•

@ª

#¶ #• #ª $º $¡ $™ $£

1 I /u (Power) button

2 DISC 1 to 3 buttons and indicators

3 DISC SKIP/EX-CHANGE button

4 6 (CD) button

5 CD disc tray

6 CD, ^ button and indicator

7 TUNER, BAND button

8 r REC button and indicator

9 P PAUSE button and indicator

!º HI-DUB button

!¡ CD SYNC button

!™ FILE SELECT button

!£ SURROUND button

!¢ KARAOKE PON/MPX button

!∞ TAPE B, 9 and ( buttons and indicators

!§ TAPE A, 9 and ( buttons and indicators

!¶ FUNCTION button

!• MIC LEVEL knob

!ª MIX MIC jac

@º DISPLAY/DEMO button

@¡ CLOCK/TIMER SET button

@™ TIMER SELECT button

@£ p button

@¢ Fluorescent indicator tube

@∞ ENTER/NEXT button and indicator

@§ GROOVE button and indicator

@¶ VOLUME konb

@• PHONES jack

@ª DBFB button

#º Remote sensor

#¡ FLASH button

#™ NON-STOP button and indicator

#£ LOOP button

#¢ EDIT, DIRECTION button

#∞ PLAY MODE, DOLBY NR button

#§ REPEAT button

#¶ § button (deck A)

#• Tape deck A

#ª –, 0 button and indicator

$º JOG dial

$¡ +, ) button and indicator

$™ Tape deck B

$£ § button (deck B)
