Sony HCD-GRX5 - Printed Wiring Board - CD-SW Section; Schematic Diagram - CD-SW Section

– 57 –
– 58 –
HCD-GRX5/RX66

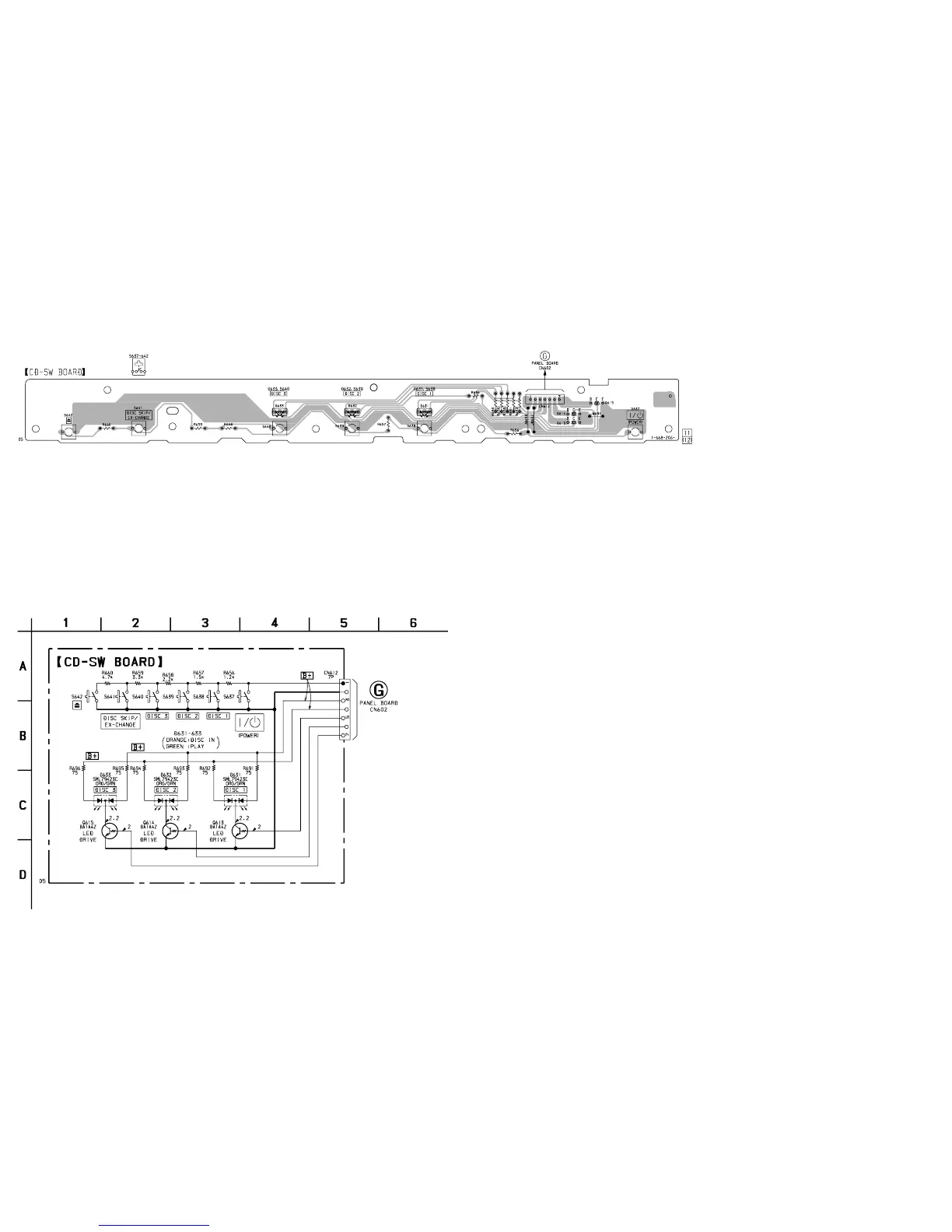

7-20. PRINTED WIRING BOARD – CD-SW Section –
• See page 18 for Circuit Boards Location. • See page 27 for Note on Printed Wiring Boards.
7-21. SCHEMATIC DIAGRAM – CD-SW Section –
• See page 27 for Note on Schematic Diagram.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : FM
(page 54)
(page 56)
