Sony HCD-GRX5 - Printed Wiring Board - POWER AMP Section

– 60 –

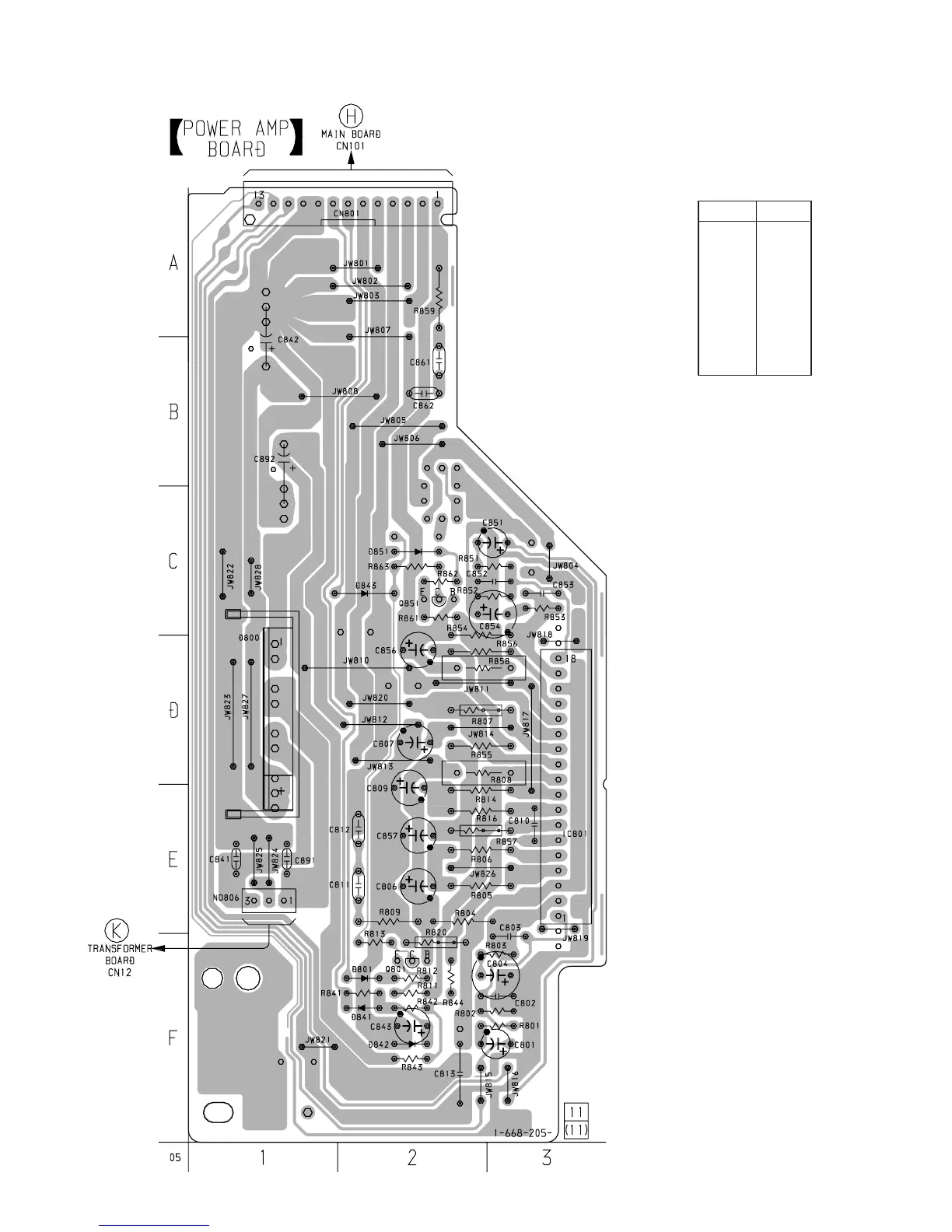

7-24. PRINTED WIRING BOARD – POWER AMP Section –
• See page 18 for Circuit Boards Location. • See page 27 for Note on Printed Wiring Boards.
• Semiconductor
Location
Ref. No. Location
D800 D-1
D801 F-2
D841 F-2
D842 F-2
D843 C-2
D851 C-2
IC801 E-3
Q801 F-2
Q851 C-2
HCD-GRX5/RX66
(page 43)
(page 63)
