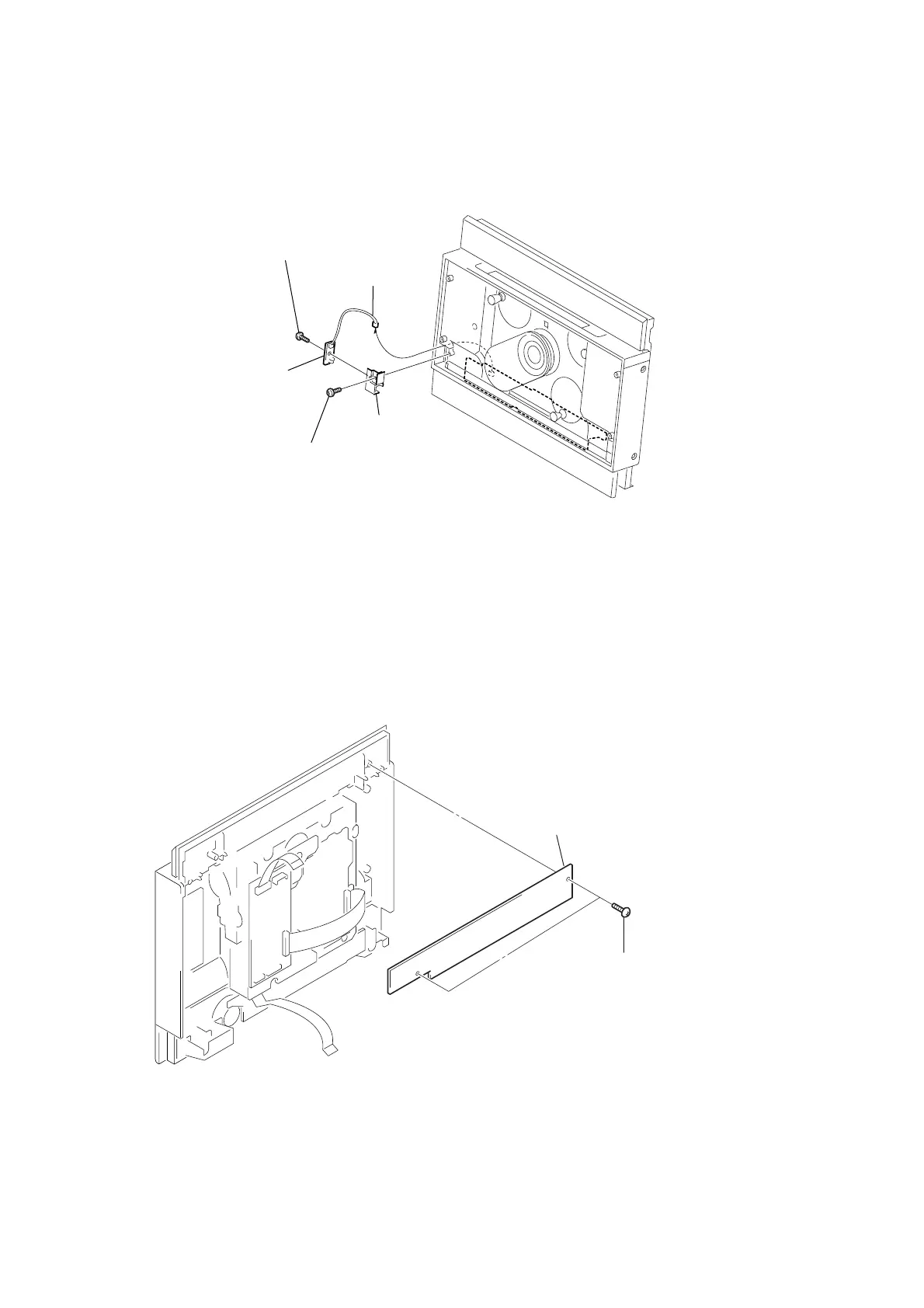

3-7. LED Board (L)
3-8. FL (L1) Board
4
t
wo
screws (+BVTP 2.6
×
8)
3
holder (LED-L)
1
connector (CN1302)
2
screw (+BTP 2.6
×
6)
5
LED board (L)
1
t
wo
screws (+BVTP 2.6
×
8
)
2
FL(L1) board
