HCD-L1
• See page 41 for Wavefoms. • See page 41 for IC Block Diagrams.

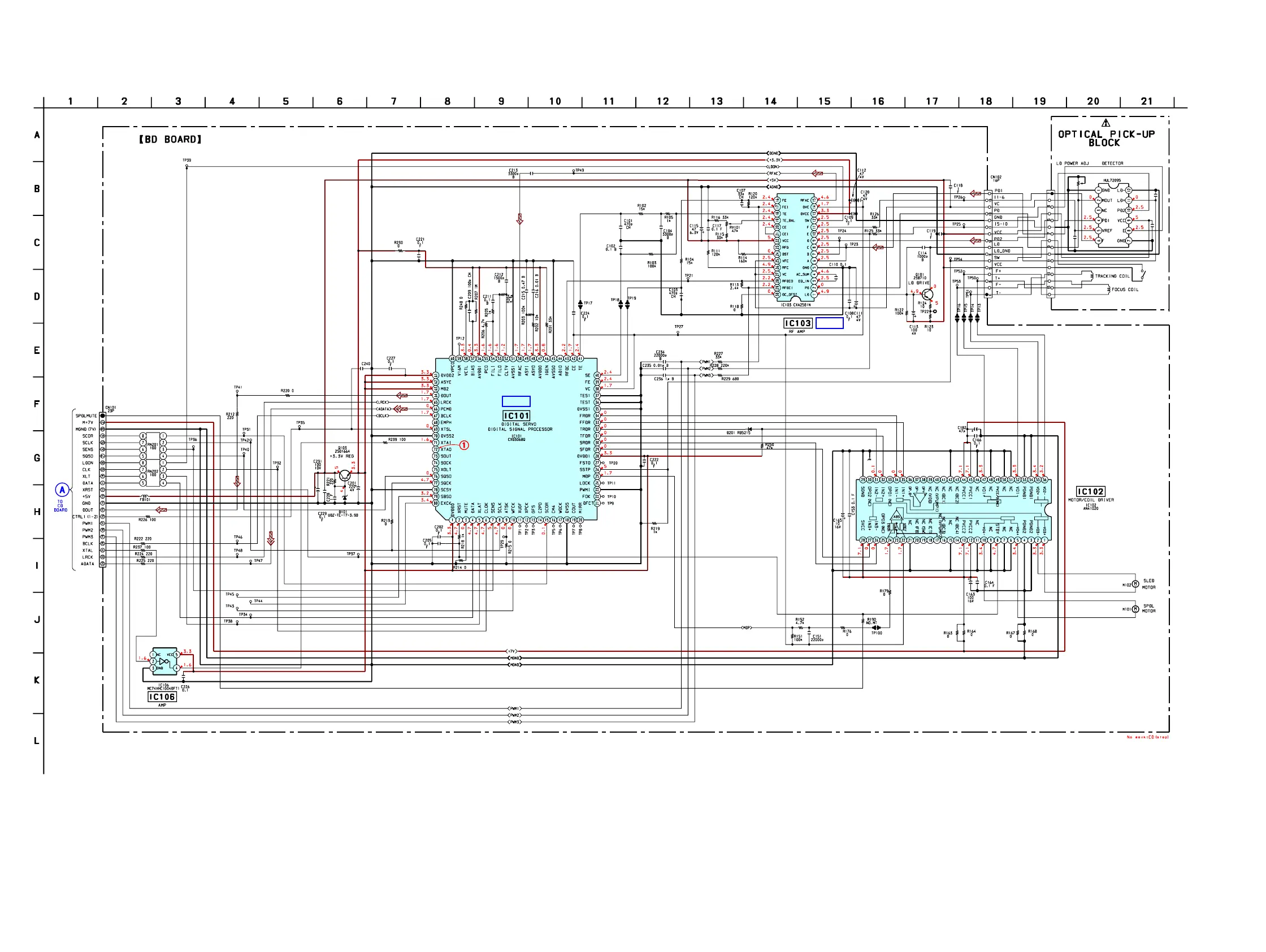

6-5. Schematic Diagram BD Section
IC B/D
IC B/D
(Page 29)
