Sony HCD-LX7 - Schematic Diagram - Trans Section - (LX7 Model)

Sony HCD-LX7
78 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
HCD-LX7/LX8
46
46

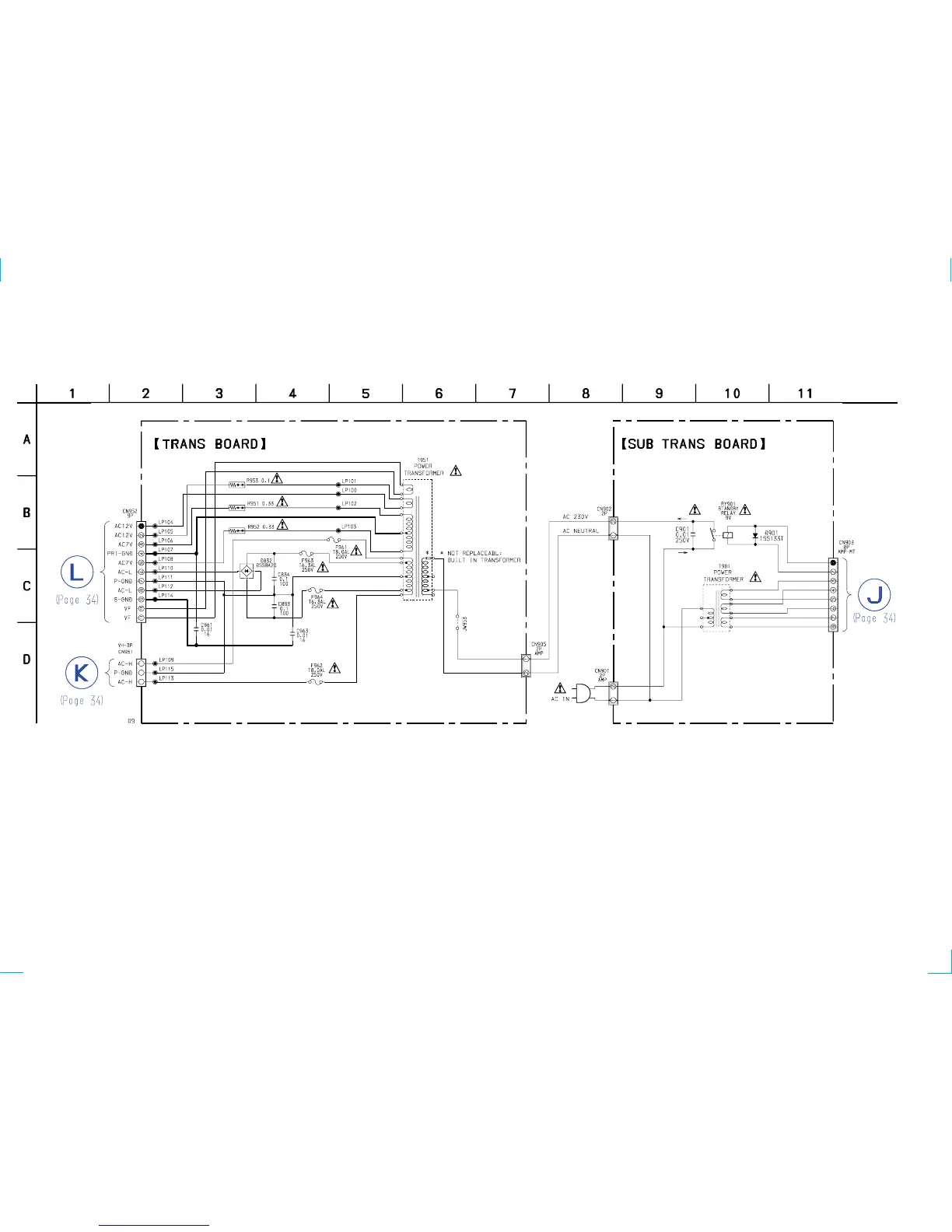

6-23. SCHEMATIC DIAGRAM – TRANS SECTION – (LX7 model)
