Sony HCD-LX7 - Chassis Section

56
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#8
#4
#4
163 (LX7/LX8:EA,SP,MY)
163 (LX8:E,MX)
163 (LX8:AUS)
163 (LX8:AR)
162 (LX7:UK)
162 (LX8:EA,SP,MY
)
162 (LX8:E
)
151
153
154
not supplied
not supplied
not supplied
CDM37M-5BD32L
not supplied
not supplied
not supplied
not supplied
T951
156
158
157
159
160
155
161

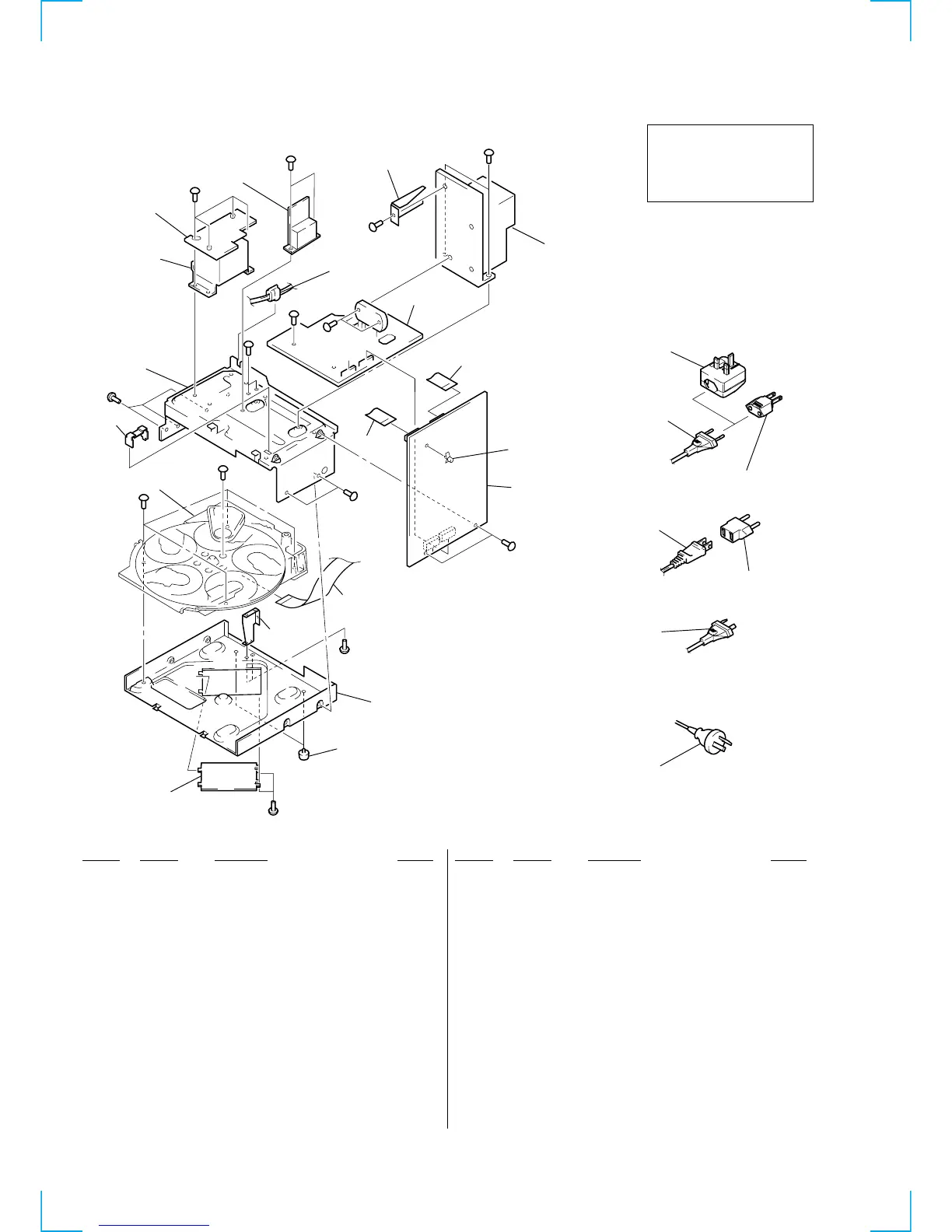

7-4. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
151 X-4941-228-1 FOOT (F22125H-M)
153 1-790-287-11 WIRE (FLAT TYPE)(19 CORE)
* 154 4-988-533-01 HOLDER, PWB
155 1-676-268-11 SUB TRANS BOARD (LX7)
156 1-773-056-11 WIRE (FLAT TYPE)(17 CORE)
157 A-4428-224-A MAIN BOARD, COMPLETE (LX7)
157 A-4428-229-A MAIN BOARD, COMPLETE (LX8:E,AR)
157 A-4428-743-A MAIN BOARD, COMPLETE (LX8:MX)
157 A-4428-745-A MAIN BOARD, COMPLETE (LX8:AUS)
157 A-4428-750-A MAIN BOARD, COMPLETE (LX8:EA,SP,MY)
158 1-773-032-11 WIRE (FLAT TYPE)(15 CORE)
159 A-4428-225-A PA BOARD, COMPLETE (LX7)
159 A-4428-230-A PA BOARD, COMPLETE (LX8:E,AR,MX)
159 A-4428-748-A PA BOARD, COMPLETE (LX8:EA,SP,MY,AUS)
160 3-703-244-00 BUSHING (FBS001), CORD (LX7/LX8:EA,AUS)
160 4-966-266-01 BUSHING (S)(FBS002), CORD
(LX8:E,AR,MX,SP,MY)
161 1-676-267-11 TRANS BOARD
0 162 1-569-007-11 ADAPTOR, CONVERSION 2P (LX8:E)
0 162 1-569-008-21 ADAPTOR, CONVERSION 2P (LX8:EA,SP,MY)
0 162 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (LX7:UK)
0 163 1-696-847-11 CORD, POWER (LX8:AUS)
0 163 1-777-071-51 CORD, POWER (LX7/LX8:EA,SP,MY)
0 163 1-783-941-11 CORD, POWER (LX8:AR)
0 163 1-791-901-11 CORD, POWER (LX8:E,MX)
0 T951 1-435-245-11 TRANSFORMER, POWER (LX7)
0 T951 1-435-246-11 TRANSFORMER, POWER (LX8)
