HCD-RV777D/RV888D/RV999D

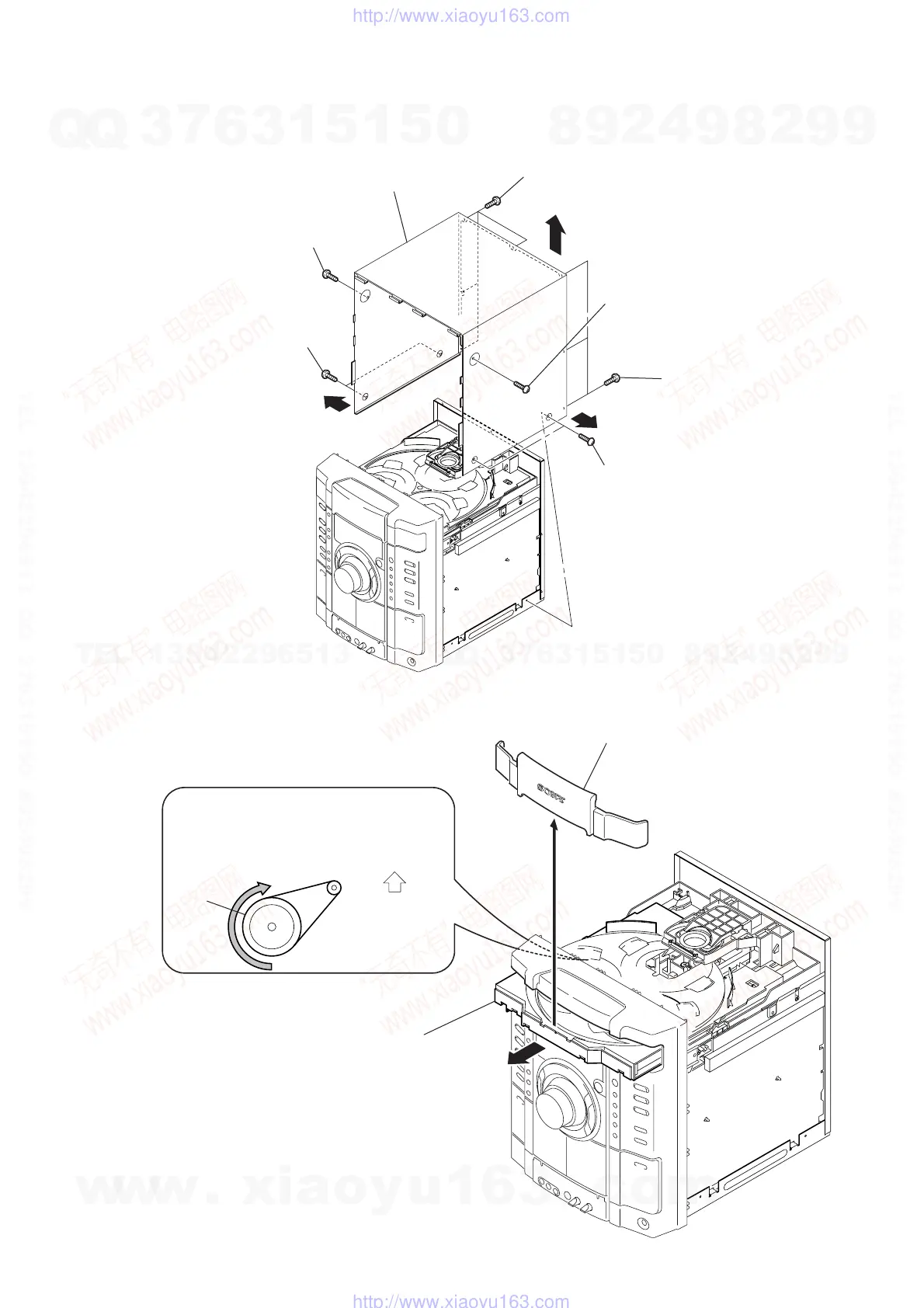

3-2. CD DOOR
Note : Follow the disassembly procedure in the numerical order given.
3-1. CASE
1
two screws
(case 3 TP2)
2
screw
(case 3 TP2)
4
screw
(case 3 TP2)
3
two screws
(case 3 TP2)
5
four screws (+BVTT 3
×
6)
9
case
6
three screws
(+BVTT 3
×
6)
7
7
8
2
Pull-out the disc tray.
4
door (CD) assy
1
Turn the pulley to the direction of arrow.
pulley
Front panel side
CD mechanism deck (CDM74S-DVBU62)
3
