94
HCD-RV777D/RV888D/RV999D

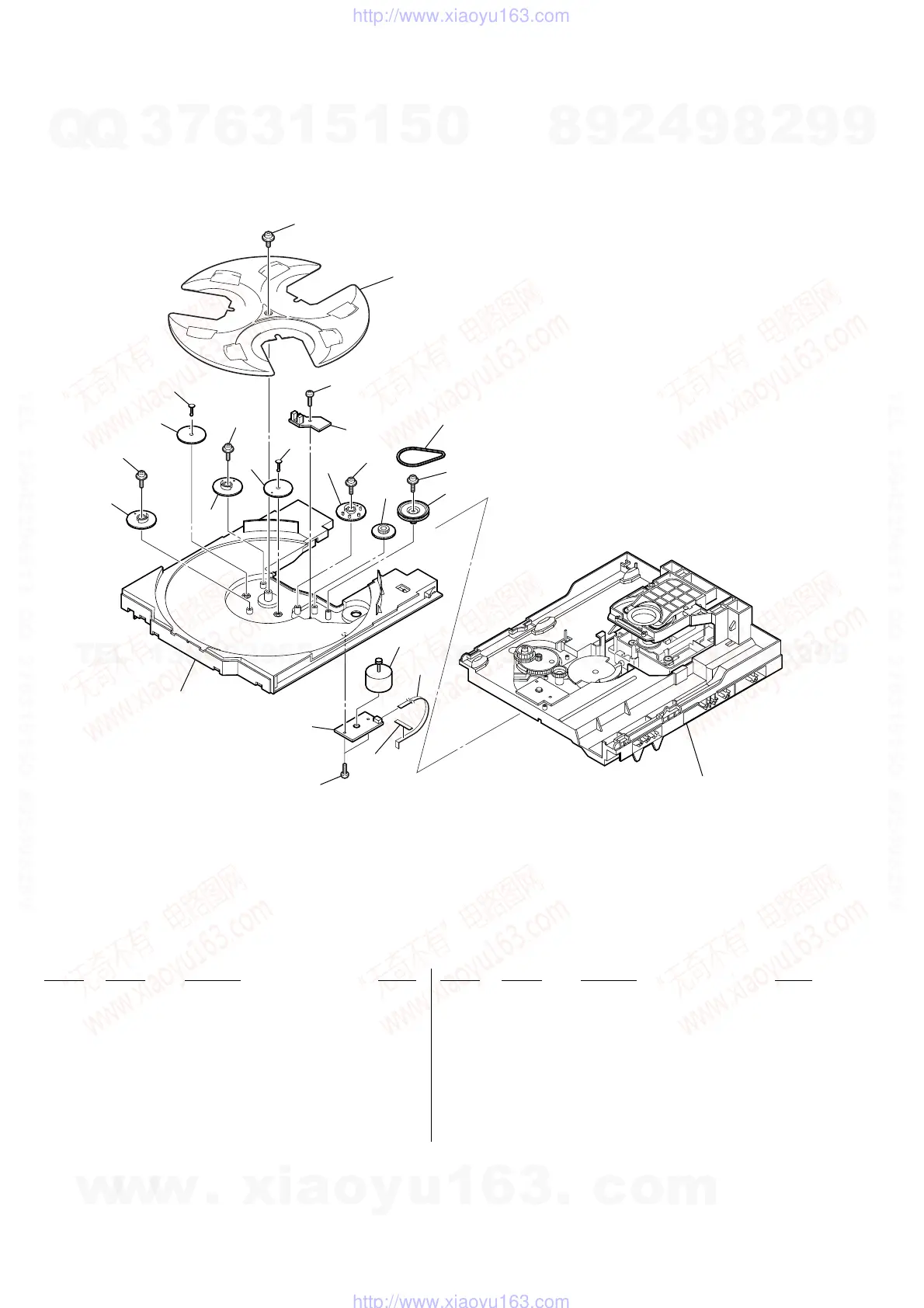

8-8. DVD MECHANISM DECK SECTION (1)
(CDM74S-DVBU62)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301
302
316
303
304
305
305
306
306
307
307
308
308
309
301
306
312
313
314
315
310
311
314
M741
chassis assy
301 4-218-253-21 SCREW (M2.6), +BTTP
302 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)
303 1-687-134-12 MOTOR (TB) BOARD
304 4-243-815-01 TABLE (LOADING)
305 4-245-571-02 GEAR (STOPPER)
306 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
307 4-245-570-01 GEAR (JOINT)
308 4-245-572-01 BUSHING (GEAR)
309 1-687-132-12 SENSOR BOARD
310 4-243-820-01 GEAR (TABLE)
311 4-243-819-01 GEAR (GENEVA)
312 4-243-816-01 TRAY
313 4-243-823-01 BELT (TABLE)
314 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
315 4-243-821-01 PULLEY (TABLE)
316 3-231-598-01 SHEET (BA)
M741 A-4723-963-A MOTOR ASSY, TABLE (TABLE)
