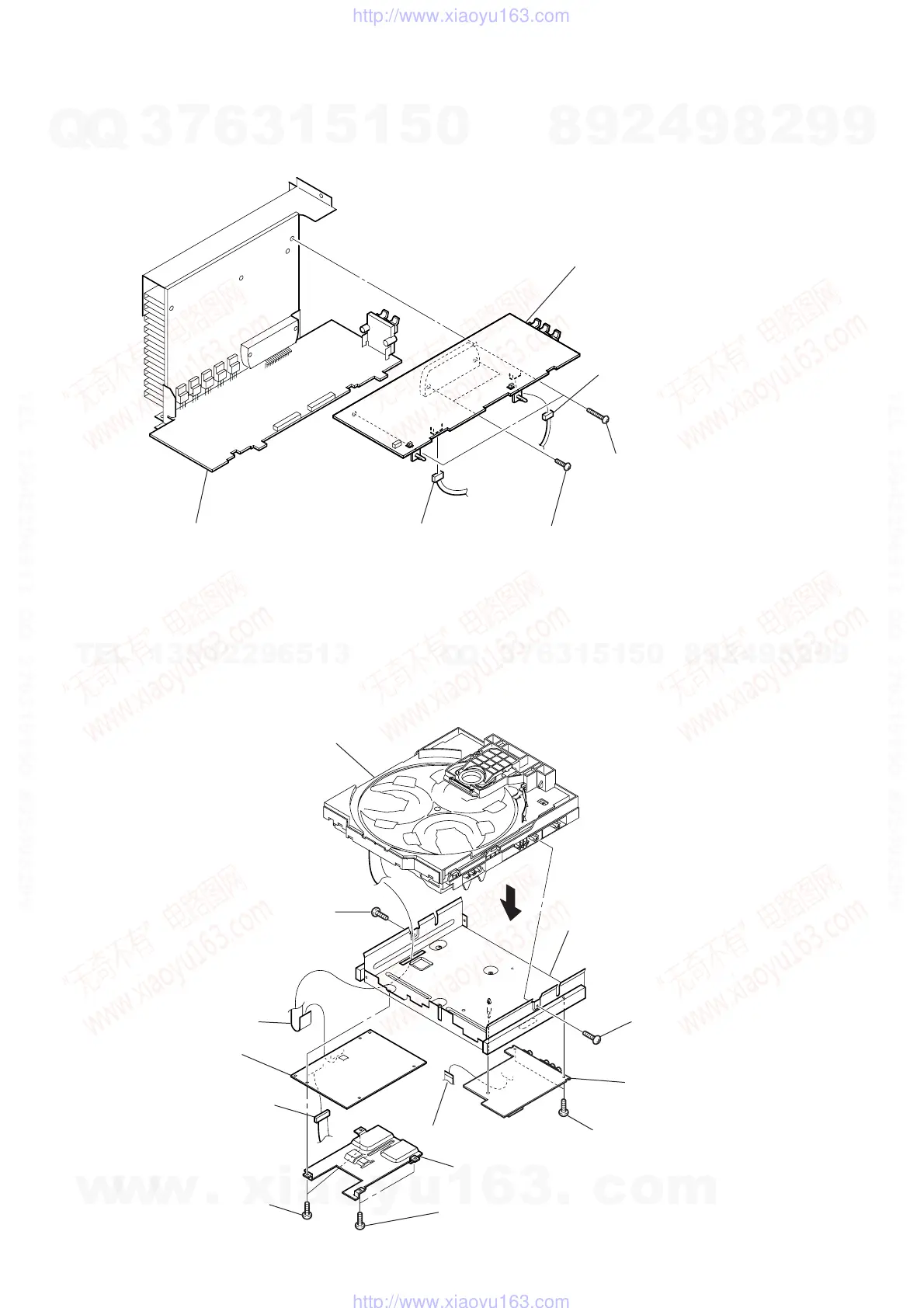

3-11. DVD MECHANISM BLOCK, DMB07 BOARD, VIDEO BOARD
3-10. SURROUND AMP BOARD, FRONT AMP BOARD (HCD-RV888D/RV999D)
1 CN302
2 CN372
3 two screws
(+BVTP 3
× 16)
4 two screws
(+BVTP 3
× 8 )
5 SURROUND AMP boar
d
6 FRONT AMP board
2 screw
(+BVTP 3
× 8
)
bracket (DVD)
7 two screws
(+BVTT 3
× 6)
qa two screws
(+BVTT 3
× 6)
qs VIDEO board
9 heat sink
0 DMB07 board
8 two screws
(+BVTT 3
× 6)
4
3
screw
(+BVTP 3
× 8)
1 CN501
qd DVD mechanism block
5 CN102
6 CN801
