HCD-RV777D/RV888D/RV999D

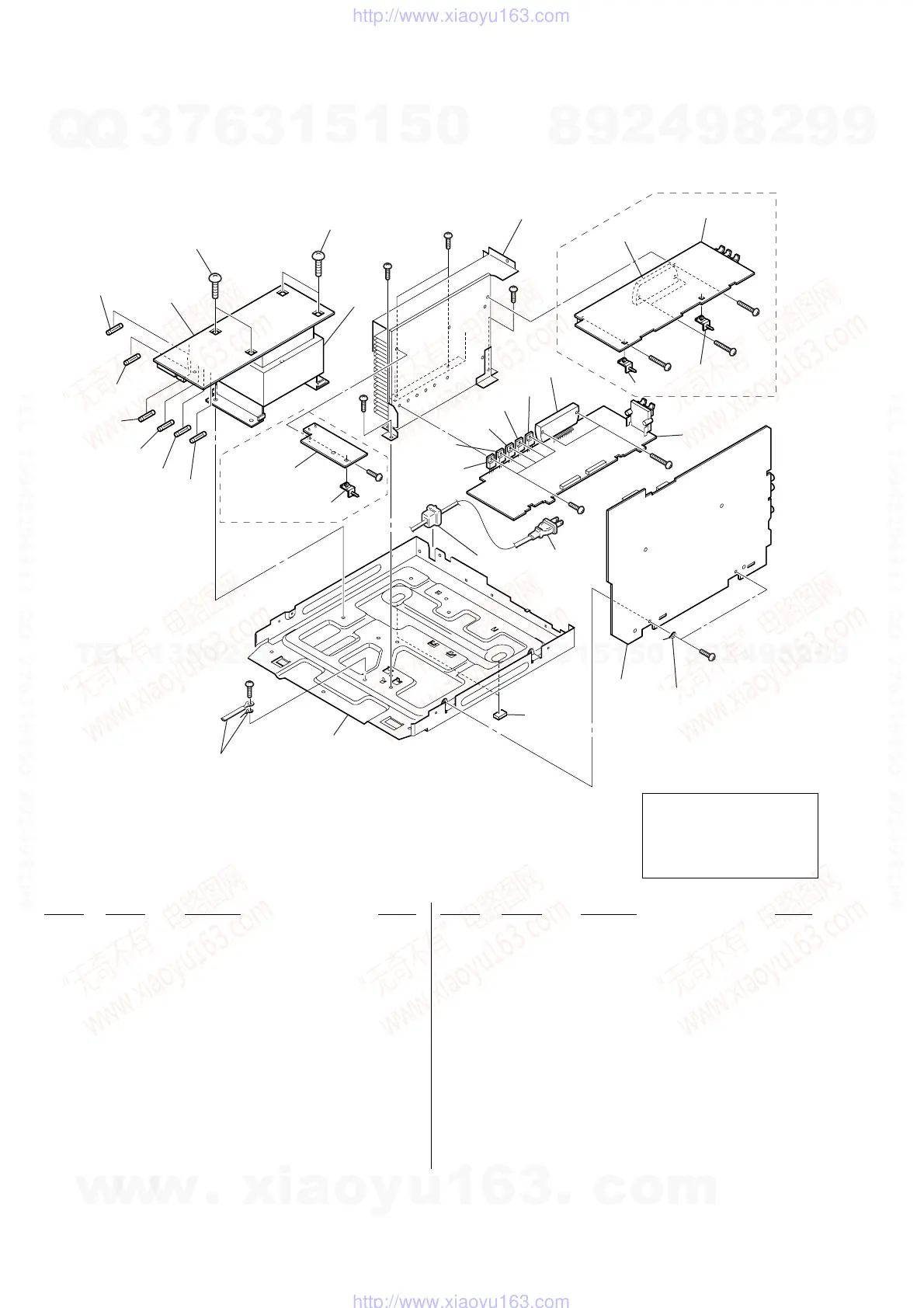

8-6. MAIN BOARD SECTION (1/2)
251
252
254
256
255
255
258
257
253
F917
T911
F916
HCD-RV888D/RV999D
F914
F915
F918
F919
#2
#2
#2
#3
#2
#1
#1
#1
#1
IC201
IC301
IC932
IC934
IC923
IC922
IC921
#2
#2
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
HCD-RV777D
#3
not supplied
not supplied
(LEAD PIN board)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 A-1053-866-A MAIN BOARD, COMPLETE (RV999D:SP,MY,PH)
251 A-1053-867-A MAIN BOARD, COMPLETE (RV999D:EA)
251 A-1053-868-A MAIN BOARD, COMPLETE (RV999D:AUS)
251 A-1053-869-A MAIN BOARD, COMPLETE
(RV999D:E51,AR,MX)
251 A-1053-871-A MAIN BOARD, COMPLETE (RV888D:SP,MY)
251 A-1053-872-A MAIN BOARD, COMPLETE (RV888D:EA)
251 A-1053-873-A MAIN BOARD, COMPLETE (RV888D:AUS)
251 A-1053-875-A MAIN BOARD, COMPLETE (RV777D:SP,MY,PH)
251 A-1053-876-A MAIN BOARD, COMPLETE (RV777D:EA)
251 A-4751-800-A MAIN BOARD, COMPLETE (RV999D:E3,E15)
251 A-4751-804-A MAIN BOARD, COMPLETE (RV888D:E3,E15)
251 A-4751-806-A MAIN BOARD, COMPLETE (RV777D:E3,E15)
252 4-233-980-01 FOOT, RUBBER
0 253 1-696-848-22 CORD, POWER (AUS)
0 253 1-751-520-21 CORD, POWER (EA)
0 253 1-777-071-83 CORD, POWER (E51,PH,SP,MY)
0 253 1-783-941-22 CORD, POWER (AR)
0 253 1-827-226-11 CORD, POWER (E3,E15,MX)
254 A-1053-996-A TRANS BOARD, COMPLETE (AUS)
254 A-1053-997-A TRANS BOARD, COMPLETE (E51)
254 A-1053-998-A TRANS BOARD, COMPLETE (MX)
254 A-1053-999-A TRANS BOARD, COMPLETE (AR)
254 A-4751-863-A TRANS BOARD, COMPLETE
(RV888D:EXCEPT AUS/
RV999D:EXCEPT E51,AUS,AR,MX)
254 A-4751-866-A TRANS BOARD, COMPLETE (RV777D)
