Sony HCD-SHAKE33 - Back Panel Section; Loading Panel Assy

HCD-SHAKE33/SHAKE77
11

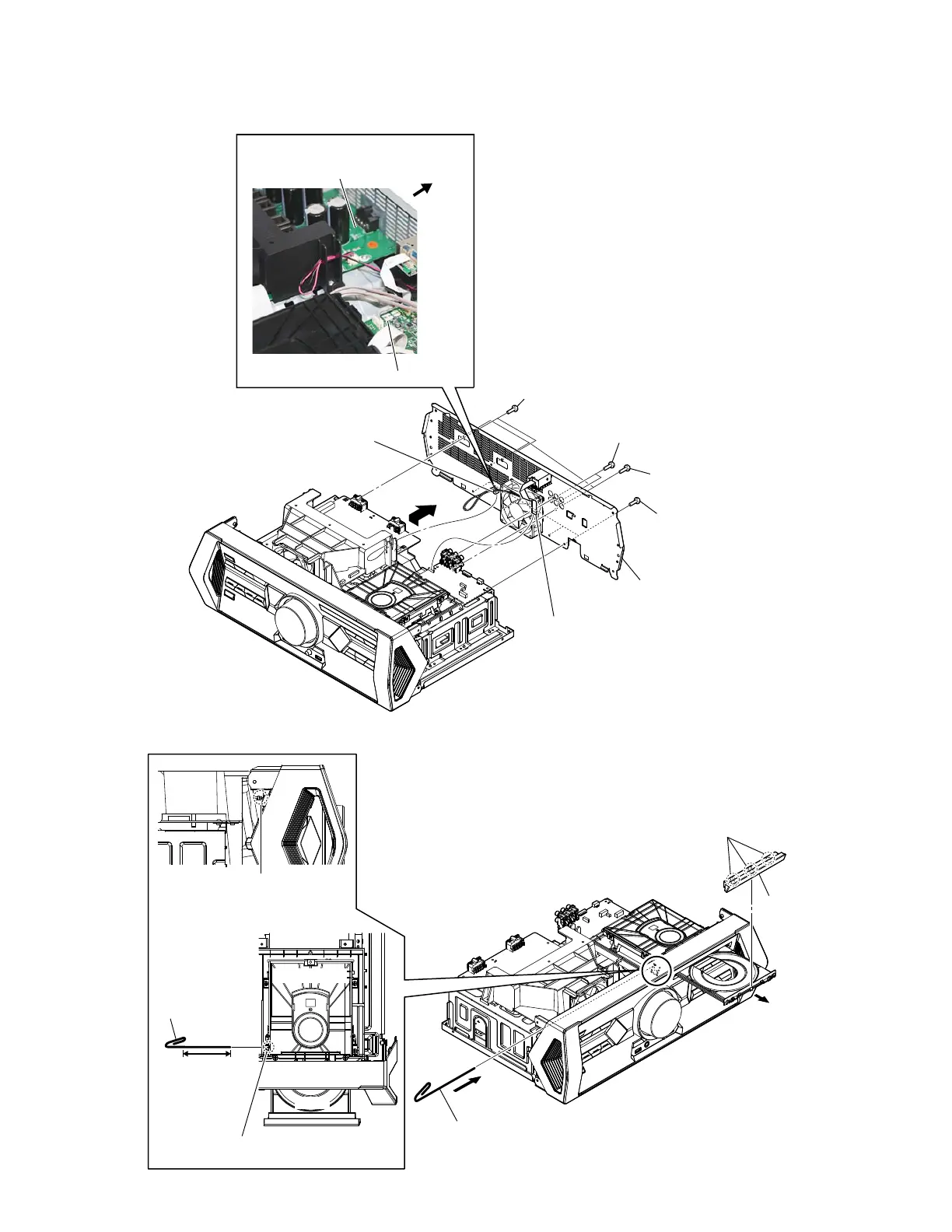

2-2. BACK PANEL SECTION
2-3. LOADING PANEL ASSY
1 Insert the clip etc.
3 three claws
4 panel, loading
assy
2
tray
Insert the clip etc.
processed to the
length of 8 cm or
more in the hole
on the side of the
chassis and push.
8 cm or more
hole
– Side view –
– Top view –
Note:
Push after it inserts it in this hole well.
CD drive
1 CN1002 (3P) (SHAKE77)
CN1003 (3P) (SHAKE33)
3 two screws
(+BVTP 3 u 8) (BLACK)
4 two screws
(+BVTP 3 u 8) (BLACK)
5 three screws
(+BVTP 3 u 8) (BLACK)
7
9 back panel section
2 wire (flat type)
(9 core) (CN851)
6 four screws
(+BVTP 3 u 8) (BLACK)
‡:LUHVHWWLQJ
rear side
6CH DAMP board
MOTHERBOARD board
