Sony HCD-SHAKE33 - MOTHERBOARD Board Section

88
HCD-SHAKE33/SHAKE77

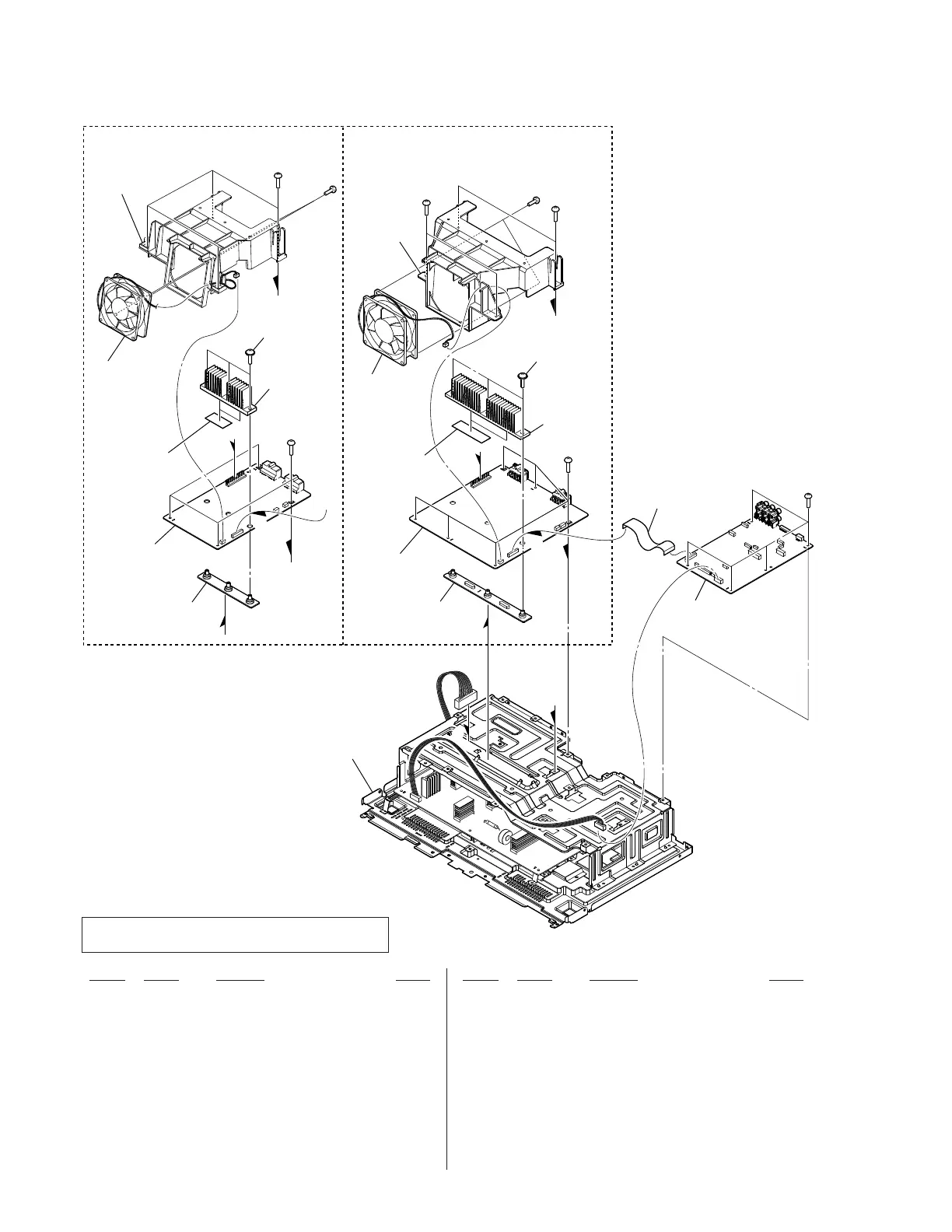

7-5. MOTHERBOARD BOARD SECTION
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
B
B
D
F
F
D
E
E
B
C
C
C
(SHAKE33) (SHAKE77)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
chassis section
not supplied
not supplied
201
203
204
204
205
205
203
202
#2
#2
#2
#2
#2
#2
#2
#2
201 1-828-369-21 WIRE (FLAT TYPE) (21 CORE)
202 A-2043-339-A MOTHERBOARD BOARD, COMPLETE
(SHAKE77: E2, E51)
202 A-2043-340-A MOTHERBOARD BOARD, COMPLETE
(SHAKE77: AUS)
202 A-2043-341-A MOTHERBOARD BOARD, COMPLETE
(SHAKE77: MX)
202 A-2043-347-A MOTHERBOARD BOARD, COMPLETE
(SHAKE33: E2, E51)
202 A-2043-348-A MOTHERBOARD BOARD, COMPLETE
(SHAKE33: US)
202 A-2043-349-A MOTHERBOARD BOARD, COMPLETE
(SHAKE33: AEP)
202 A-2043-350-A MOTHERBOARD BOARD, COMPLETE
(SHAKE33: UK)
202 A-2043-351-A MOTHERBOARD BOARD, COMPLETE
(SHAKE33: MX)
0 203 1-855-006-41 FAN, DC (SHAKE33)
0 203 1-855-340-11 DC FAN (SHAKE77)
204 4-435-965-01 SCREW+PTPWH 2.6XL (DIA8.0)
205 A-1977-136-A 4CH DAMP BOARD, COMPLETE (SHAKE33)
205 A-1977-127-A 6CH DAMP BOARD, COMPLETE (SHAKE77)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
