HCD-SHAKE33/SHAKE77
SECTION 7
EXPLODED VIEWS
Note:
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Items marked “*” are not stocked since
they are seldom required for routine
service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Accessories are given in the last of this
parts list.

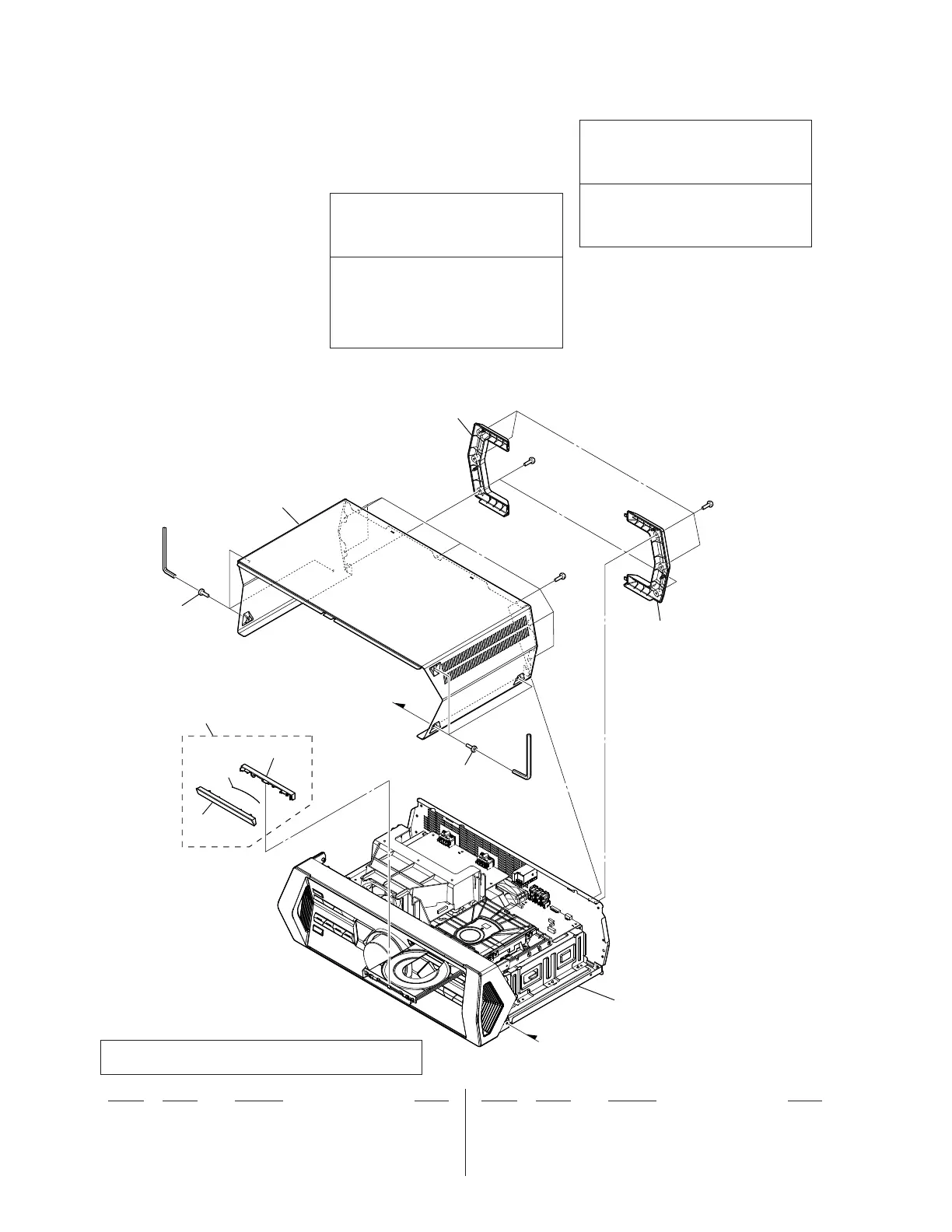

7-1. OVERALL CASE SECTION
1 4-462-227-01 PROTECTOR, REAR L
2 4-462-226-01 PROTECTOR, REAR R
3 4-464-752-01 SCREW, TAPPING (HEX)
4 4-462-250-11 CASE, OVERALL (SHAKE33)
4 4-462-250-31 CASE, OVERALL (SHAKE77)
5 X-2587-390-1 PANEL, LOADING ASSY
6 4-295-431-01 SPRING, LOADING
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• Abbreviation
AUS : Australian model
E2 : 120 V AC area in E model
E51 : Chilean and Peruvian models
MX : Mexican model
Note:
To disassemble the CASE, OVERALL, allen key
is required to unscrew the SCREW, TAPPING (HEX).
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
back panel section
A
A
3
6
not
supplied
not supplied
5
#1
#1
#1
1
3
4
2
To Next Page
