Sony HCD-SHAKE33 - Cdm90-Dvbu202;;M

HCD-SHAKE33/SHAKE77
12

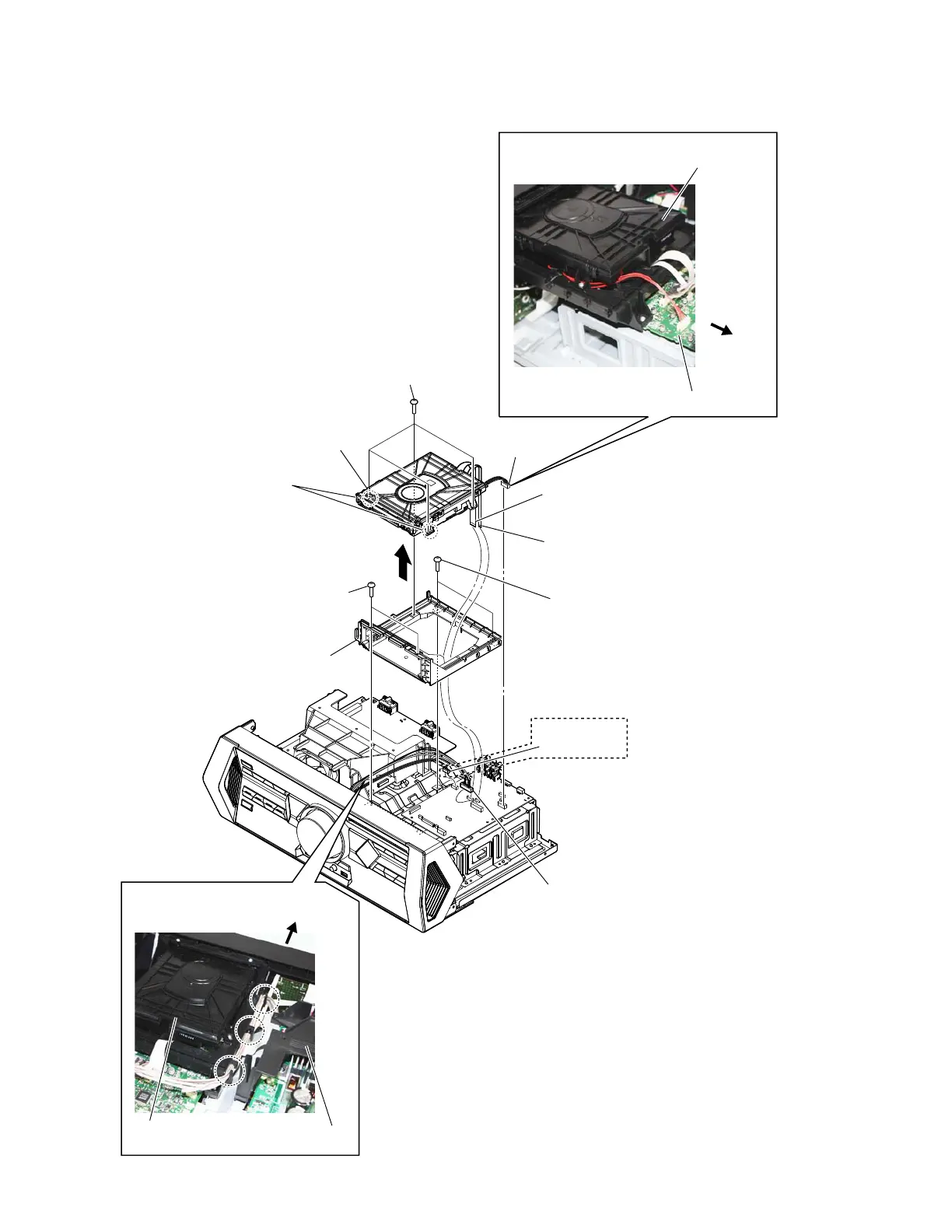

2-4. CDM90-DVBU202//M
0 two screws
(+BVTP 3 u 8)
qs bracket, CDM (M7)
6 four screws
(+BVTP 3 u 8)
1 CN401 (6P)
4 CN451 (10P)
2 wire (flat type) (5 core)
(CN303)
3 wire (flat type) (24 core)
(CN302)
qa two screws
(+BVTP 3 u 8)
Note: When you install the CD
drive (CDM90-DVBU202//M),
please match the position of
the boss two places.
7 boss
8
9 CDM90-DVBU202//M
‡:LUHVHWWLQJ
rear side
MOTHERBOARD board
CDM90-DVBU202//M
‡:LUHVHWWLQJ
front side
bracket, tunnel
CDM90-DVBU202//M
5
CN601 (4P)
(SHAKE77)
