Sony HCD-SHAKEX3 - Back Panel Section; Panel, Loading Assy

HCD-SHAKEX1/SHAKEX3/SHAKEX7
12
4
1 four screws
(+BVTP 3 u 8)
7 sheet,
service cover
8 panel, back
2 four screws
(+BVTP 3 u 8)
3 five screws
(+BVTP 3 u 8)
5 two screws
(+BVTP 3 u 8)
6 DC fan
(SHAKEX7)
(SHAKEX7)

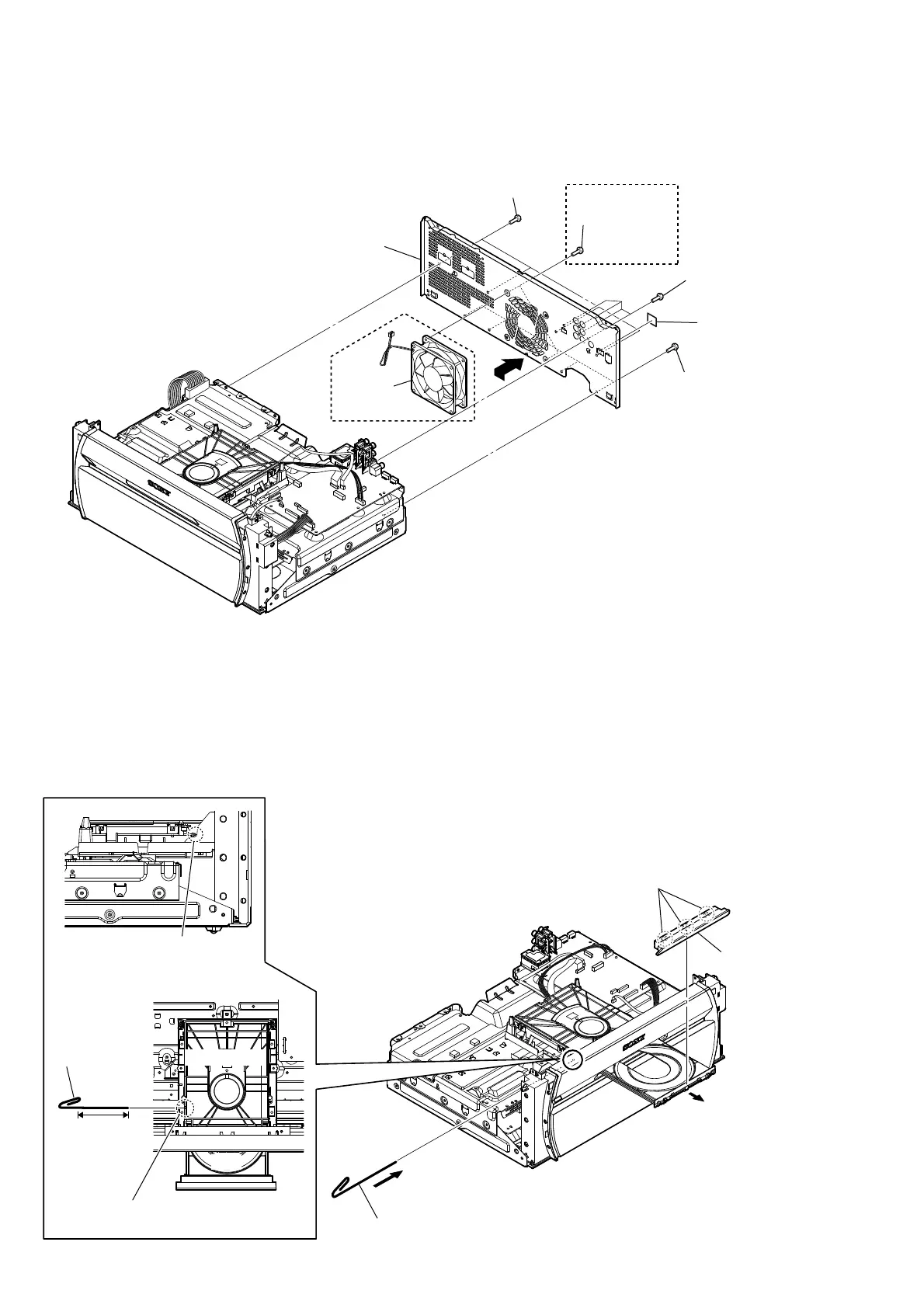

2-3. BACK PANEL SECTION
2-4. PANEL, LOADING ASSY
1 Insert the clip etc.
2
3 three claws
4 panel, loading
assy
DVD drive
tray
Insert the clip etc.
processed to the
length of 8 cm or
more in the hole
on the side of the
CDM and push.
8 cm or more
hole
– Side view –
– Top view –
Note:
Push after it inserts it in this hole well.
Ver. 1.1
