HCD-SHAKEX1/SHAKEX3/SHAKEX7

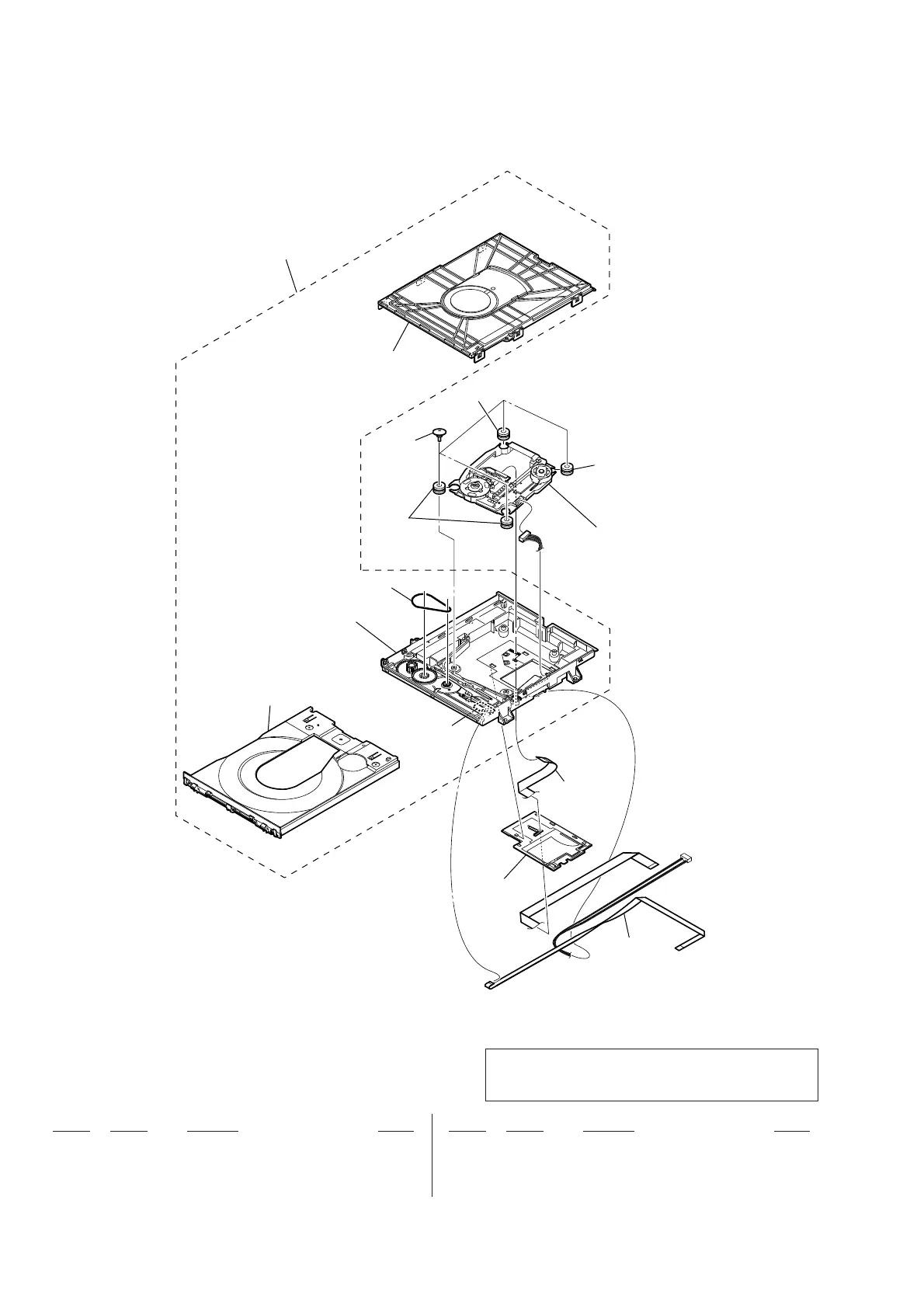

7-7. DVD MECHANISM SECTION
(CDM90-DVBU204//M)
301 A-1896-391-B LOADING COMPLETE ASSY (T)
(including MS-476 board)
302 3-087-599-01 INSULATOR SCREW
303 2-634-618-21 INSULATOR
0
304 A-2046-956-A SERVICE, OPTICAL DEVICE (7G)
305 1-828-293-12 WIRE (FLAT TYPE) (5 CORE)
306 1-846-951-11 CABLE, FLEXIBLE FLAT (24 CORE)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note: If cable, fl exible fl at and wires (fl at type) is replaced,
install it after bending it in the same form as that
before replacement.
not supplied
not supplied
not supplied
(MS-476 board)
not supplied
not supplied
not supplied
301 (including MS-476 board)
302
303
303
303
304
306
305
Ver. 1.1
