HCD-SHAKEX1/SHAKEX3/SHAKEX7
16
8 four insulator screws
7 connector
qa insulator
6 belt
3 Insert the thin
wire (clip etc.).
5 tray
qs service, optical
device (7G)
qa insulator
qa insulator
qj
ql cable, flexible flat
(24 core)
qf filament tape
qh filament tape
1 six claws
4
9
0
2 chuck holder assy (T)
qg wire (flat type)
(5 core)
– Bottom view –
loading assy (T)
qd base, lo assy
qk holder, FFC

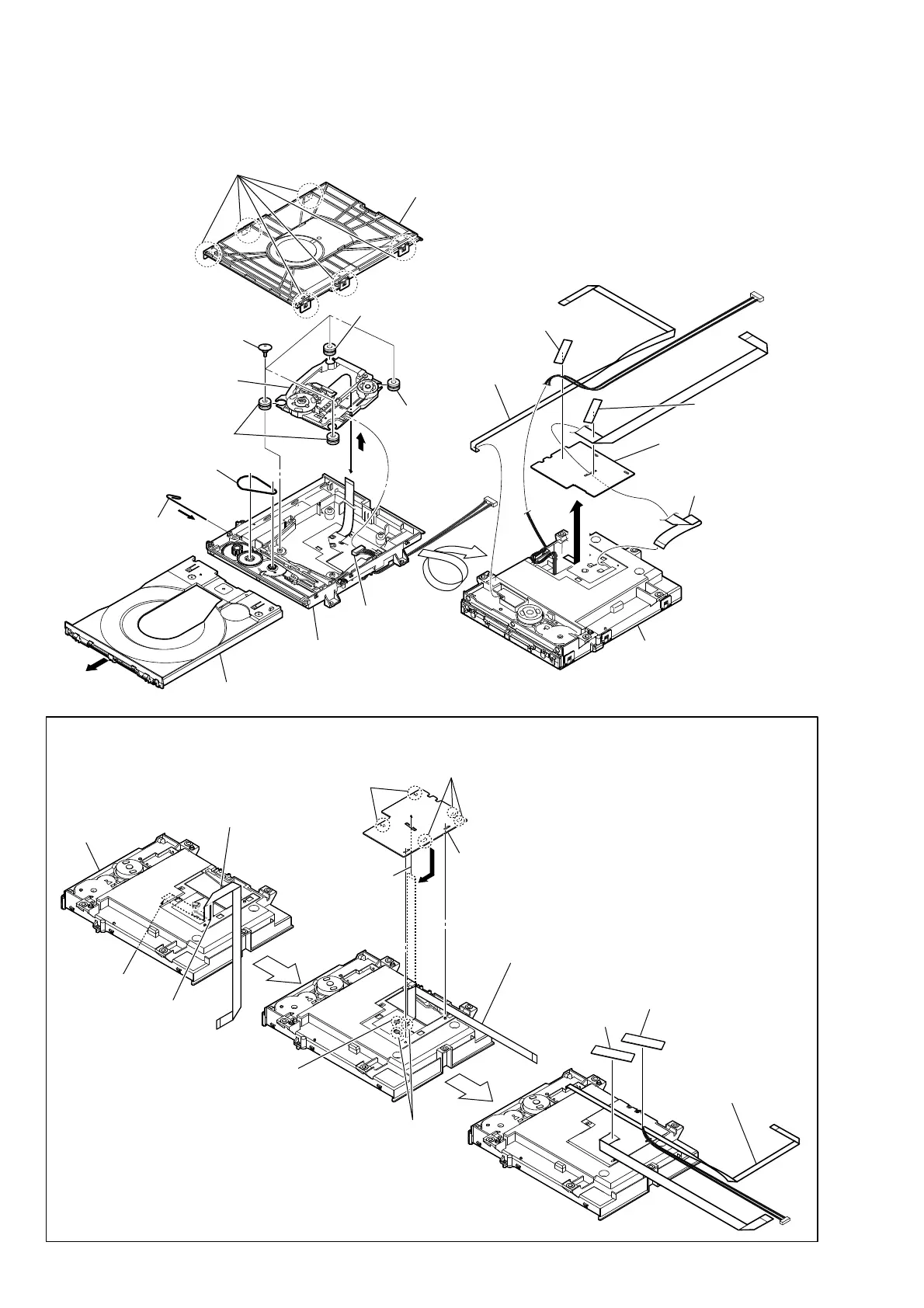

2-9. SERVICE, OPTICAL DEVICE (7G), CABLE, FLEXIBLE FLAT
Under the guide
Under the guide
(Fold area)
,QVWDOODWLRQRIFDEOHIOH[LEOHIODWFRUHDQGZLUHIODWW\SHFRUH
Note:
This illustration sees the loading assy (T) from bottom side.
1 cable, flexible flat
(24 core)
2 Through the hole
3 Through the hole
4
terminal face
loading assy (T)
7 cable, flexible flat
(24 core)
6 holder, FFC
5 three claws
5 two claws
9 wire (flat type)
(5 core)
0 filament tape
8 filament tape
