Sony HCD-SHAKEX3 - Chassis Section

74
HCD-SHAKEX1/SHAKEX3/SHAKEX7
EE
G
G
(SHAKEX1/SHAKEX3)
(EXCEPT LA9,
TH, AR)
(SHAKEX7)
(SHAKEX7)
G
F
F
D
D
E
201
201
201
201
203
205 205
202
202
204
204
202
202
202
202
#1
#1
#1
201
201
201
201
not supplied
not supplied
not supplied
not supplied
not
supplied
not
supplied
not supplied
not supplied
not
supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
not
supplied
#1
#1
G
F
D
201
203
not supplied
not supplied
not
supplied
not
supplied
not supplied
not supplied
not supplied
#1
#1
(EXCEPT LA9,
TH, AR, E12)

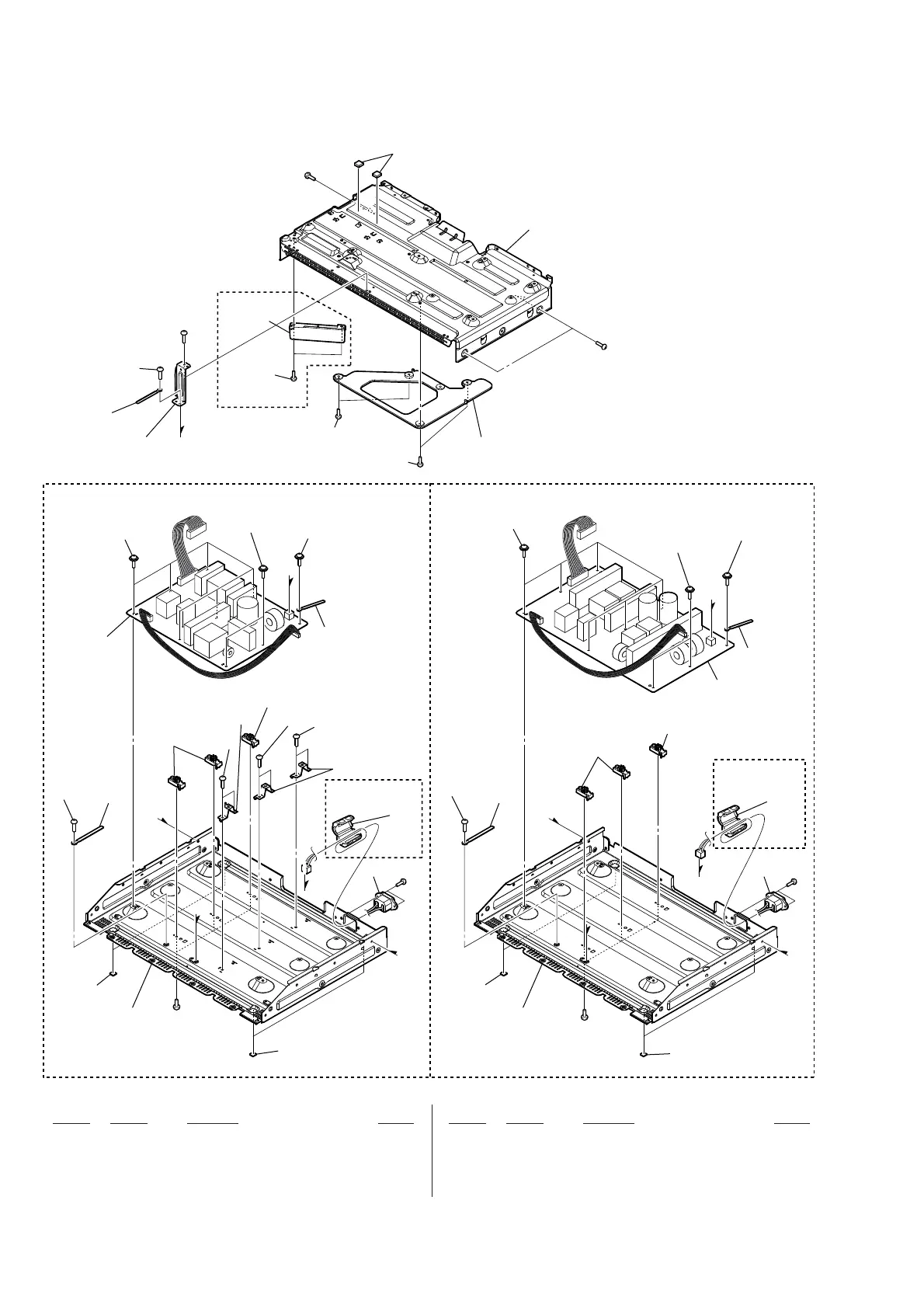

7-5. CHASSIS SECTION
201 3-077-331-21 +BV3 (3-CR)
202 2-677-839-01 +PWH 3X8 (SUMITITE)
203 1-457-369-12 CORE, FERRITE (EXCEPT LA9, TH, AR, E12)
0
204 1-474-607-11 SWITCHING REGULATOR (SHAKEX7)
0
204 1-474-608-21 REGULATOR, SWITCHING (SSN-152AD)
(SHAKEX1/SHAKEX3)
0
205 1-844-220-11 AC INLET
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.3
