Sony HCD-SHAKEX3 - Back Panel Section

71
HCD-SHAKEX1/SHAKEX3/SHAKEX7
(SHAKEX7)
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
MOTHERBOARD BOARD section
not
supplied
not
supplied
not
supplied
(SHAKEX7)
(SHAKEX7)
(SHAKEX7)
(SHAKEX7)
C
C
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
51
52
53
51
54
55
not
supplied
not supplied
(SHAKEX1/
SHAKEX3)
(SHAKEX1/
SHAKEX3)

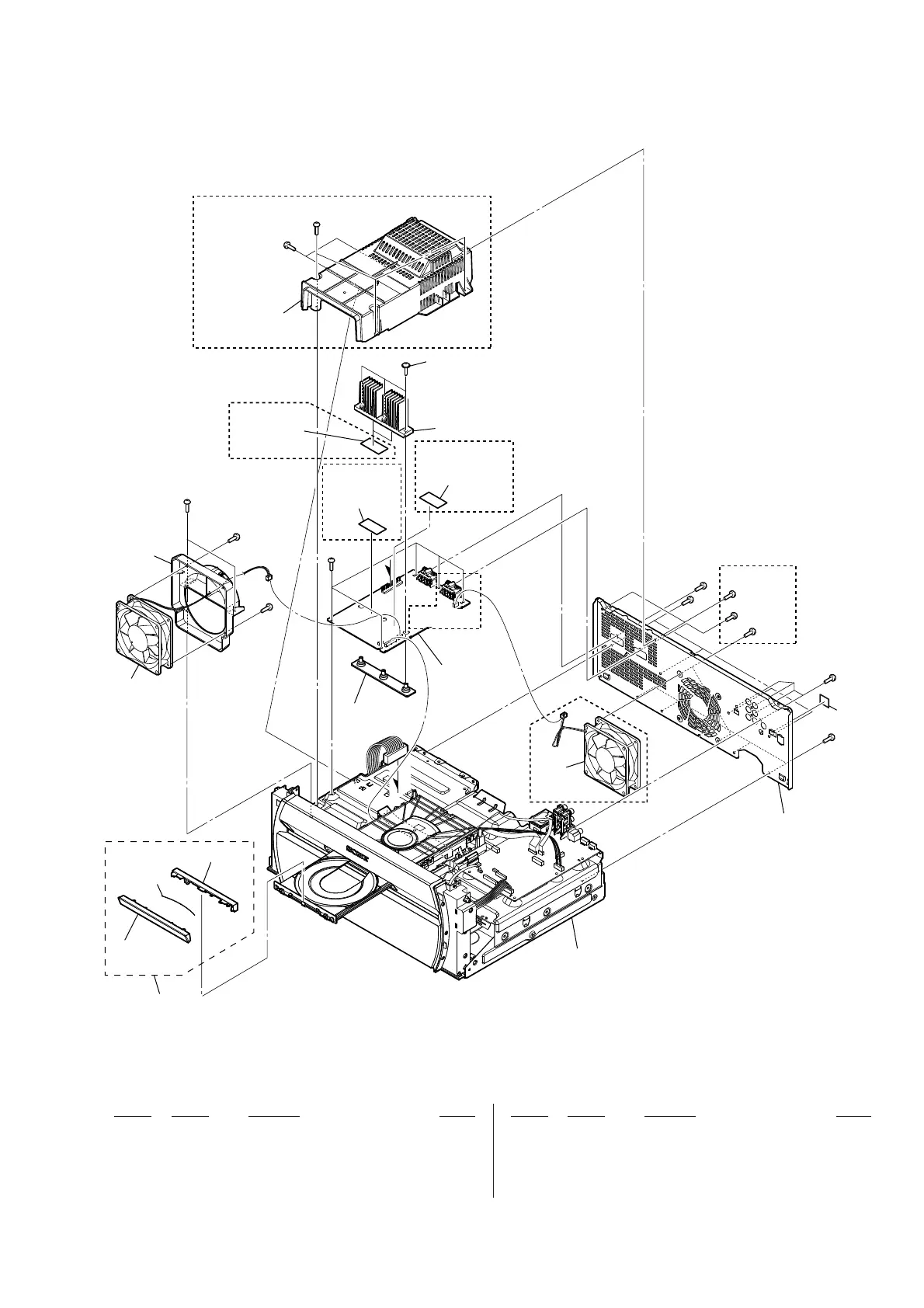

7-2. BACK PANEL SECTION
0 51 1-855-340-11 DC FAN
52 4-435-965-01 SCREW+PTPWH 2.6XL (DIA8.0)
53 A-2061-403-A 4CH DAMP BOARD, COMPLETE (SHAKEX7)
53 A-2061-407-A 4CH DAMP BOARD, COMPLETE
(SHAKEX1/SHAKEX3)
54 X-2590-779-1 PANEL, LOADING ASSY
55 4-295-431-01 SPRING, LOADING
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Ver. 1.3
