Sony HCD-SHAKEX3 - Top Panel Section

75
HCD-SHAKEX1/SHAKEX3/SHAKEX7
251 X-2590-783-1 KNOB, VOLUME ASSY
252 3-087-053-01 +BVTP2.6 (3CR)
253 4-548-135-01 KNOB, MIC
254 1-828-370-21 WIRE (FLAT TYPE) (21 CORE)
255 1-828-319-21 WIRE (FLAT TYPE) (11 CORE)
256 1-828-297-21 WIRE (FLAT TYPE) (7 CORE)
257 1-846-749-11 WIRE (FLAT TYPE) (6 CORE)
258 8-989-602-00 RC-S730 (WW)
259 X-2590-778-3 PANEL, TOP ASSY (SHAKEX3/SHAKEX7)
259 X-2591-613-2 PANEL, TOP ASSY (TETSU) (SHAKEX1)
260 A-2061-685-A DISPLAY BOARD, COMPLETE
EN001 1-493-008-11 ENCODER, ROTARY (VOLUME/MULTI CONTROL)
ND2001 1-483-519-11 VACUUM FLUORESCENT DISPLAY
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

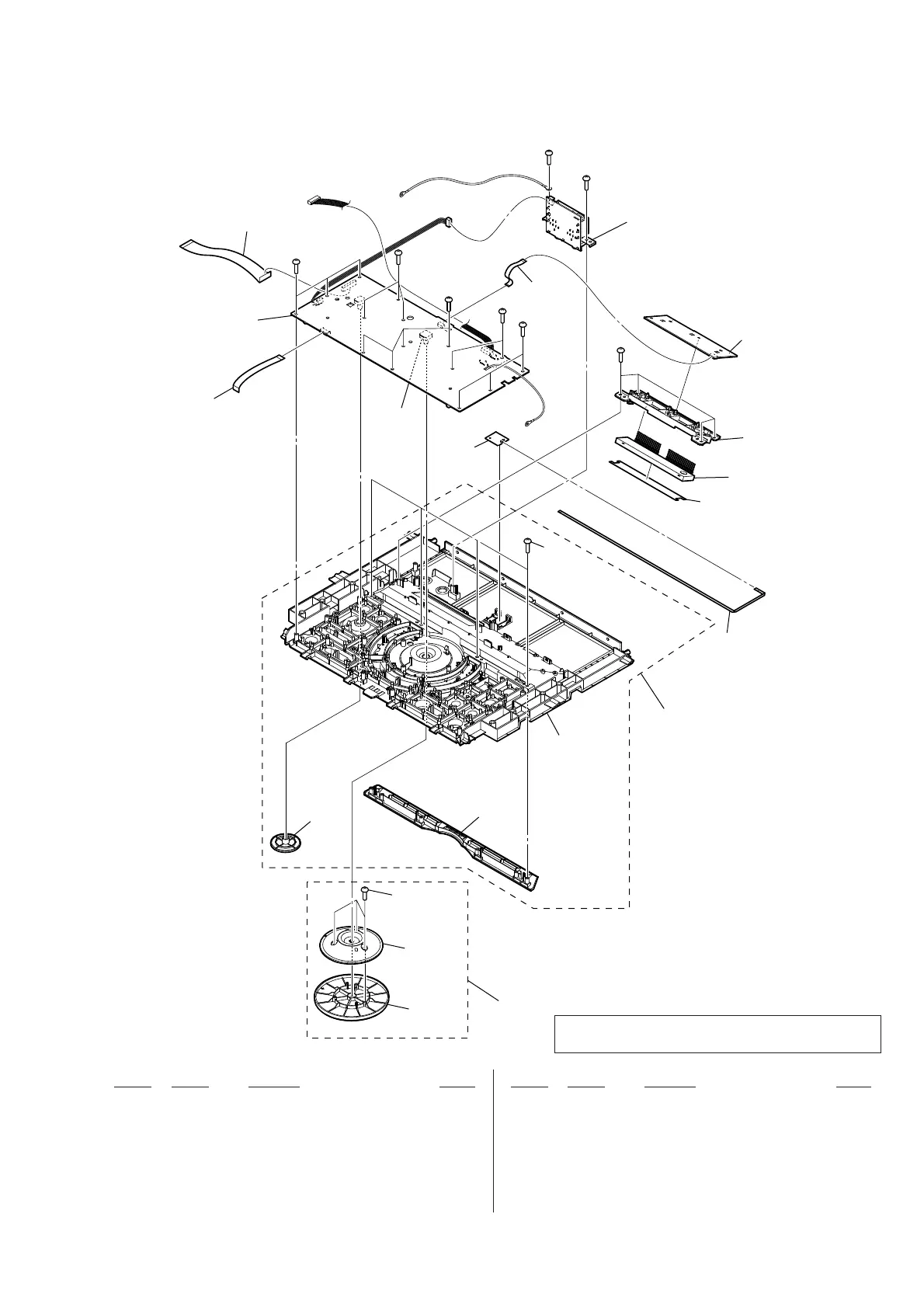

7-6. TOP PANEL SECTION
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
Ver. 1.3
#1
#1
#1
#1
#1
#1
#1
#1
not supplied
(MIC board)
not supplied
(STR board)
not supplied
ND2001
not supplied
not supplied
252
252
251
253
not
supplied
not
supplied
not
supplied
254
255
258
257
259
256
260
EN001
