Sony HCD-SHAKEX3 - MOTHERBOARD Board Section

72
HCD-SHAKEX1/SHAKEX3/SHAKEX7
101 1-828-372-12 WIRE (FLAT TYPE) (21 CORE)
102 A-2074-163-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX7: AR, LA9)
102 A-2074-164-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX7: MY, TH)
102 A-2074-165-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX7: E4, EA)
102 A-2074-166-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX3: AR, LA9)
102 A-2074-168-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX3: AEP, UK)
102 A-2074-169-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX3: RU)
102 A-2074-170-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX3: MY, TH)
102 A-2074-171-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX3: E4, EA)
102 A-2077-950-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX1: AEP, UK)
102 A-2077-951-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX1: RU)
102 A-2077-952-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX1: AUS)
102 A-2077-953-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX1: MY, TH)
102 A-2077-954-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX1: E4, EA)
102 A-2077-955-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX7: E12)
102 A-2077-957-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX1: AR, LA9)
102 A-2084-481-A MOTHERBOARD BOARD, COMPLETE
(for SERVICE) (SHAKEX3: AUS)
#1 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

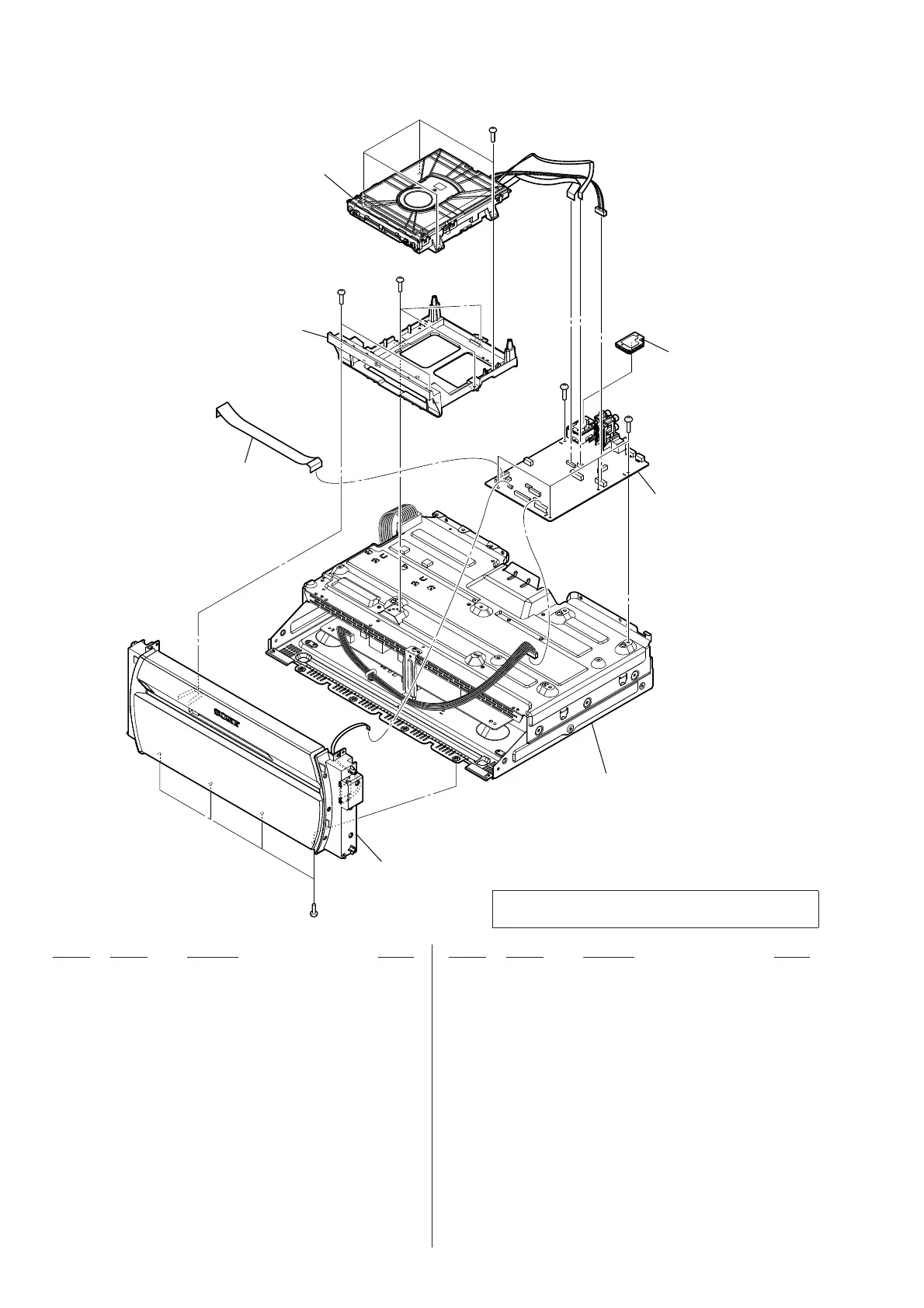

7-3. MOTHERBOARD BOARD SECTION
Note: If wire (fl at type) is replaced, install it after bending
it in the same form as that before replacement.
Ver. 1.3
front panel section
chassis section
DVD MECHANISM section
#1
#1
#1
#1
#1
#1
not supplied
not supplied
101
102
