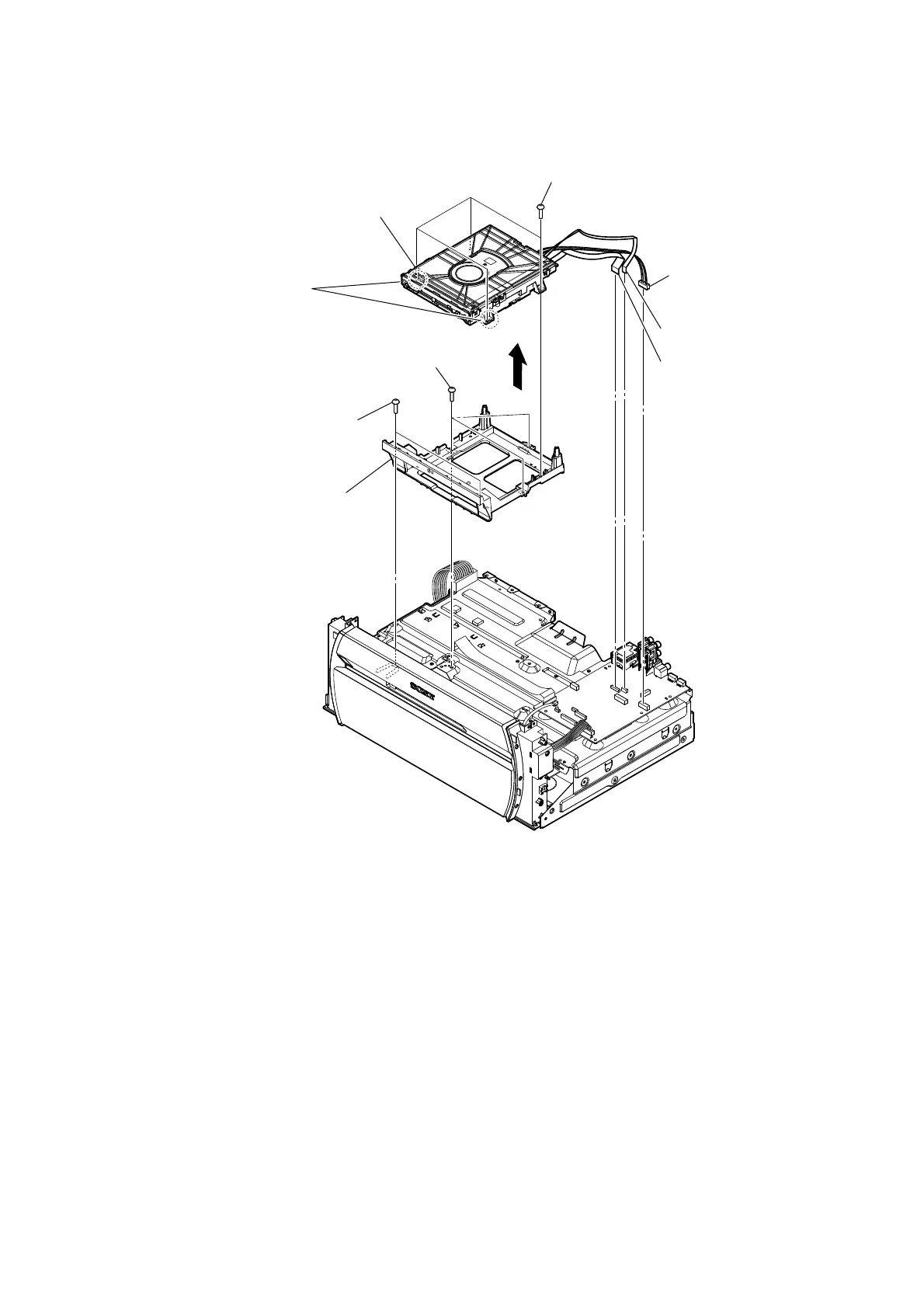

2-5. CDM90-DVBU204//M
6
1 CN401 (6P)
2 wire (flat type) (5 core)
(CN303)
3 cable, flexible flat (24 core)
(CN302)
4 four screws
(+BVTP 3 u 8)
8 three screws
(+BVTP 3 u 8)
9 two screws
(+BVTP 3 u 8)
Note: When you install the DVD
drive (CDM90-DVBU204//M),
please match the position of
the boss two places.
5 boss
7 CDM90-DVBU204//M
0 bracket, CDM
