Sony HCD-SR1 - Printed Wiring Board - AMP Board (Side A)

2525
HCD-SR1/SR2/SR3
HCD-SR1/SR2/SR3

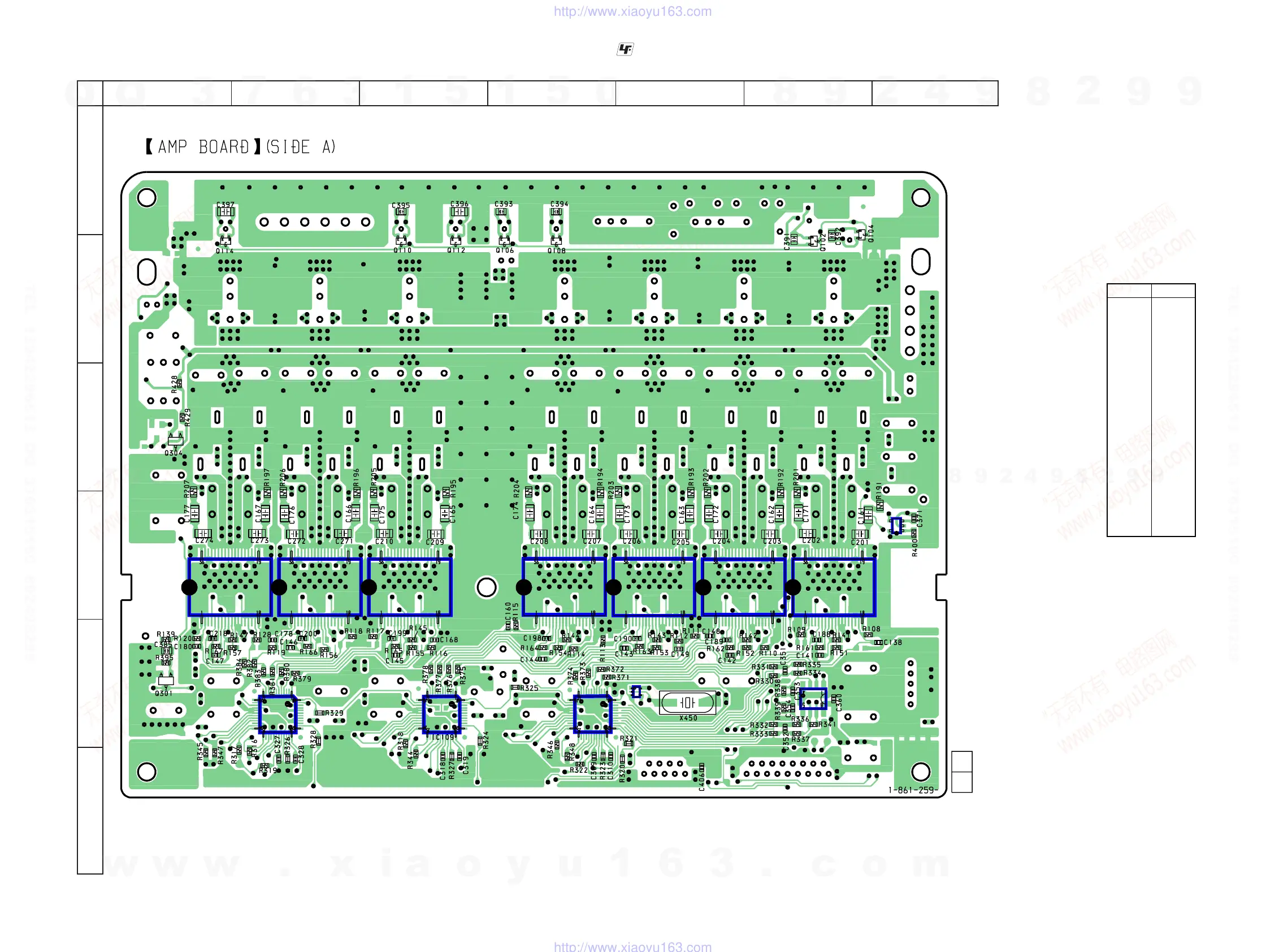

3-17. PRINTED WIRING BOARD — AMP BOARD (SIDE A) —
• See page 8 for Circuit Boards Location. :Uses unleaded solder.
IC303
IC101IC102IC103IC104IC105IC106IC107
IC305
IC108
IC109
IC110
IC301
12
A
B
C
D
E
F
34567
(22)
22
• Semiconductor
Location
Ref. No. Location
IC101 D-6
IC102 D-5
IC103 D-5
IC104 D-4
IC105 D-3
IC106 D-2
IC107 D-1
IC108 E-4
IC109 E-3
IC110 E-2
IC301 E-6
IC303 C-7
IC305 E-5
Q102 B-6
Q104 B-7
Q106 B-4
Q108 B-4
Q110 B-3
Q112 B-3
Q114 B-1
Q301 E-1
Q304 C-1
