HCD-SR1/SR2/SR3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

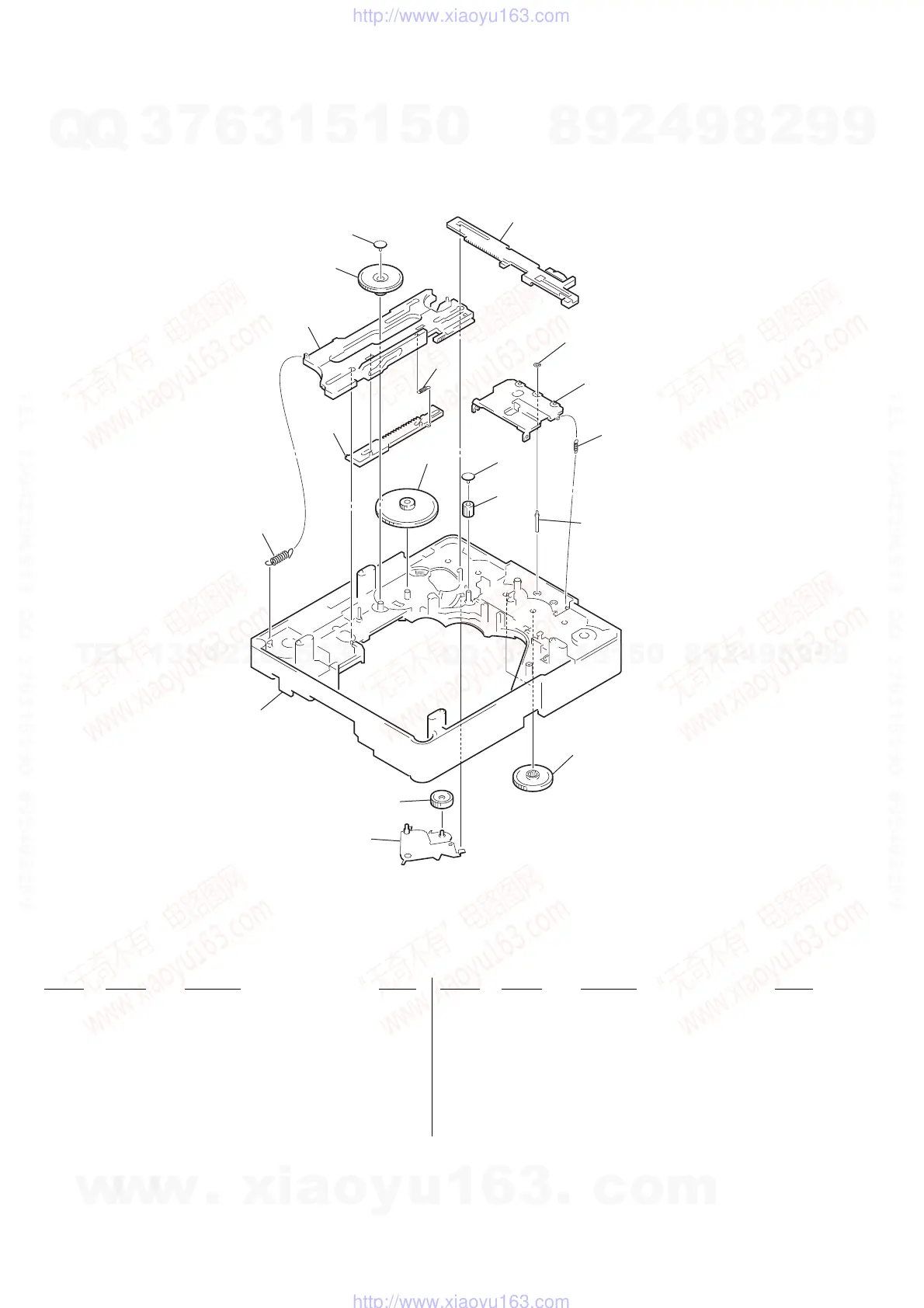

4-6. MECHANISM DECK SECTION-3
(CDM80-DVBU24)
501 4-245-643-01 GEAR (IDL-C)
502 X-4955-497-1 CHASSIS (BOTTOM) ASSY
503 4-248-722-01 SPR-E, DIR
504 4-245-642-01 GEAR (IDL-B)
505 4-245-814-01 LEVER (DIR FIRST)
506 4-245-633-01 SPR-E DIR BACK
507 4-245-660-01 LEVER (DIR)
508 4-245-641-01 GEAR (IDL-A)
509 4-245-640-01 GEAR (CAP)
510 4-245-628-01 LEVER (BU LOCK)
511 4-248-206-01 WASHER (3-1-0.4)
512 4-245-624-01 LEVER, CLOSE
513 4-245-635-01 SPR-E LEVER CLOSE
514 4-245-629-01 GEAR (BU LOCK)
515 4-245-644-01 GEAR (IDL-D)
not
supplied
not
supplied
501
515
502
505
503
507
508
509
504
506
511
512
513
514
509
