HCD-SR1/SR2/SR3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

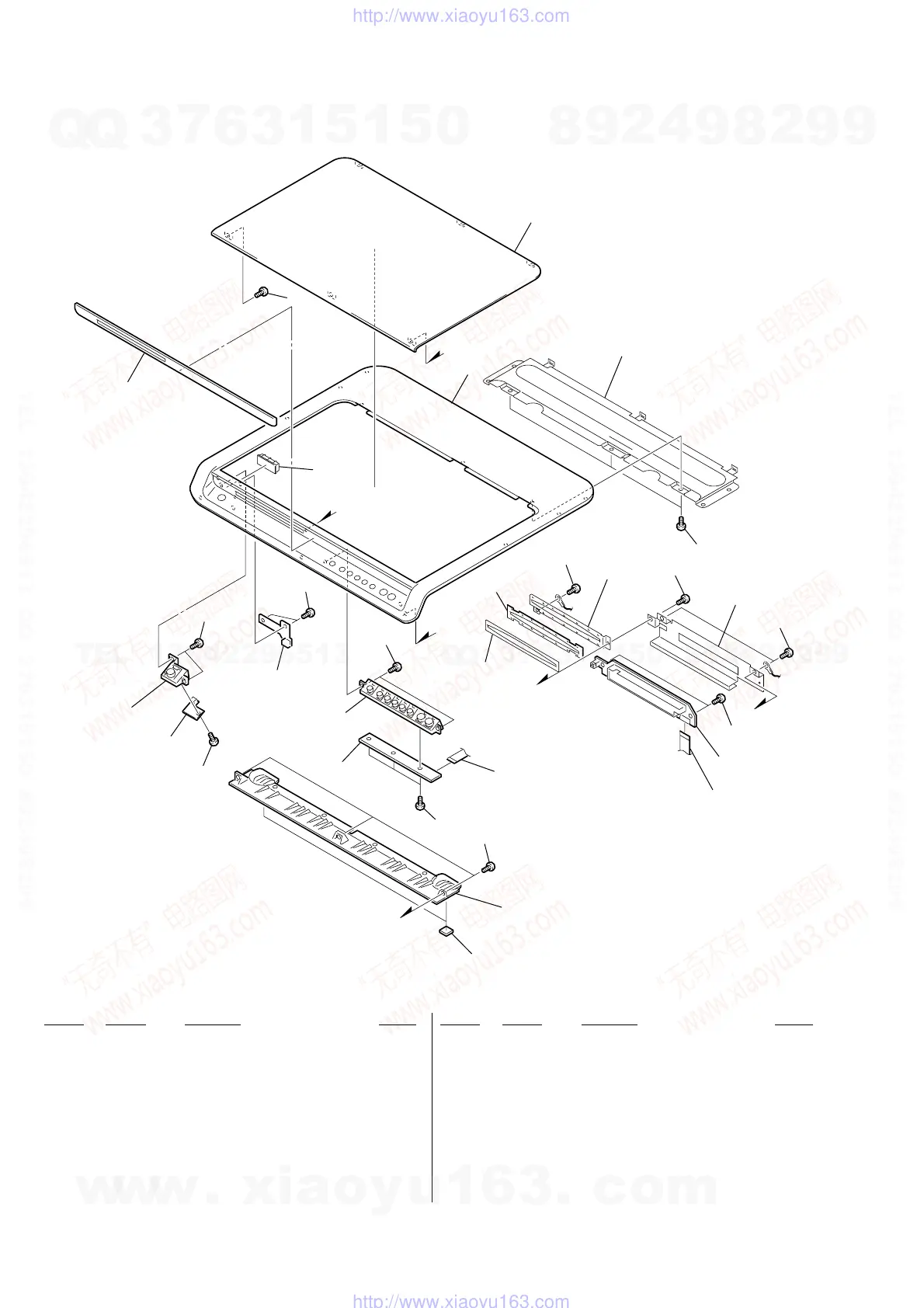

4-2. FRONT PANEL SECTION
not supplied
not supplied
not supplied
not supplied
not supplied
not
supplied
a
a
b
c
c
b
not supplied
51
52
53
61
62
64
62
62
62
61
61
61
62
63
54
61
61
62
55
59
60
56
58
57
51 4-253-879-01 PANEL (AL), FRONT
52 4-253-880-01 PANEL (ML), FRONT (SR2: AEP, UK, RU)
52 4-253-880-11 PANEL (ML), FRONT
(SR2: EA, HK, SP, KR, AUS/SR3)
52 4-253-880-71 PANEL (ML), FRONT (SR1)
53 X-4956-312-1 WINDOW SUB ASSY
54 1-829-279-11 FLEXIBLE FLAT CABLE (7 CORE)
55 X-4956-308-1 BUTTON (POWER) SUB ASSY
56 4-253-902-01 CUSHION, SLOT
57 X-4956-309-1 BUTTON (PLAY) SUB ASSY
58 A-1056-508-A FL BOARD, COMPLETE (SR1/SR3)
58 A-4751-729-A FL BOARD, COMPLETE (SR2)
59 4-253-892-01 PANEL, BOTTOM (SR3)
59 4-253-892-01 PANEL, BOTTOM (SR2)
60 4-232-478-31 FOOT
61 3-077-331-01 +BV3 (3-CR) (SR3)
61 4-253-902-01 CUSHION, SLOT (SR2)
62 4-931-757-31 SCREW (DIA.2.6X8) (IT3B), TAPPING
63 1-828-350-11 WIRE (FLAT TYPE) (17 CORE)
64 1-861-987-12 SONY LAMP BOARD
