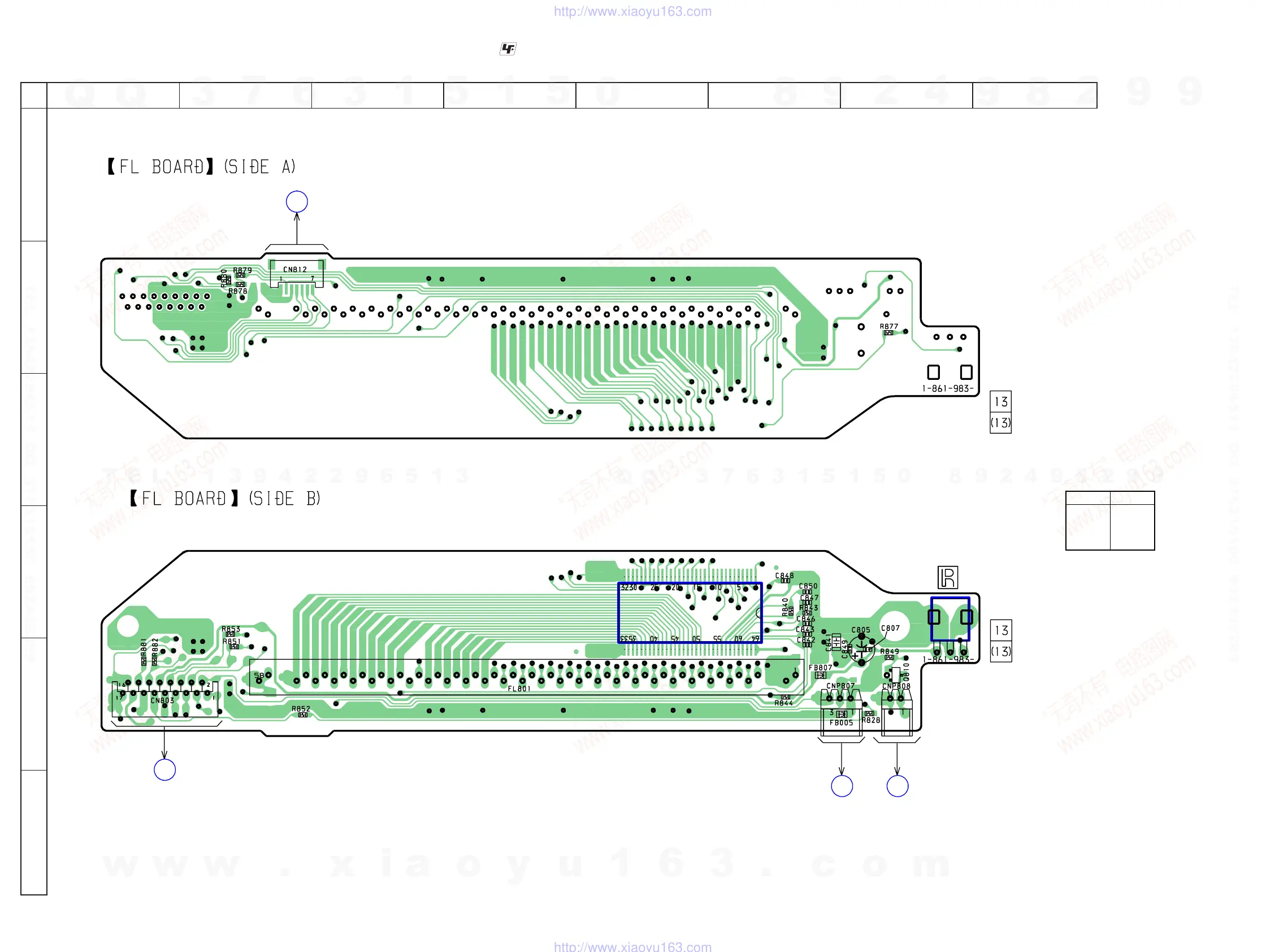

3-28. PRINTED WIRING BOARD — FL BOARD —
• See page 8 for Circuit Boards Location. :Uses unleaded solder.
IC803
IC801
L
CONTROL KEY
BOARD
CN810
(Page 39)
O
DDCON
BOARD
CN801
(Page 34)
M
PW KEY
BOARD
CN805
(Page 39)
N
SONY LAMP
BOARD
CN806
(Page 39)
12
A
B
C
D
E
F
345678
• Semiconductor
Location
Ref. No. Location
IC801 D-7
IC803 D-5
Q810 D-7
