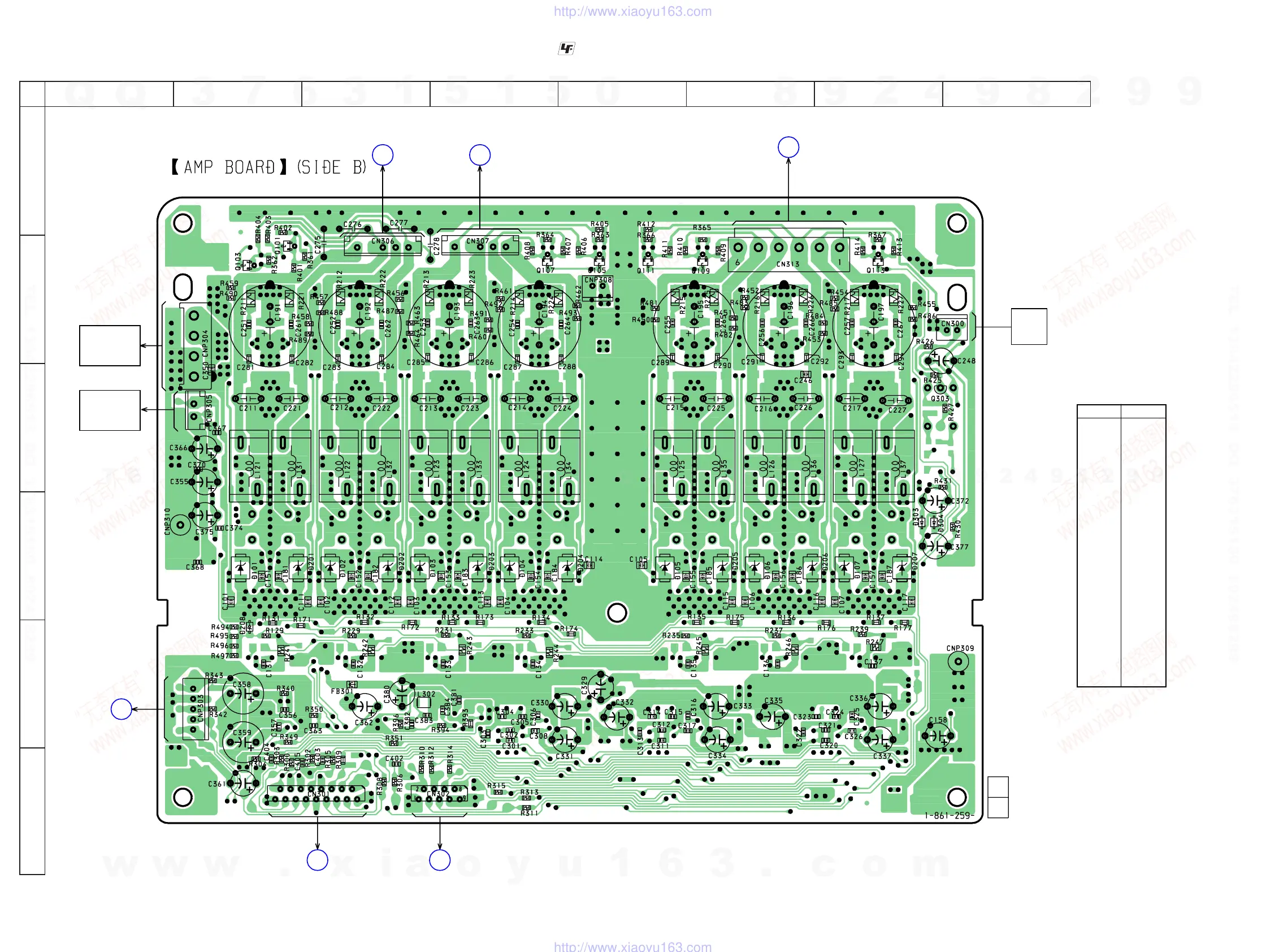

3-18. PRINTED WIRING BOARD — AMP BOARD (SIDE B) —
• See page 8 for Circuit Boards Location. :Uses unleaded solder.
(Page 38)
K
(Page 38)
J
(Page 38)
SPK BOARD
CN309
I
C B
HP BOARD
CN811
(Page 39)
H
SPK BOARD
CN311
SPK BOARD
CN312
SWITCHING
REGULATOR
CN4
SWITCHING
REGULATOR
CN7
DMB08
BOARD
CN004
(Page 13)
DMB08
BOARD
CN001
(Page 13)
22
(22)
12
A
B
C
D
E
F
34567
8
FAN
1
2
16
17
• Semiconductor
Location
Ref. No. Location
D101 D-2
D102 D-3
D103 D-4
D104 D-4
D105 D-5
D106 D-6
D107 D-7
D201 D-3
D202 D-3
D203 D-4
D204 D-5
D205 D-6
D206 D-7
D207 D-7
D208 E-2
D303 D-7
D304 D-7
Q101 B-2
Q103 B-2
Q105 B-5
Q107 B-4
Q109 B-6
Q111 B-5
Q113 B-7
Q303 C-7
