4
HCD-SR1/SR2/SR3

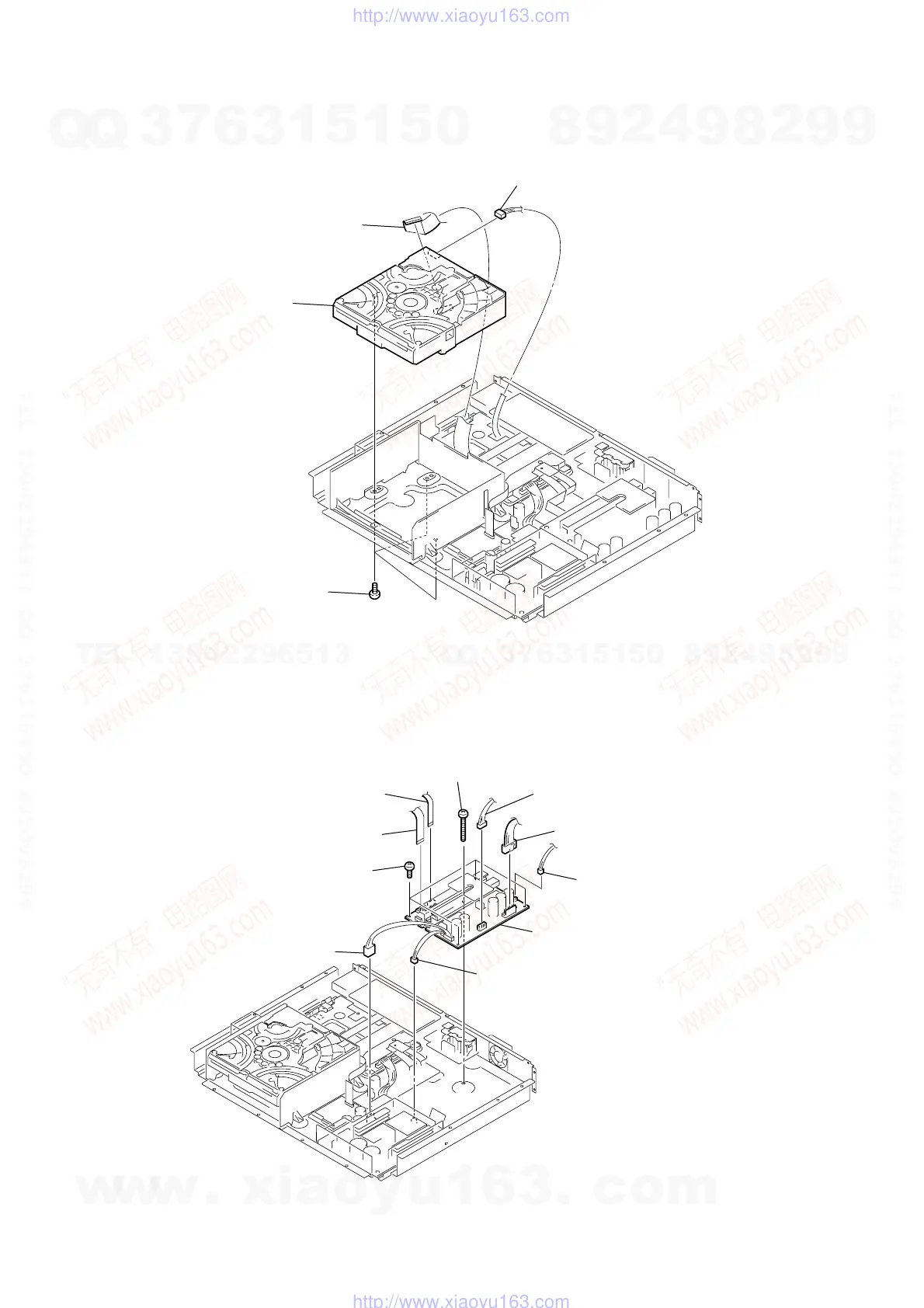

1-4. MECHANISM DECK (CDM80A-DVBU24)
2 connector
(7p) (CN701)
4 mechanism deck
(CDM80A-DVBU24)
1 three screws
(+BV3)
3 wire (flat type)
(29 core)
1-5. AMP BOARD
1 wire (flat type)
(17 core) (CN301)
2 wire (flat type)
(9 core) (CN302)
q; AMP board
5 screw
(+BVTP 3
× 16)
7 connector
(2p) (CN300)
8 connector
(6p) (CN313)
9 connector
(5p) (CN306)
3 connector
(4p) (CN4)
4 connector
(2p) (CN7)
6 four screws
(+BV3)
