Sony HCD-SR1 - Page 84

6
HCD-SR1/SR2/SR3

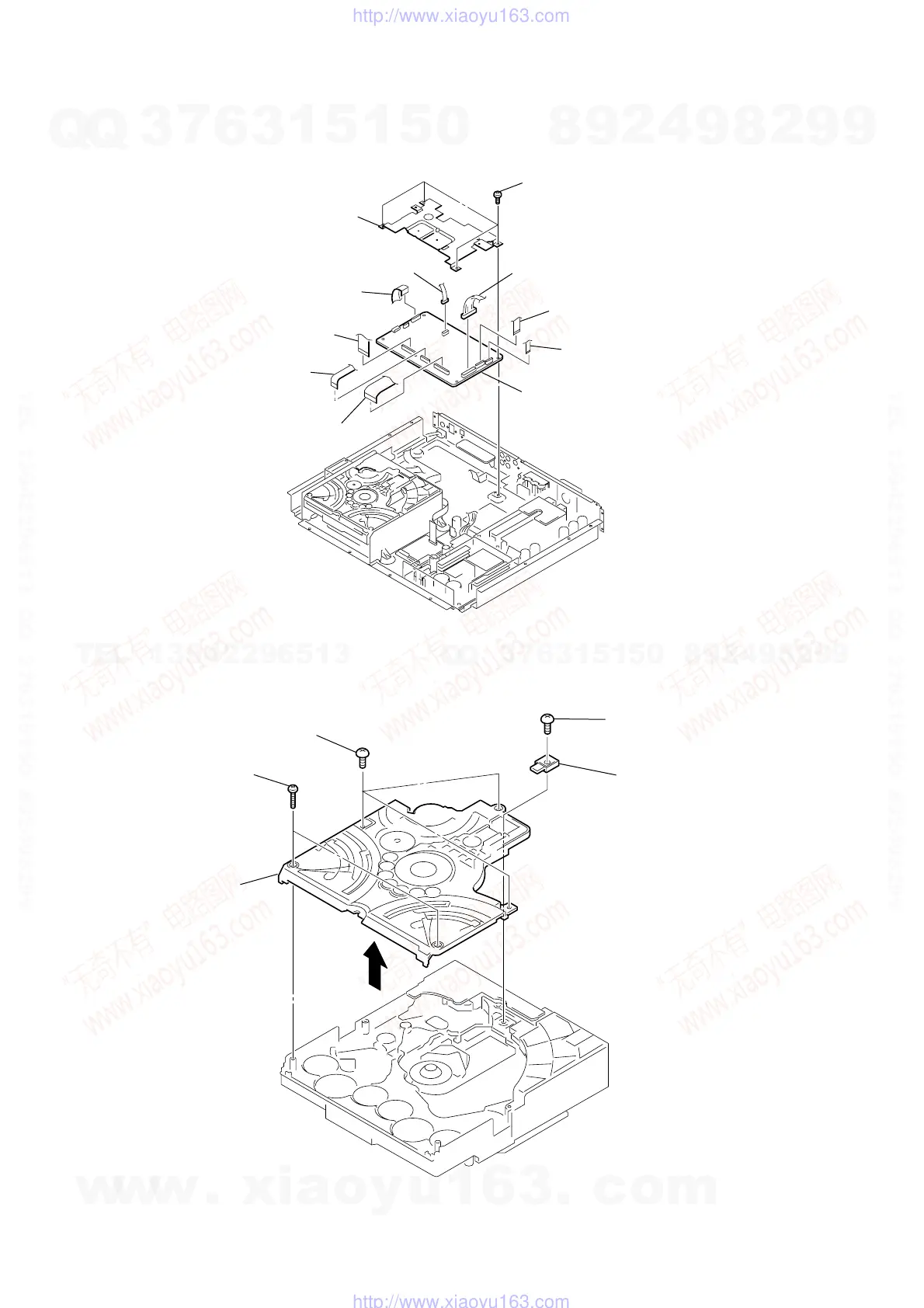

1-8. DMB08 BOARD
7 wire (flat type)
(17 core) (CN004)
8 wire (flat type)
(9 core) (CN001
)
2 wire (flat type)
(29 core) (CN002)
3 wire (flat type)
(15 core) (CN003)
1 connector
(7p) (CN007)
6 connector
(13p) (CN008)
qa DMB08 board
5 bracket (DMB)
4 four screws
(+BV3)
9 wire (flat type)
(29 core) (CN401)
q; wire (flat type)
(17 core) (CN005)
1-9. CHASSIS (TOP)
1 screw
(+BVTP 2.6
× 8)
4 three screws
(+BVTP 2.6
× 8)
3 two screws
(+P 2
× 10)
5 chassis (top)
2 lever (CL UP2
)
