11
HCD-SR1/SR2/SR3

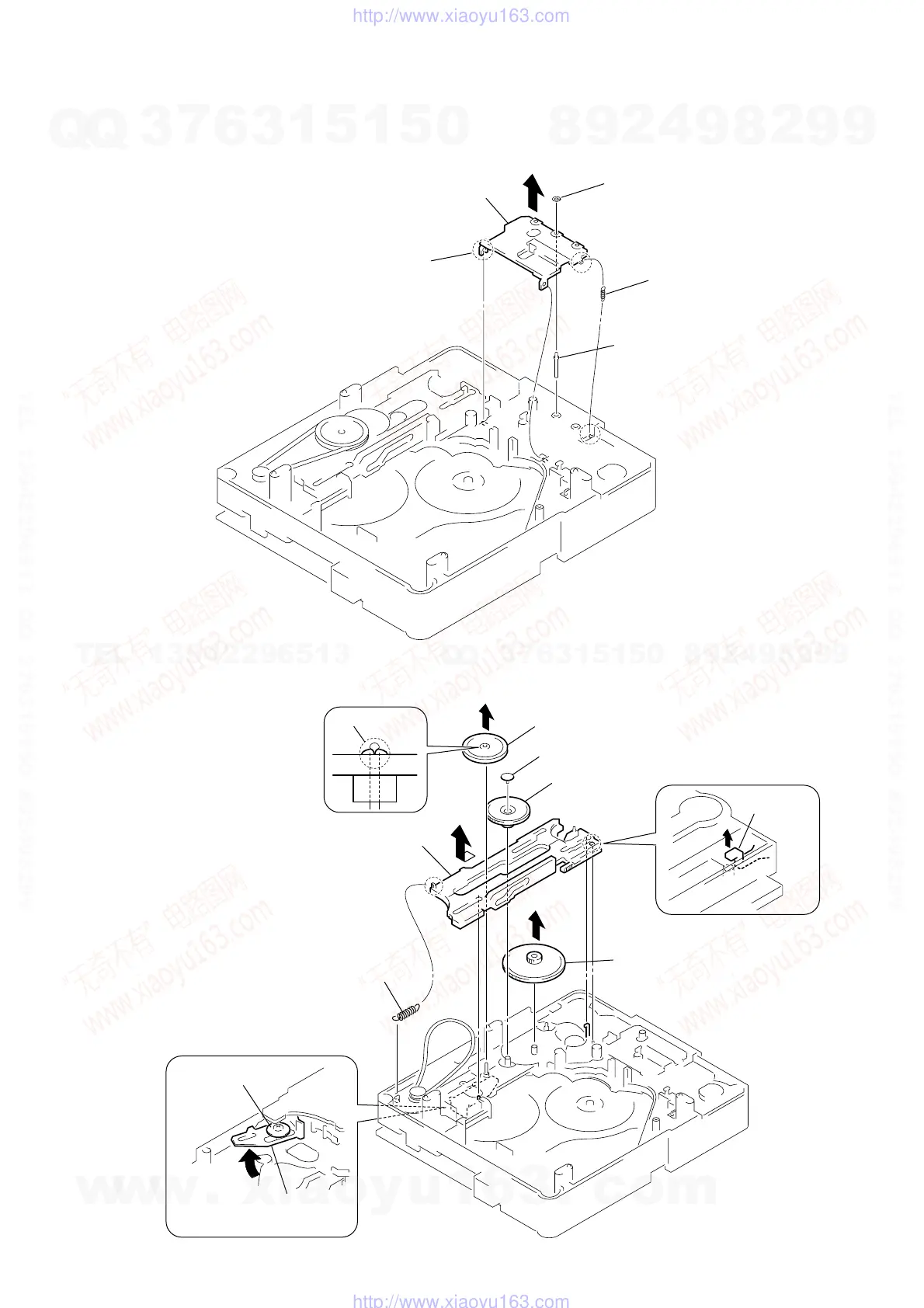

1-17. CLOSE LEVER
3 claw
5 close lever
1 washer (3-1-0.4)
2 close lever spring
4 shaft disc stop
1-18. DIR LEVER, GEAR (IDL-B)
3 gear puley
2 claw
9 DIR lever
5 gear (IDL-A)
q; gear (IDL-B)
1 DIR spring
8 stopper
6 Loosen the screw.
7 Hold the release lever
and change the direction.
4 gear (cap)
