Sony HCD-XB4 - Main and CD Mechanism Disassembly; MAIN SECTION; CD MECHANISM DECK SECTION

– 23 –
MAIN SECTION
CD MECHANISM DECK SECTION

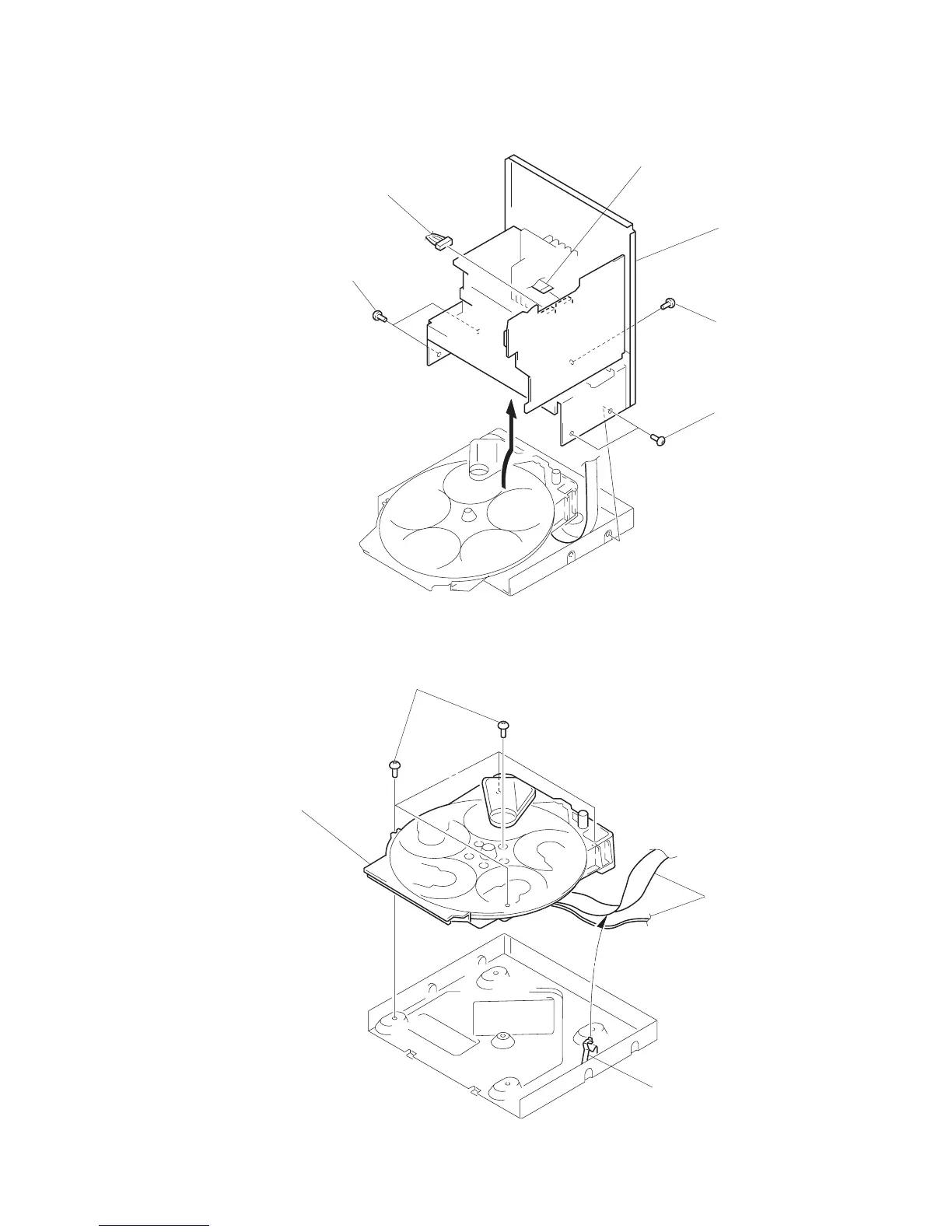

1 flat wire (CN202)
2 connector
(CN203)
3 two screws
(BVTP 3
× 8)
3 screw
(BVTP 3
× 8)
3 two screws
(BVTP 3
× 8)
4 main section
3 five screws
(BVTP 3
× 8)
4 CD mechanism
deck section
2 flat wire
and lead wire
1 Open the clamp.
