Sony HCD-XB4 - Audio Board and Capstan Motor Disassembly; AUDIO BOARD; CAPSTAN MOTOR

– 28 –

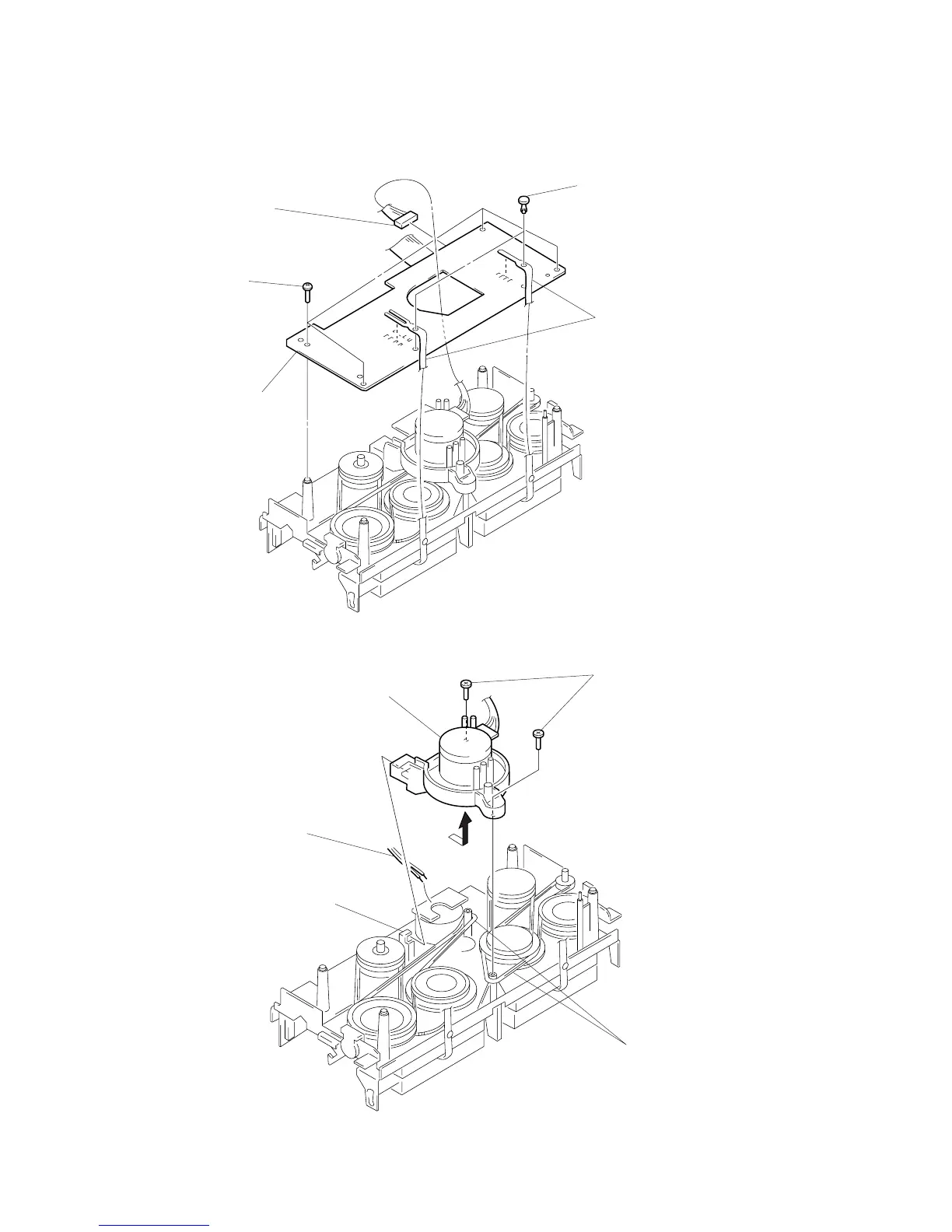

AUDIO BOARD
3 claw
2 two screws
(BTP 2.6
× 8)
4 Removal the capstan motor
to direction of the arrow.
1 Break the soldering of
motor lead.
1 connector
(CN651)
2 two rivets
3 Break the soldering of two
flexible flat cables.
4 four screws
(BTP 2.6
× 4)
5 MD board
5 Hang the
two belts.
CAPSTAN MOTOR
