Sony HCD-XB4 - CD Lid and Panel Sub-Assembly Disassembly; CD LID ASSY SECTION; PANEL (A); (B) SUB ASSY

– 25 –

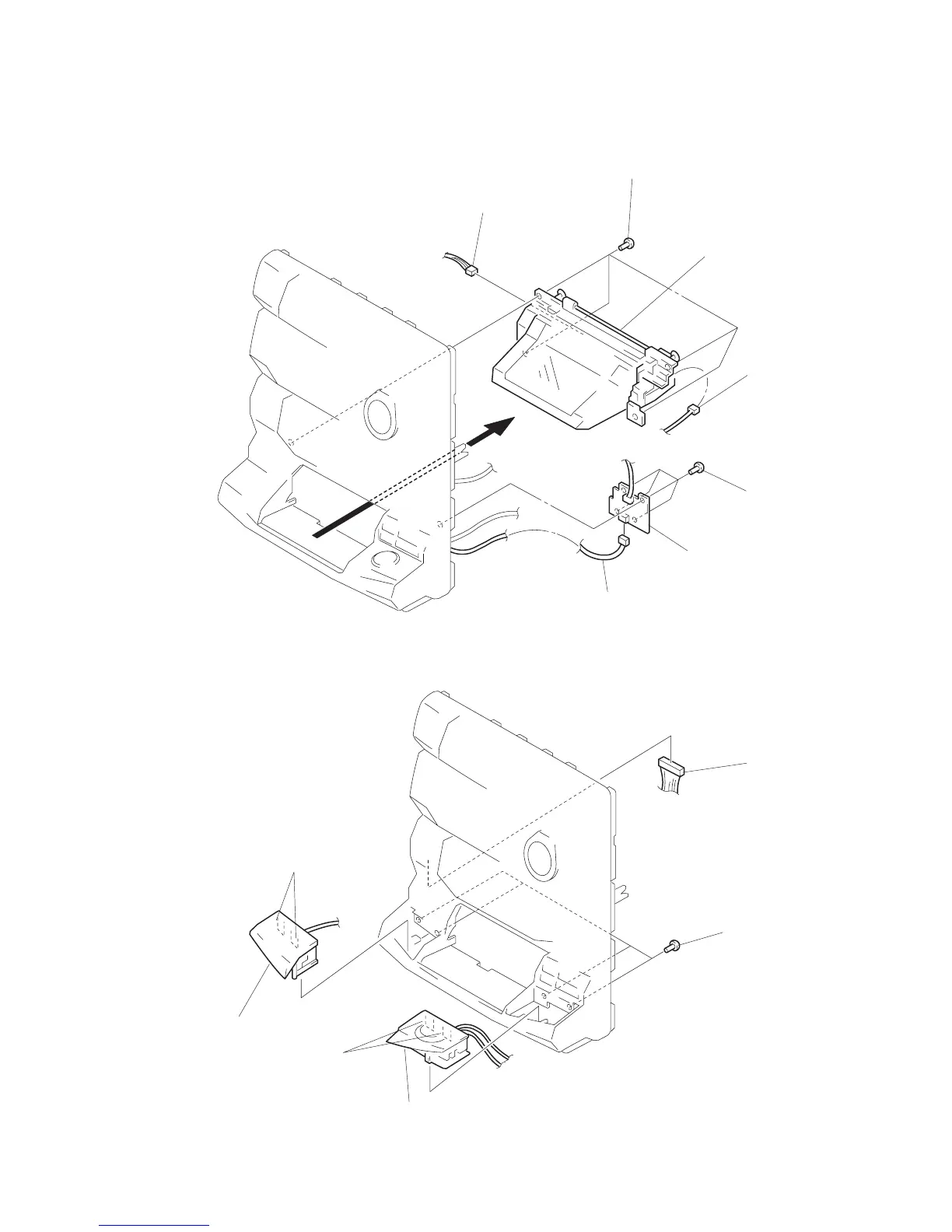

CD LID ASS’Y SECTION
6 four screws
(BVTP 2.6
× 8)
7 CD lid ass’y
4 connector
(CN661)
2 four screws
(BVTP 2.6
× 8)
3 CD-B1 SW board
1 connector
(CN642)
5 connector
(CN671)
PANEL (A) / (B) SUB ASS’Y
2 four screws
(BVTP 2.6
× 8)
3 two claws
4 panel (A) sub ass’y
5 two claws
6 panel (B) sub ass’y
1 connector
(CN612)
