Sony HCD-XB4 - Base Unit and Disc Table Assembly; BASE UNIT; DISC TABLE

– 26 –

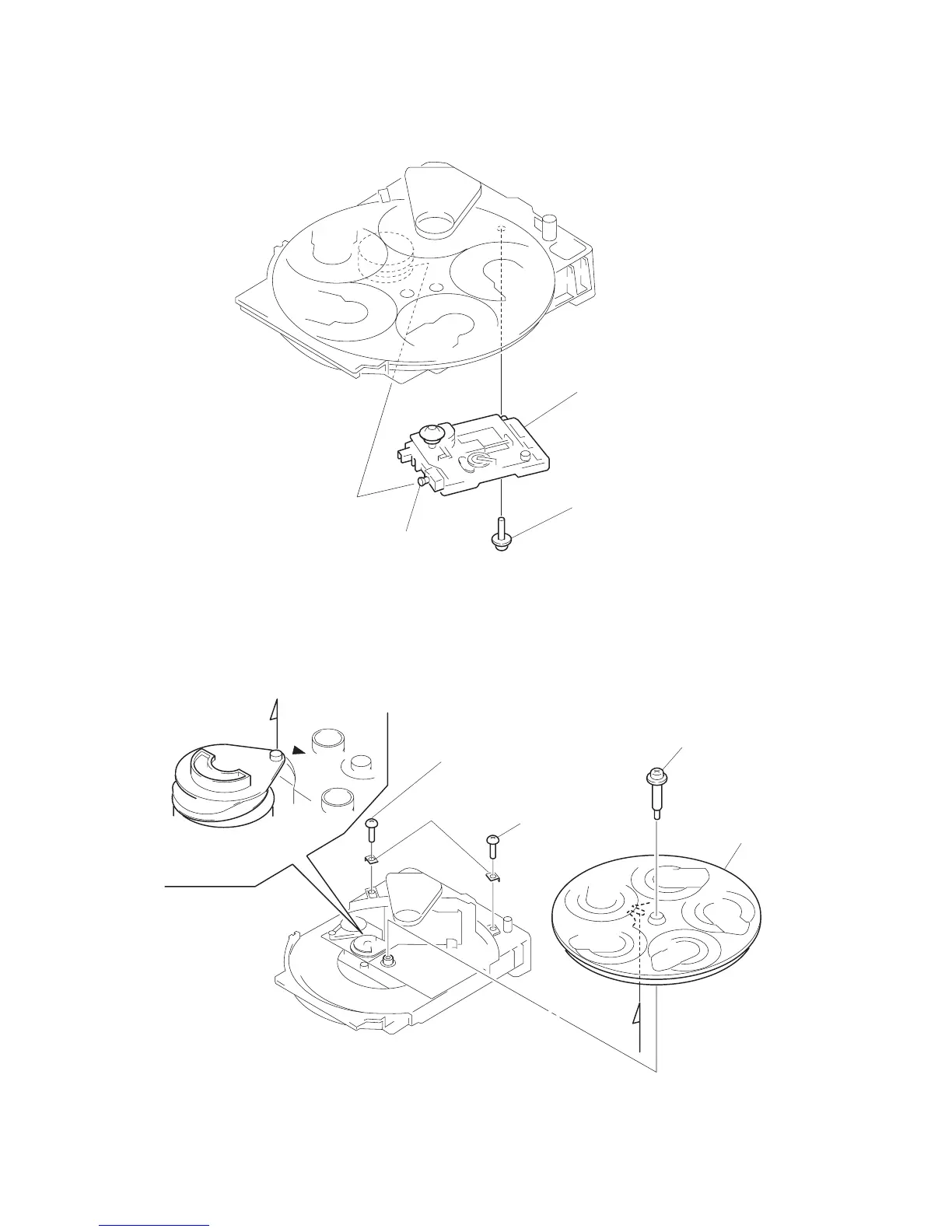

BASE UNIT
1 yoke bracket
2 boss
3 base unit
DISC TABLE
Note:
When the disc table is installed, adjust the positions
of roller cam and mark z as shown in the figure, then
set to the groove of disc table.
A
A
1
screw
(BVTP 3
× 8)
1 screw
(BVTP 3
× 8)
2 bracket (BU)
3 step screw
4 disc table
