Sony HCD-XB4 - (4) CHASSIS SECTION

– 89 –

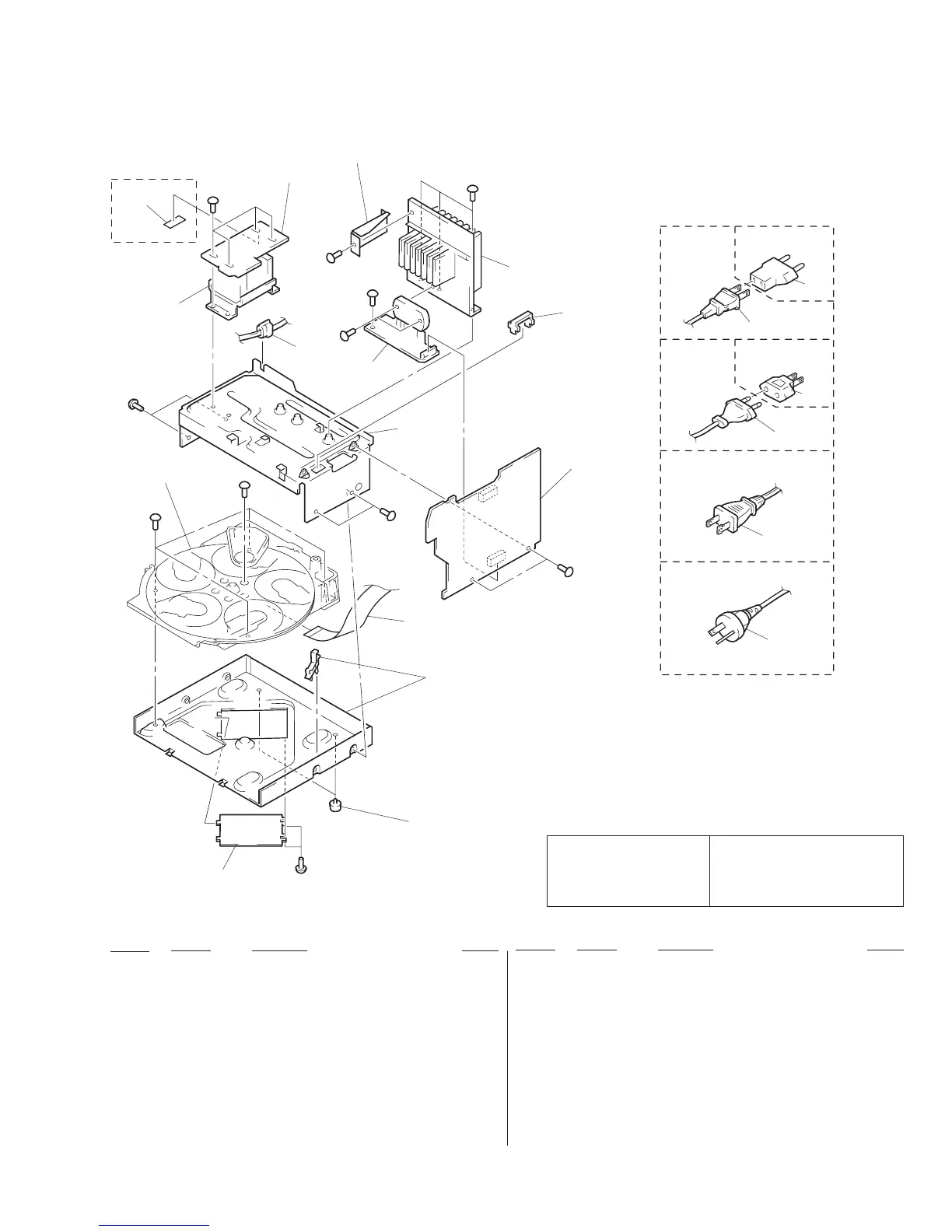

(4) CHASSIS SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 151 1-664-014-11 TRANS BOARD
152 3-701-948-20 LABEL (T4A), FUSE (E, AR, MX, PX)
153 3-703-244-00 BUSHING (FBS001), CORD (US, CND)
153 4-966-266-01 BUSHING (S) (FBS002), CORD (EXCEPT US, CND)
* 154 A-4392-442-A POWER AMP BOARD, COMPLETE (US, CND)
* 154 A-4392-460-A POWER AMP BOARD, COMPLETE
(EXCEPT US, CND)
* 155 A-4392-474-A MAIN BOARD, COMPLETE (US, CND)
* 155 A-4392-479-A MAIN BOARD, COMPLETE (E, AR, MX)
* 155 A-4392-709-A MAIN BOARD, COMPLETE (AUS, PX)
156 1-777-868-11 WIRE (FLAT TYPE) (19 CORE)
157 X-4941-228-1 FOOT (F22125H-M)
! 158 1-569-007-11 ADAPTOR, CONVERSION 2P (PX)
! 159 1-569-008-11 ADAPTOR, CONVERSION 2P (AR)
* 160 4-988-533-11 HOLDER, PCB
! CNP901 1-558-943-41 CORD, POWER (E, MX, PX)
! CNP901 1-575-042-21 CORD, POWER (US, CND)
! CNP901 1-575-651-21 CORD, POWER (AR)
! CNP901 1-696-845-11 CORD, POWER (AUS)
! T901 1-431-046-11 TRANSFORMER, POWER (US, CND)
! T901 1-431-048-11 TRANSFORMER, POWER (EXCEPT US, CND)
The components identified by
mark ! or dotted line with
mark ! are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ! sont critiques pour la
sécurité.
Ne les remplacer que par une pièce
portant le neméro spécifié.
E, AR, MX, PX
152
#2
151
#1
not supplied
#1
#1
154
#1
#1
#1
#1
#1
#1
155
CDM37L-5BD29AL
156
158
159
CNP901
CNP901
CNP901
E, MX, PX
AR
CNP901
not
supplied
#4
153
not supplied
160
not supplied
157
not supplied
T901
PX
AR
AUS
US, CND
