Sony HCD-XB4 - (3) FRONT PANEL SECTION-2

– 88 –

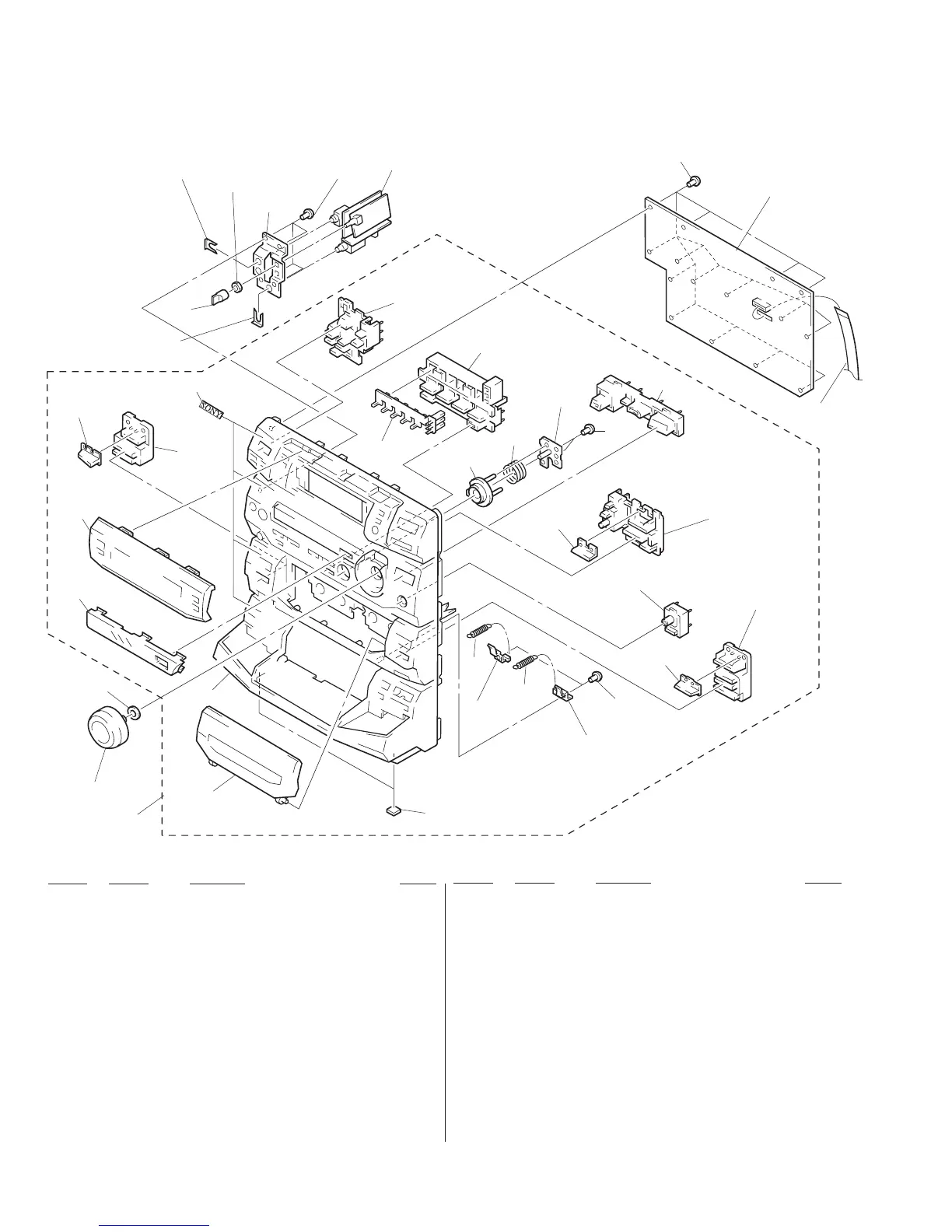

(3) FRONT PANEL SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 A-4384-413-A PANEL ASSY, FRONT (US, CND)
101 A-4384-414-A PANEL ASSY, FRONT (EXCEPT US, CND)
102 4-987-036-01 KNOB (VOL)
103 X-4947-961-1 LID ASSY, CASSETTE
104 4-987-032-01 DISPLAY (TA)
105 4-987-028-01 DISPLAY (ST)
106 4-987-021-01 INDICATOR (TC A)
107 4-986-997-01 BUTTON (DECK.A)
108 4-963-404-21 EMBLEM (5-A), SONY
109 4-973-644-01 KNOB (MIC)
110 4-951-620-01 SCREW (2.6X8), +BVTP
* 111 A-4392-452-A HEADPHONE-MIC BOARD, COMPLETE
112 4-986-986-01 BUTTON (POWER)
113 4-987-012-01 INDICATOR (TA)
114 X-4947-964-1 BUTTON (SOUND) ASSY
115 4-986-990-01 BUTTON (CURSOR)
116 4-978-683-01 SPRING, COMPRESSION
* 117 4-987-041-01 COVER, CURSOR
118 X-4947-963-1 BUTTON (FUNCTION) ASSY
* 119 A-4392-477-A PANEL BOARD, COMPLETE
120 1-773-051-11 WIRE (FLAT TYPE) (17 CORE)
121 X-4947-962-1 BUTTON (TUNER) ASSY
122 4-987-013-01 INDICATOR (TUNER)
123 X-4947-968-1 BUTTON (WOOFER) ASSY
124 X-4947-967-1 BUTTON (DECK B) ASSY
125 4-987-022-01 INDICATOR (TC B)
126 4-987-996-01 SPRING (TC LID), TENSION
127 4-948-236-01 CUSHION (107)
