Sony HCD-XB4 - (2) FRONT PANEL SECTION-1

– 87 –
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark

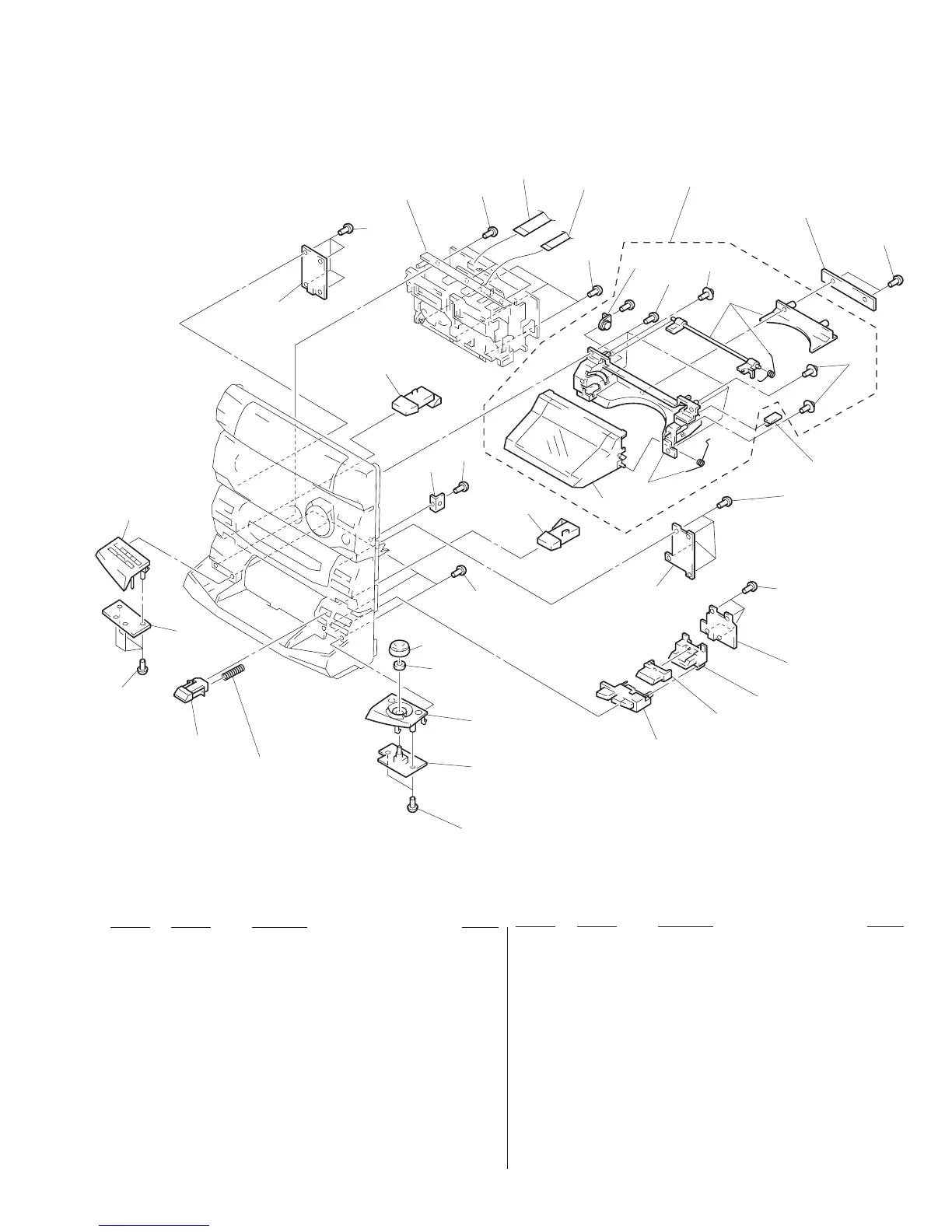

(2) FRONT PANEL SECTION-1
51 4-987-995-01 SPRING (CD EJECT), COMPRESSION
52 4-987-001-01 BUTTON (EJECT CD)
* 53 1-664-009-11 CD-A SW BOARD
54 X-4948-295-1 PANEL (A) SUB ASSY (US, CND)
54 X-4948-348-1 PANEL (A) SUB ASSY (EXCEPT US, CND)
* 55 1-664-012-11 TC-A SW BOARD
56 4-986-999-01 BUTTON (EJECT A)
57 4-951-620-01 SCREW (2.6X8), +BVTP
58 1-773-161-11 WIRE (FLAT TYPE) (21 CORE)
59 1-769-949-11 WIRE (FLAT TYPE) (11 CORE)
60 3-354-963-01 DAMPER
* 61 1-664-017-11 LED BOARD
62 4-957-577-01 SCREW PTP WH (2.6X8) (DIA. 10)
* 63 1-664-016-11 DOOR SW BOARD
64 4-987-038-01 LID, DISC
* 65 4-987-933-01 BRACKET (TA)
66 4-987-000-01 BUTTON (EJECT B)
* 67 1-664-013-11 TC-B SW BOARD
* 68 1-664-010-11 CD-B1 SW BOARD
69 X-4947-969-1 BUTTON (CD STOP) ASSY
70 4-987-037-01 KNOB (JOG)
71 X-4948-296-1 PANEL (B) SUB ASSY
* 72 1-664-011-11 CD-B2 SW BOARD
73 A-4384-396-A LID ASSY, CD
74 4-987-002-01 BUTTON (CD, PLAY)
75 4-987-014-01 INDICATOR (CD)
TCM-220WR2
57
57
58
59
57
73
61
57
55
56
54
53
57
52
51
57
72
71
supplied
with S711
70
57
57
65
66
57
67
57
68
69
64
not
supplied
not
supplied
62
60
62
63
74
75
#1
57
