9 Measurements and Adjustments
9.1. Electric Adjustment
• Adjustment method is different from a conventional SD video camera.
• An exclusive jig and PC (including software for adjustment “Tatsujin”) are necessary for electric adjustment.
• A USB driver for service is necessary to communication with PC.
• Connection method of the main unit and an exclusive adjustment jig as follows
9.1.1. Adjustment Procedure
• Connect the main unit to PC with USB.
The adjustment instruction is available at "Software download" on the "Support Information from NWBG/VDBG-PAVC" web-site
in "TSN System".

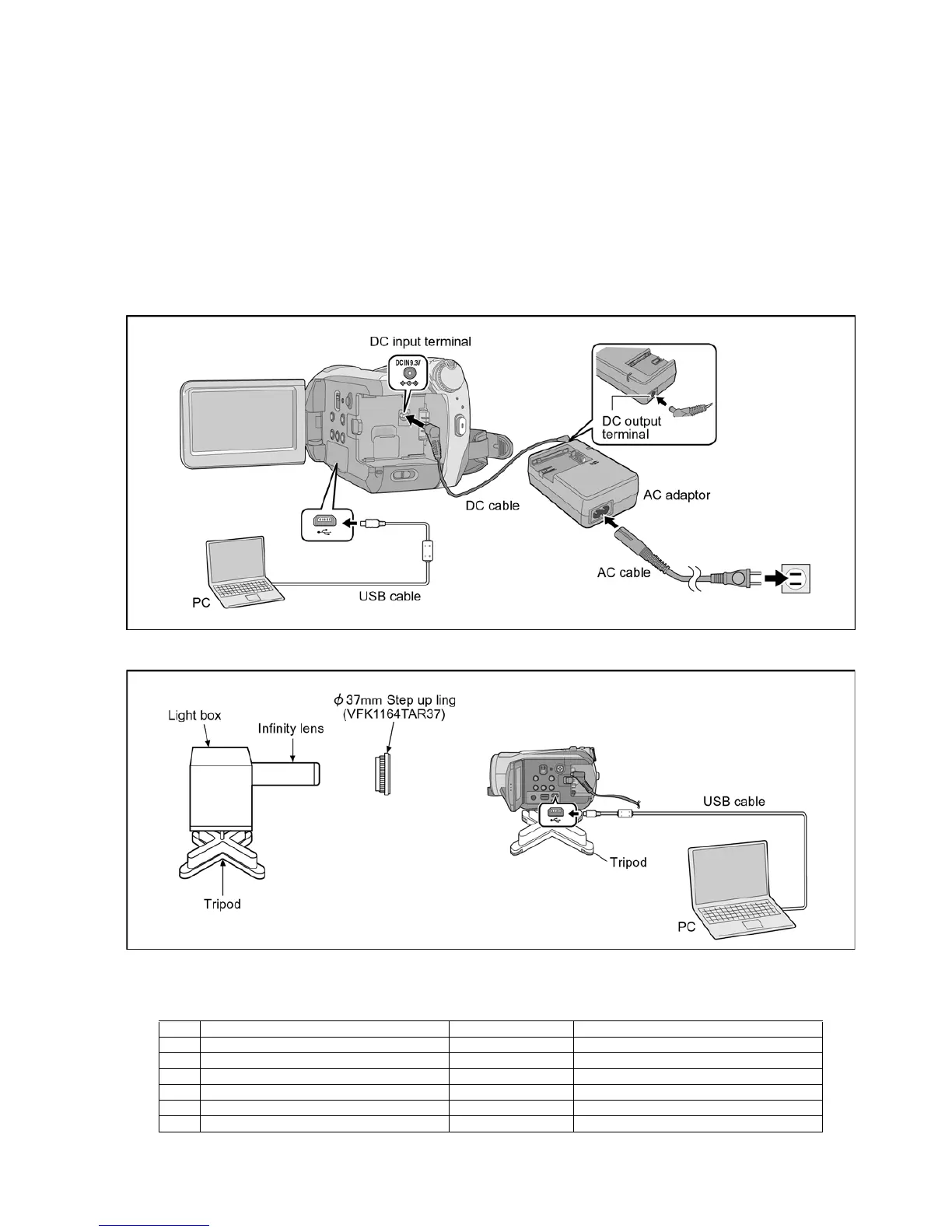

Figure of connection
Figure of image when adjustment
Part Number of jig
• Only a necessary jig mentions it in setup of electric adjustment.
No. Part Name Part Number Remarks
1 PC ------
2 AC Adaptor ------
3 DC Cable ------
4 USB Cable ------
5 37mm Step Up Ling VFK1164TAR37
6 Adjustment Software (Tatsujin) ------
To Next Page
