S3. Block Diagram
S3.1. Overall Block Diagram

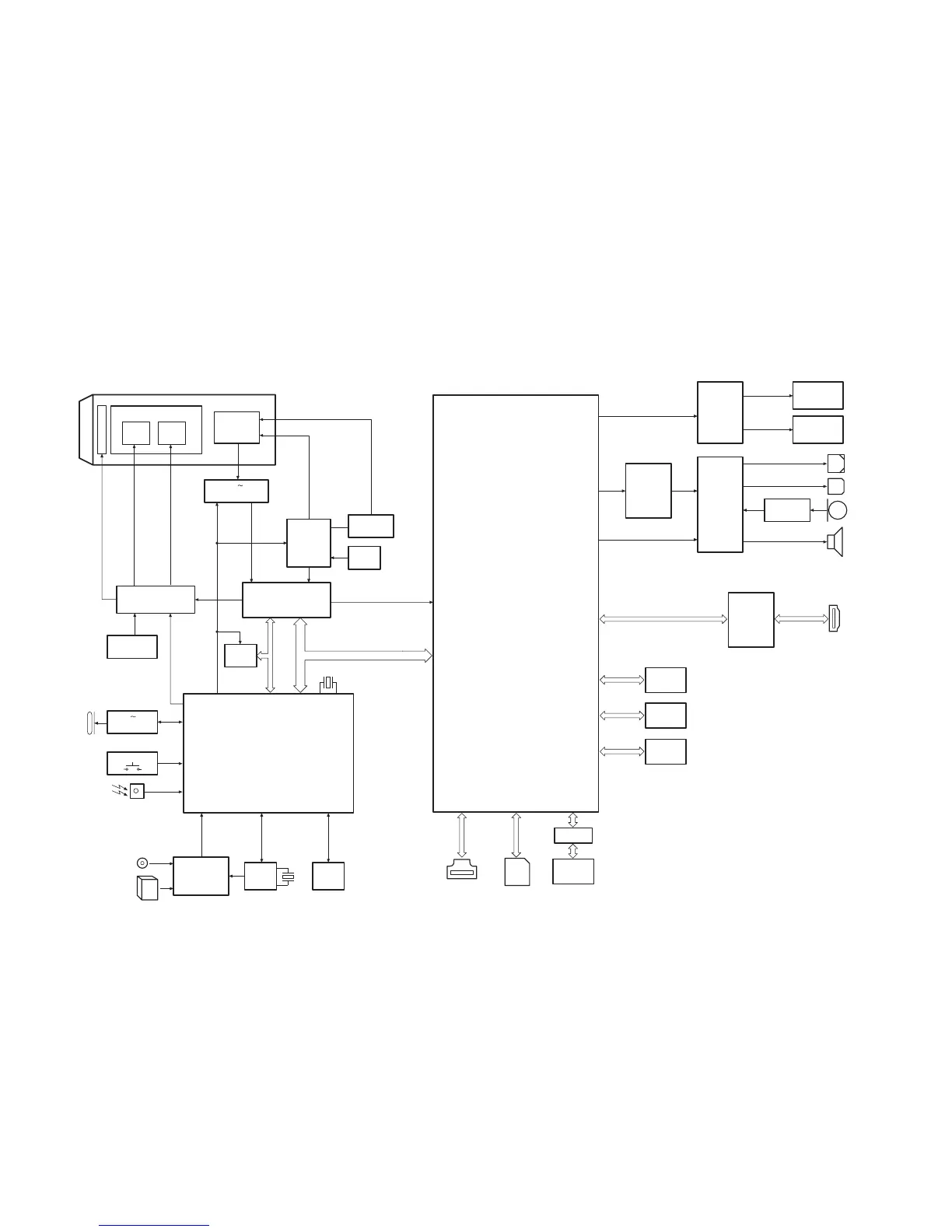

HDC-HS9 OVERALL BLOCK DIAGRAM
IC2006
SYSTEM CONTROL
(CAMERA MICROCOMPUTER)
ZOOM/
FOCUS
MOTOR
IRIS/
OIS
LENS(F1.8 x 10)
3CCD
IC104 106
CDS/PGA &
10bit ADC
IC703
LENS DRIVE
IC101
CG/SSG
IC107
VERTICAL
DRIVER
X306
OSC
(Japan/P/PC/PL: 83.1MHz)
(Other areas : 67.5MHz)
IC301
CAMERA DSP
(RATIS)
IC6101,6401
GYRO SENSOR
IC1001
POWER CIRCUIT
IC2304
RTC
IC2007
EEPROM
IC3401
SDRAM/
512Mbit
SD
CARD
USB TERMINAL
IC3701
AVIO
SPEAKER
IC4801 - 4803
MIC AMP
MIC
A/V OUT
OPERATION
DC JACK
BATTERY
X2001
(13.5MHz)
FLASH
SCOPE LAMP
Q7001 7005,
QR7001,7008
FLASH DRIVE
IC3400
VIDEO
(UNIPHIERXP)
IC3601
VIDEO
ENCODER
IC601
LCD
DRIVER
EVF
COLOR LCD
PANEL
IC3800
HDMI
LSI
HDMI
TERMINAL
DTERMINAL
REMOTE
SENSOR
HDD
IC3402
SDRAM/
512Mbit
IC3403
NAND
FLASH/ROM
512Mbit
IC3200
USB HOST
SHUTTER
IC401
ELVIS
X2301
(32.768KHz)
