3.4. How to Define the Model Suffix (NTSC or PAL model)
There are six kinds of HDC-HS9.
• a) HDC-HS9S
• b) HDC-HS9P
• c) HDC-HS9PC
• d) HDC-HS9E/EB/EG/EP/GC/GN/SG
• e) HDC-HS9EE
• c) HDC-HS9PL/GK
(HDC-HS9S is exclusively Japan domestic model.)
What is the difference is that the “INITIAL SETTING” data which is stored in Flash ROM mounted on Main PCB.
3.4.1. Defining methods:

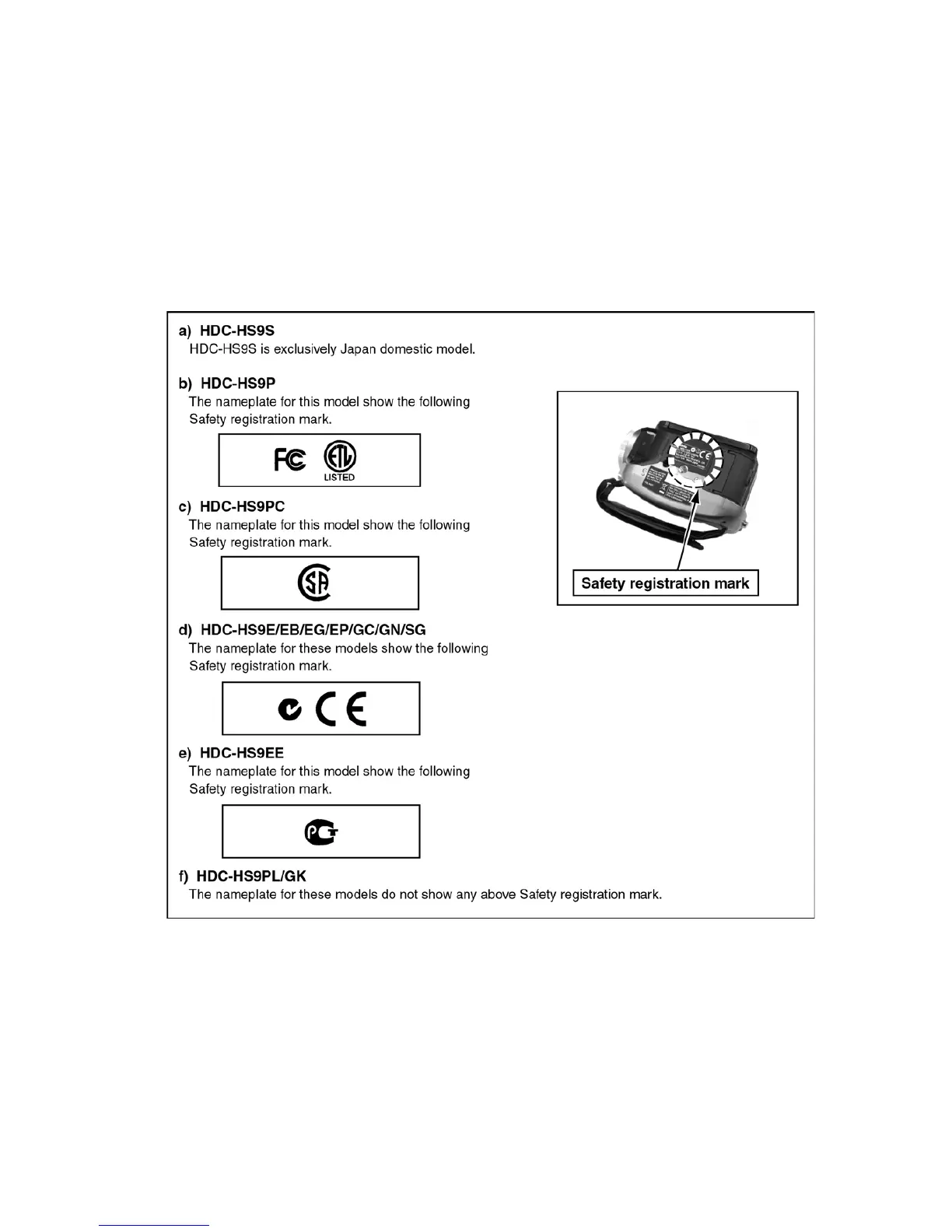

To define the model suffix to be serviced, refer to the rating label which is putted on the bottom side of the Unit.
NOTE:
After replacing the MAIN PCB, be sure to achieve adjustment.
The adjustment instruction is available at “software download” on the “Support Information from NWBG/VDBG-PAVC” web-site
in “TSN system”, together with Maintenance software.
