Parts Identifications
15
Overview

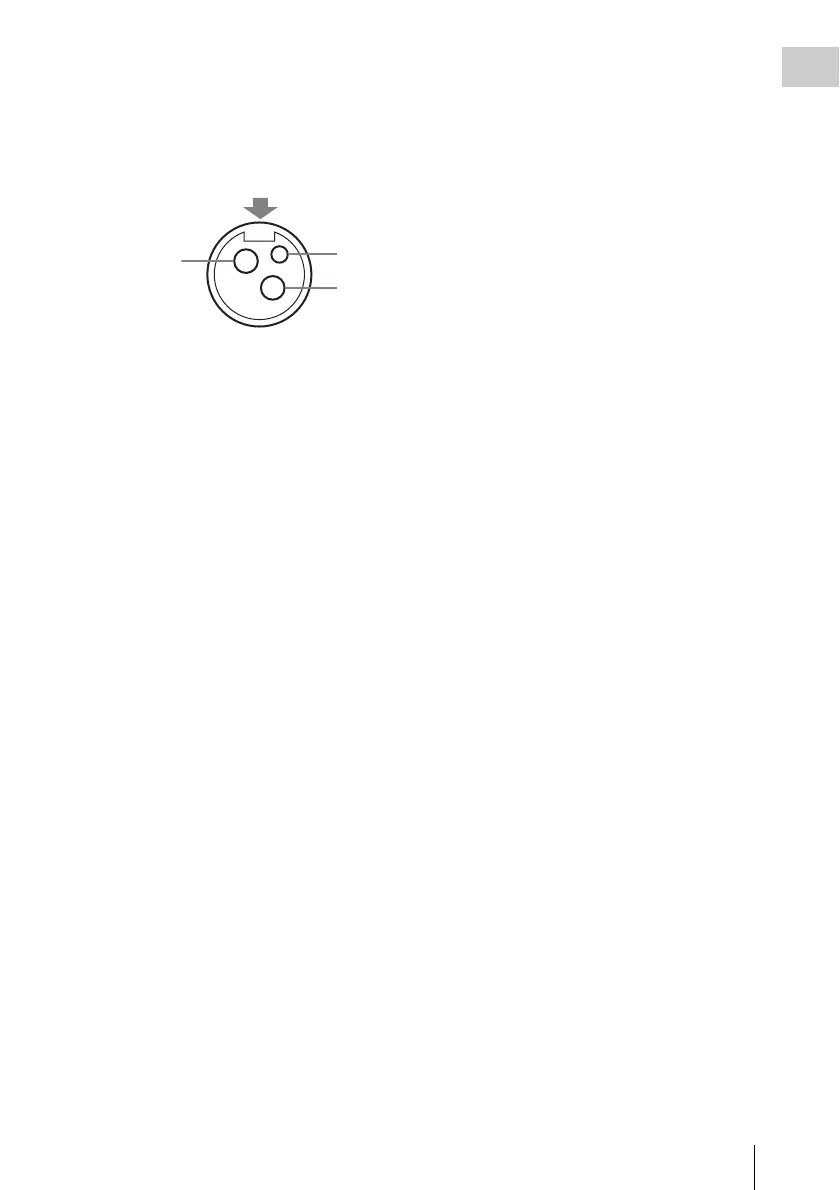

5. DC IN (DC power input) connector
Use a Hosiden connector for connection.
Connector name: TCP8927-53
Cable material: Voltage rating of 60 V or
higher and allowable current of 7 A or higher
is recommended.
6. Service USB port
7. HD SDI OUT (HD SDI output) A, B
connectors (BNC) (page 19)
8. VIDEO OUT (composite video output)
connector (BNC) (page 19)
9. EXT SYNC IN (external synchronization
signal input) connector (BNC) (page 22)
DC 24 V
(1.5 A to 3 A)
NC
GND
