Sony MDS-JA555ES Service Manual

14
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.

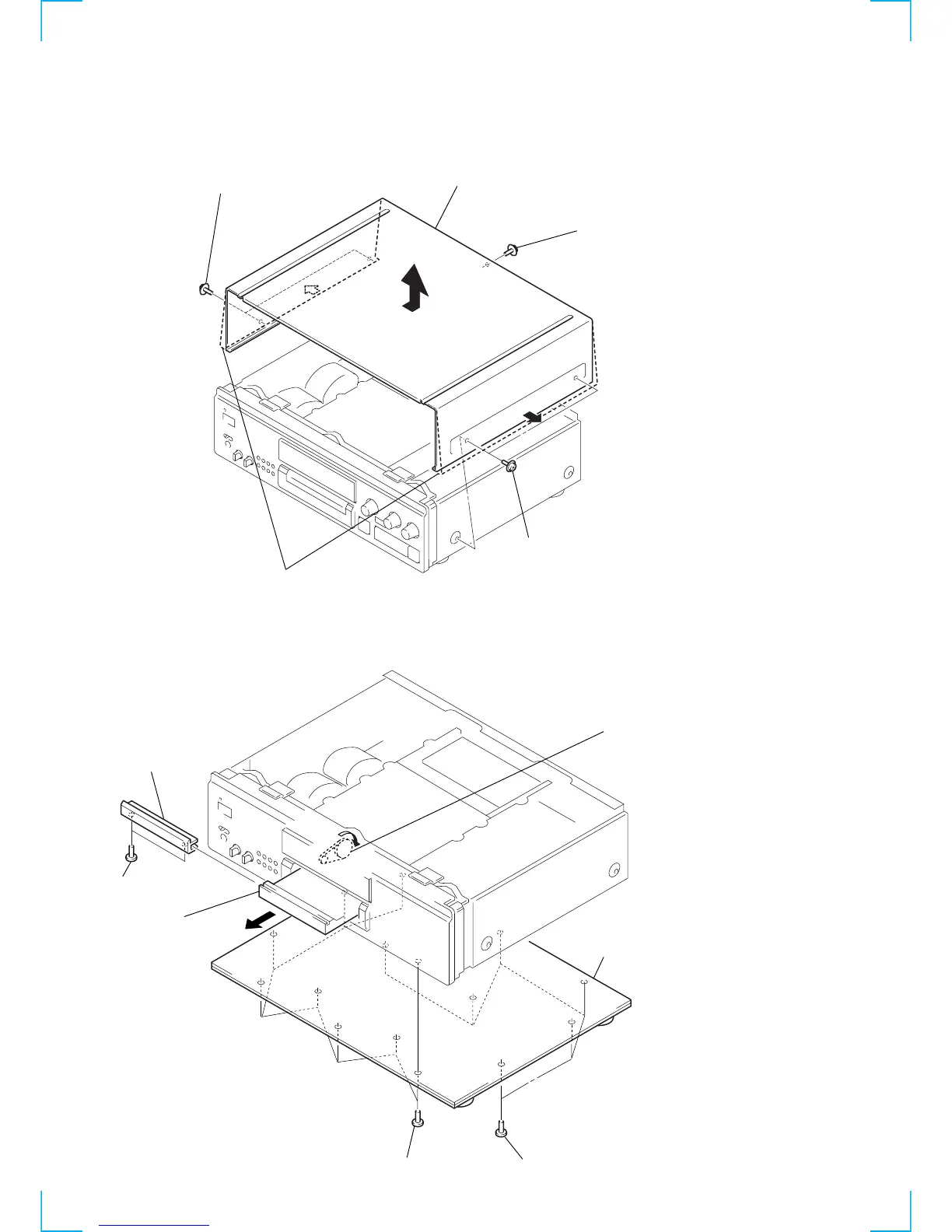

3-1. CASE
3-2. LOADING PANEL
1 Screw (CASE 3 TP2
)
1 Two screws
(CASE 3 TP2)
1 Two screws
(CASE 3 TP2)
3 Remove the upper case
in the direction of the arrow
A .
2 Open the top cover
A
B
A
3
Rotate the pulley gear
in the direction of the arrow
A ,
and open the tray in the directio
n
of the arrow B .
1 Six screws
(3
× 8)
4 Two screws
(M2.6)
2 Bottom plate
5 Loading panel
Tray assembly
1 Eight screws
(3
× 8)
