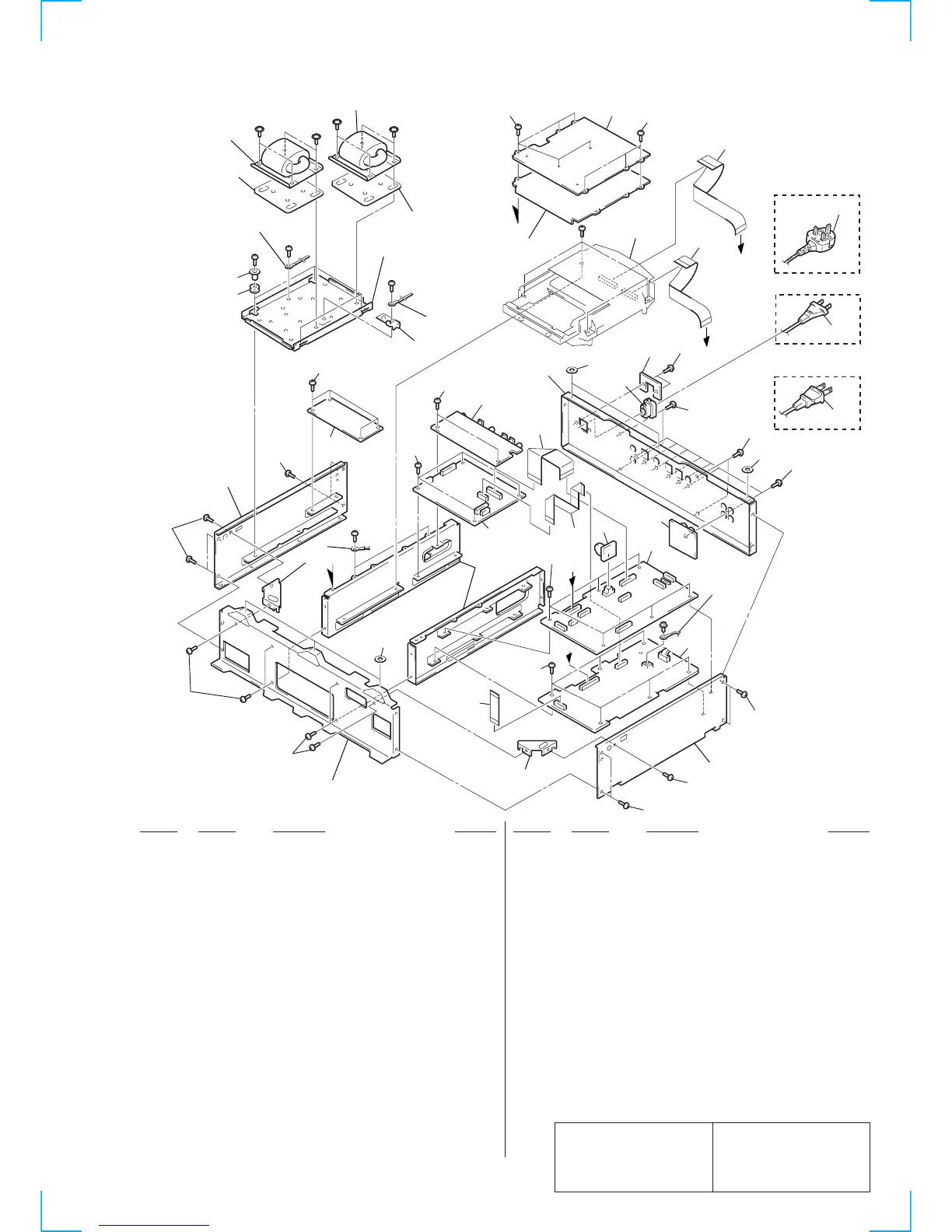

7-3. CHASSIS ASSEMBLY
101 4-929-074-01 SCREW (3 × 8)
102 4-971-099-01 WASHER (P)
103 1-674-321-11 AC BOARD
104 4-974-510-01 SCREW (+BV 3 × 8 CU)
* 105 4-888-798-00 BUSHING, RUBBER
106 4-928-032-01 COLLAR (A)
107 4-214-292-11 COVER (MDM-T)
108 1-790-202-11 WIRE (FLAT TYPE) (23 CORE)
! 109 1-558-568-21 CORD, POWER(AEP)
! 109 1-559-583-21 CORD, POWER(US,CND)
! 109 1-696-586-11 CORD, POWER(UK)
* 110 4-923-873-01 BRACKET, CORD STOPPER
111 3-703-244-00 BUSHING (2104), CORD
112 4-220-300-11 PANEL, BACK(UK,AEP)
112 4-220-300-21 PANEL, BACK(US)
112 4-220-300-31 PANEL, BACK(CND)
113 A-4724-810-A DIG BOARD, COMPLETE(AEP,UK)
113 A-4724-811-A DIG BOARD, COMPLETE(US,CND)
114 1-791-166-11 WIRE(FLAT TYPE) (21 CORE)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
115 A-4724-804-A PW BOARD, COMPLETE(AEP,UK)
115 A-4724-805-A PW BOARD, COMPLETE(US,CND)
* 116 3-703-150-11 CLAMP
117 1-674-324-11 PJ BOARD
118 1-674-325-11 BT BOARD
119 A-4724-798-A AD BOARD, COMPLETE(AEP,UK)
119 A-4724-799-A AD BOARD, COMPLETE(US,CND)
120 A-4724-801-A DA BOARD, COMPLETE(AEP,UK)
120 A-4724-802-A DA BOARD, COMPLETE(US,CND)
121 1-790-205-11 WIRE (FLAT TYPE) (17 CORE)
122 1-791-168-11 WIRE(FLAT TYPE) (27 CORE)
123 1-791-167-11 WIRE(FLAT TYPE) (13 CORE)
! T001 1-433-987-11 TRANSFORMER, POWER(US,CND)
! T001 1-433-989-11 TRANSFORMER, POWER(UK,AEP)
! T002 1-433-988-11 TRANSFORMER, POWER(US,CND)
! T002 1-433-990-11 TRANSFORMER, POWER(UK,AEP)
