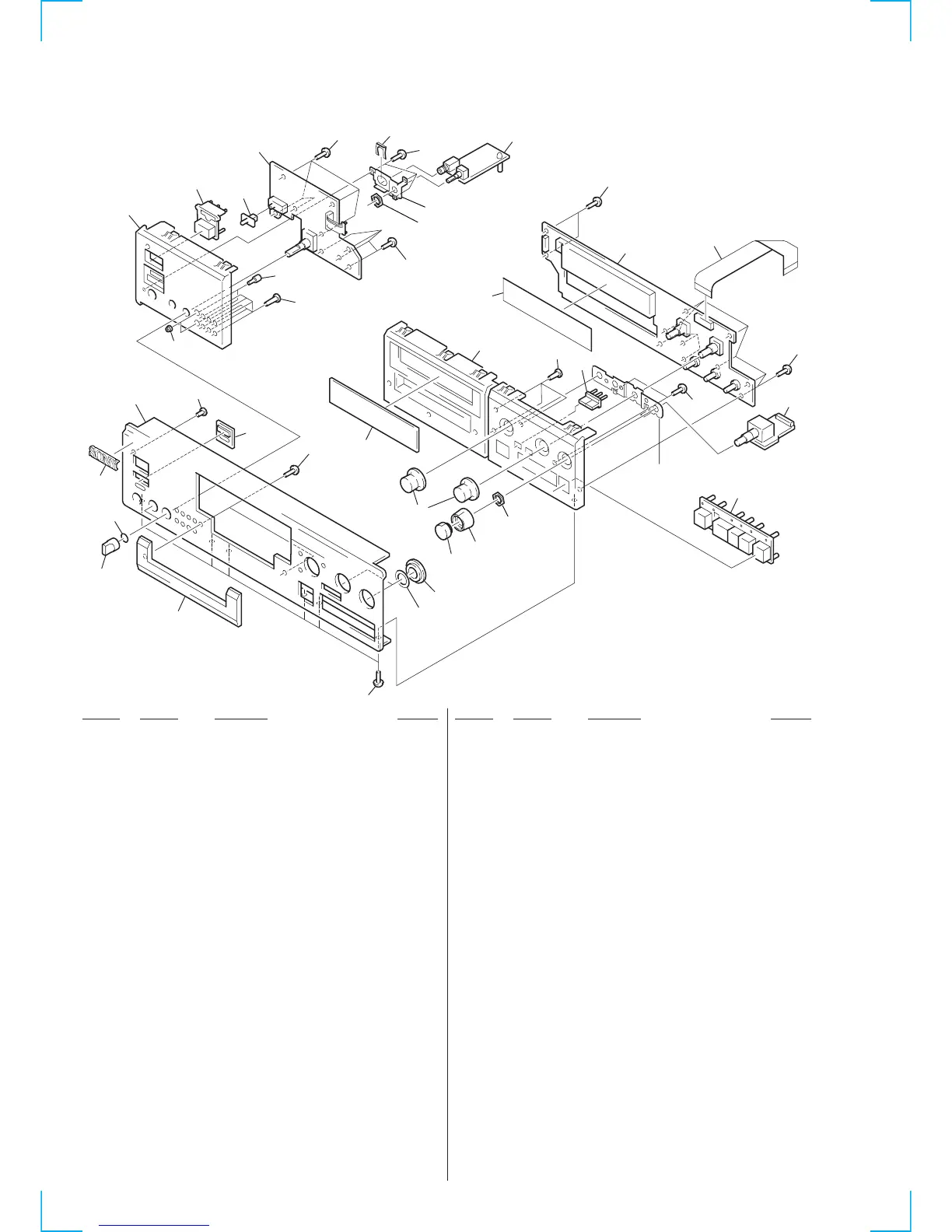

7-2. FRONT PANEL ASSEMBLY
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
51 4-220-295-01 RING (REC), ORNAMENTAL (GOLD)
51 4-220-295-11 RING (REC), ORNAMENTAL (BLACK)
52 4-220-312-01 SHEET (RING), ADHESIVE
53 4-929-074-01 SCREW (3 × 8)
54 4-220-291-01 ESCUTCHEON (MD)(GOLD)
54 4-220-291-11 ESCUTCHEON (MD)(BLACK)
55 4-992-539-01 KNOB (VOL)(GOLD)
55 4-992-539-11 KNOB (VOL)(BLACK)
56 3-354-981-01 SPRING (SUS), RING
57 4-942-568-41 EMBLEM (NO.5), SONY(BLACK)
58 4-220-325-01 PANEL, FRONT (GOLD)
58 4-220-325-11 PANEL, FRONT (BLACK) (AEP,UK)
58 4-220-325-21 PANEL, FRONT (BLACK) (US,CND)
59 4-987-519-01 INDICATOR (D2)
60 4-987-520-01 WINDOW (REMOTE CONTROL)(GOLD)
60 4-987-520-11 WINDOW (REMOTE CONTROL)(BLACK)
61 3-701-428-31 SCREW, +B 2.6 CLAW
62 4-220-711-01 INDICATOR (FILTER)
63 4-220-315-01 BASE (L), PANEL (GOLD)
63 4-220-315-11 BASE (L), PANEL (BLACK)
64 4-998-737-01 BUTTON (POWER)(GOLD)
64 4-998-737-11 BUTTON (POWER)(BLACK)
66 4-220-319-01 BUTTON (MODE)(GOLD)
66 4-220-319-11 BUTTON (MODE)(BLACK)
67 4-971-774-01 KNOB (TIMER)(BLACK)
67 4-971-774-21 KNOB (TIMER)(GOLD)
68 A-4724-792-A PSW BOARD, COMPLETE(AEP,UK)
68 A-4724-793-A PSW BOARD, COMPLETE(US,CND)
69 4-951-620-01 SCREW (2.6 × 8), +BVTP
70 1-674-323-11 HP BOARD
71 A-4724-789-A FL BOARD, COMPLETE (AEP,UK)
71 A-4724-790-A FL BOARD, COMPLETE (US,CND)
72 1-791-547-11 WIRE (FLAT TYPE) (25CORE)
73 1-674-328-11 REC BOARD
74 X-4951-690-1 BUTTON (PLAY) ASSY (GOLD)
74 X-4951-691-1 BUTTON (PLAY) ASSY (BLACK)
75 4-220-321-01 BUTTON (FR)(GOLD)
75 4-220-321-11 BUTTON (FR)(BLACK)
76 4-220-320-01 BUTTON (EDIT)(GOLD)
76 4-220-320-11 BUTTON (EDIT)(BLACK)
77 4-220-316-01 BASE(R), PANEL (GOLD)
77 4-220-316-11 BASE(R), PANEL (BLACK)
78 4-220-323-01 WINDOW (FL)(GOLD)
78 4-220-323-11 WINDOW (FL)(BLACK)
79 4-220-292-01 KNOB (AMS)(GOLD)
79 4-220-292-11 KNOB (AMS)(BLACK)
80 4-220-293-01 KNOB (REC-L)(GOLD)
80 4-220-293-11 KNOB (REC-L)(BLACK)
81 4-220-294-01 KNOB (REC-R)(GOLD)
81 4-220-294-11 KNOB (REC-R)(BLACK)
82 4-220-324-01 FILTER (FL)(UK,AEP)
