SECTION 7
EXPLODED VIEWS
NOTE:
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of this
parts list.
• Abbreviation
CND : Canadian model
71
The components identified by mark ! or
dotted line with mark ! are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
! sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑ ↑
Parts of Color Cabinet’s Color
not supplied
not supplied
not supplied
Front panel section
Chassis sectio
not supplied
not supplied
#1
#1
1
2
3
3
3
2
4
5
6
7
7
7
8
9
6
5
2
10

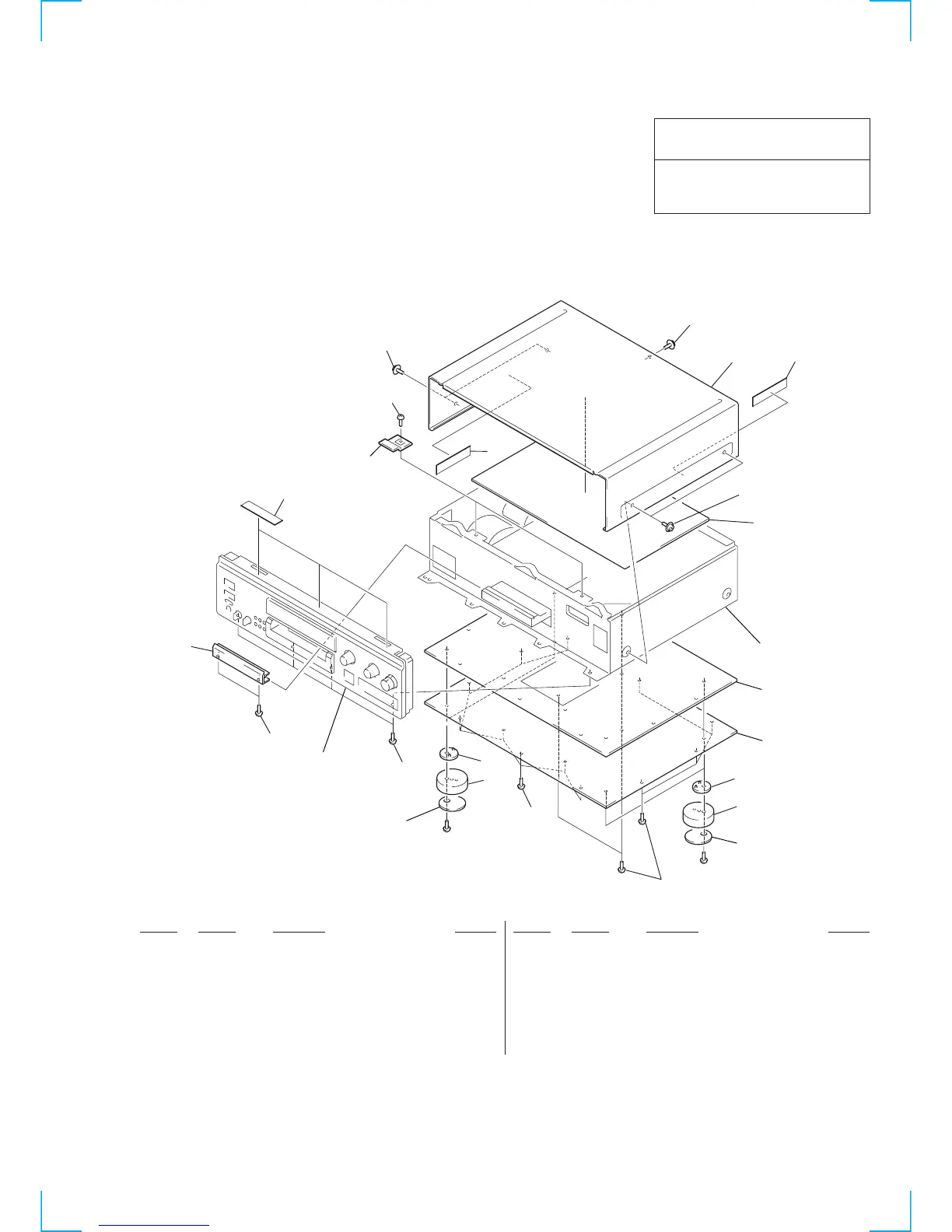

7-1. UPPER CASE ASSEMBLY
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 4-220-301-01 CASE (GOLD)
1 4-220-301-11 CASE (BLACK)
2 4-210-291-01 SCREW (CASE 3 TP2)(BLACK)
2 4-210-291-11 SCREW (CASE 3 TP2)(GOLD)
* 3 4-615-354-01 SPACER
* 4 4-974-014-01 REINFORCEMENT (CASE)
5 4-970-488-01 SPACER (F50180S)
6 4-970-487-01 FOOT(F50180S)
7 4-929-074-01 SCREW (3 × 8)
8 3-946-435-11 SCREW (M2.6)(GOLD)
8 3-946-435-21 SCREW(M2.6)(BLACK)
9 4-220-290-01 PANEL, LOADING (GOLD)
9 4-220-290-11 PANEL, LOADING (BLACK)
10 4-974-510-01 SCREW (+BW 3 × 8 CU)
To Next Page
