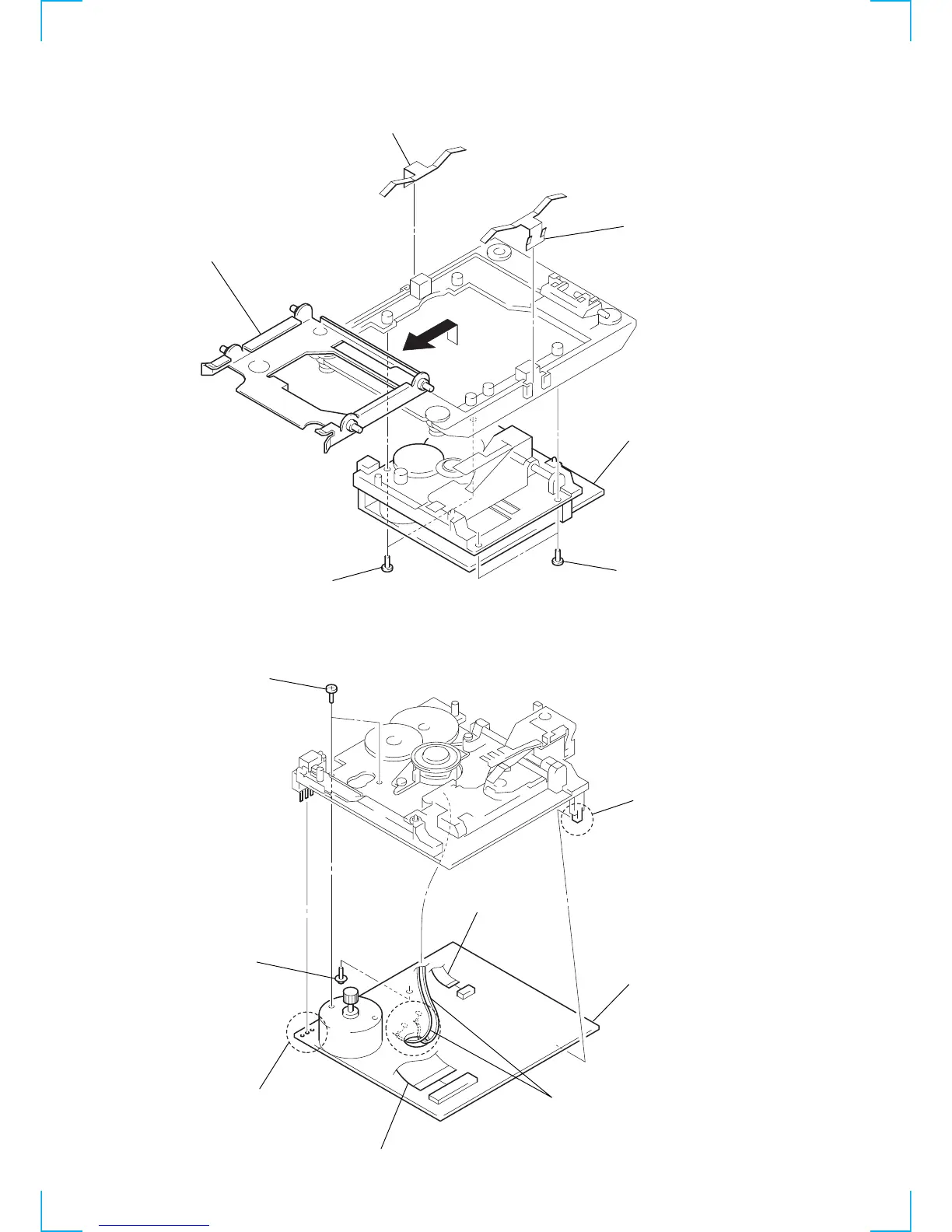

3-8. BASE UNIT (MBU-5C)
3-9. BD BOARD
A
4
Two screws
(BV2.6)
2 Leaf spring (UDR
)
1 Leaf spring (UDL)
4 Two screws
(BV2.6)
5 Base unit
3 Remove the holder assembly
in the direction of the arrow
A .
5 Two precision screws
(+P1.7
× 2.5)
4 Tapping screw
(M1.7)
3 Flexible board
(CN104)
3 Flexible board
(CN101)
7 BD board
6 Claw
2 Remove the soldering
from the push switch.
1 Remove the soldering of
the lead wires from
the spindle motor assembly.
