19

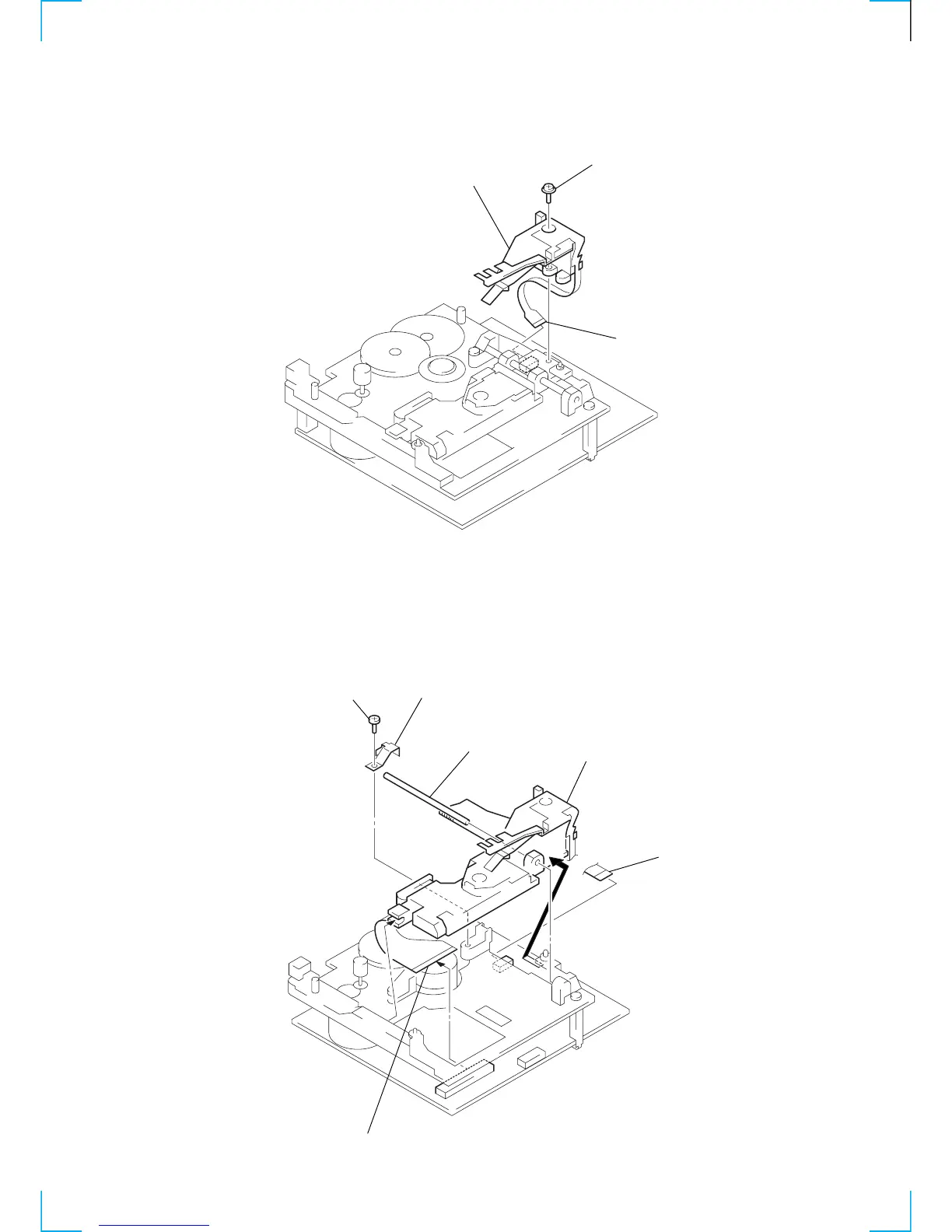

3-10.
O
VER LIGHT HEAD (HR901)
3-11. MINI DISC DEVICE (KMS-260B/J1N)
2
Screw
(P1.7
×
6)
1
Flexible boar
d
(CN104)
3
Over light head
(HR901)
2
Screw +B
(B2
×
8)
1
Flexible board (CN104)
1
Flexible board (CN101)
3
Leaf spring (shaft)
4
Main shaft
5
Remove the mini disc device (KMS-260B/J1N)
in the direction of the arrow
A
.
A
18
20
Table of Contents
Caution
2
Leakage Test
2
Table of Contents
3
Servicing Note
6
General
12
Case
14
Front Panel Assembly
15
Tray Assembly
16
BU Holder Assembly
17
Base Unit (MBU-5C)
18
Test Mode
20
Electrical Adjustments
25
BD Section
34
MAIN Section
35
Display/Power Supply Section
36
Circuit Boards Location
37
Printed Wiring Board BD Section
38
Schematic Diagram BD Switch Section
41
Printed Wiring Board AD Section
42
Printed Wiring Board da Section
46
Printed Wiring Board Digital Section
48
Schematic Diagram Digital Section
50
Printed Wiring Board AC Section
51
Schematic Diagram Power Section
52
Printed Wiring Board Power Section
53
Printed Wiring Board Panel Section
54
Schematic Diagram Panel Section
55
IC Block Diagrams
57
IC Pin Function Description
62
Exploded Views
71
Front Panel Assembly
72
Chassis Assembly
73
Mechanism Deck Assembly-1 (MDM-6A)
74
Mechanism Deck Assembly-2 (MDM-6A)
75
Base Unit (MBU-5C)
76
Electrical Parts List
77
