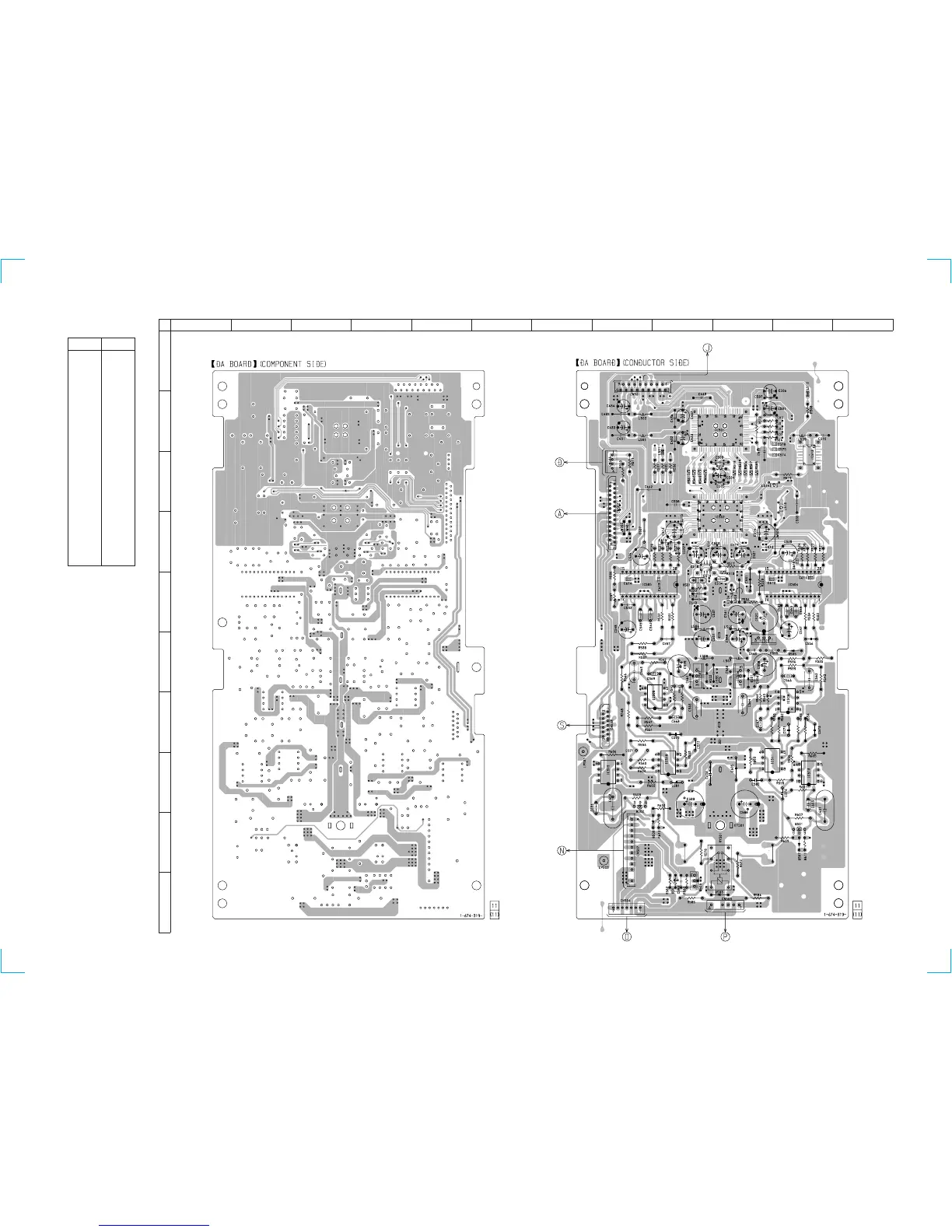

6-12. PRINTED WIRING BOARD DA SECTION • Refer to page 37 for Note on Printed Wiring Boards. • Refer to page 37 for Circuit Board Location.
Ref. No. Location
D501 F-10
D502 F-9
D503 J-10
D505 F-11
D507 I-11
D508 I-9
IC501 B-10
IC502 D-10
IC503 F-10
IC504 E-11
IC505 E-8
IC506 F-10
IC507 F-9
IC508 G-11
IC509 G-9
IC510 H-9
IC511 H-11
IC512 C-11
IC513 H-11
IC514 E-9
IC515 H-8
Q501 I-11
Q502 H-8
Q505 J-9
• Semiconductor
Location
(Page 42)
(Page 49)
(Page 49)
(Page 53)
(Page 53)
(Page 38)
(Page 49)
JW503
JW504
12
A
B
C
D
E
F
G
H
I
J
3456789101112
16
